Kubota D1803-CR-TI-E4-BG
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

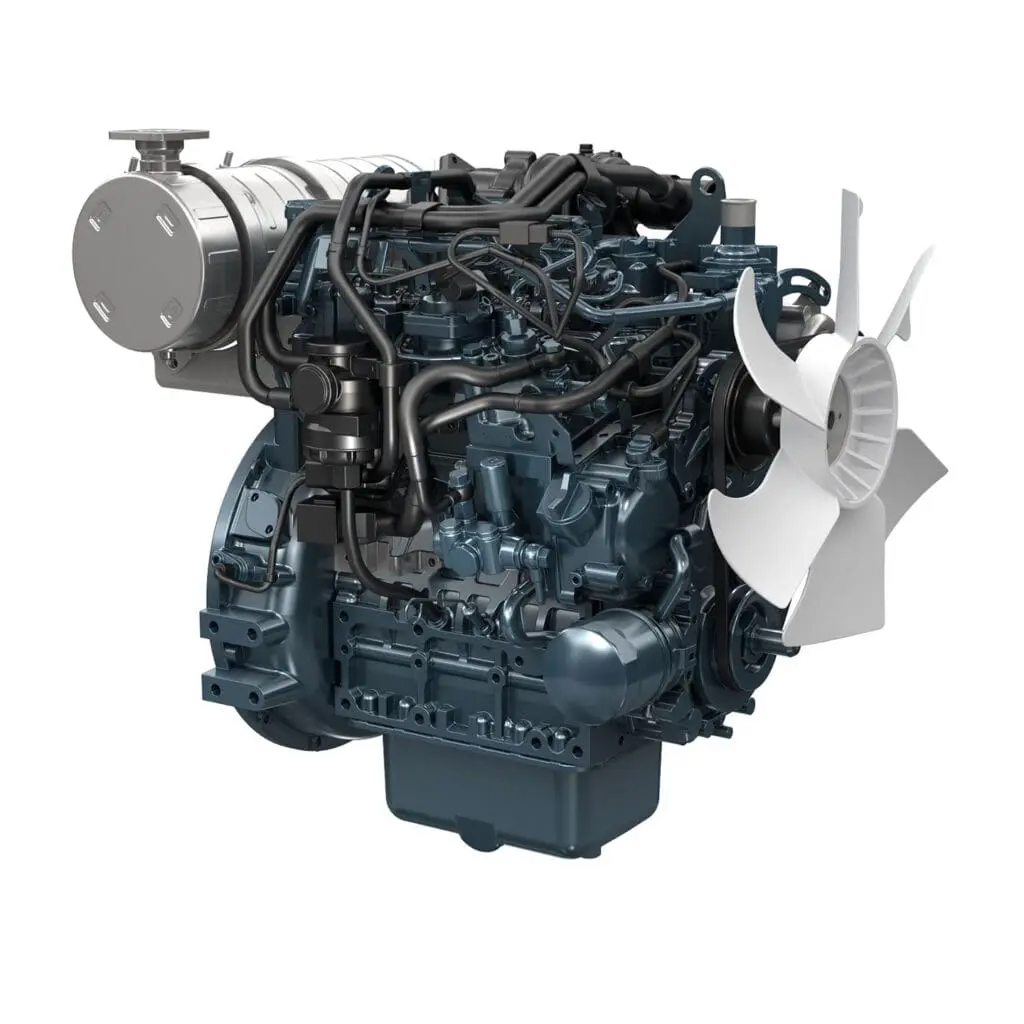

The Kubota D1803-CR-TI-E4-BG is a 3-cylinder generator diesel engine from the Kubota BG Series. This vertical water-cooled 4-stroke diesel engine combines Common Rail technology, turbocharging with aftercooler and reliable performance for generator applications.
With net standby power of 24.2 kW @ 1800 rpm and net continuous power of 20.2 kW @ 1800 rpm, the D1803-CR-TI-E4-BG is suitable for professional generator setups where stability, efficiency and reliability are important. The engine uses direct injection and a Common Rail fuel system for accurate combustion and consistent performance.
The Kubota D1803-CR-TI-E4-BG meets EPA/CARB Tier 4 emissions standards and is equipped with DOC aftertreatment. The compact design and generator-oriented design make this engine suitable for applications where reliable power is key.
Kubota D1803-CR-TI-E4-BG
- Developed for generator applications
- EPA/CARB Tier 4 emissions standard
- Turbocharged + Turbo After Cooler
- Common Rail fuel system
- Direct injection
- DOC post-treatment
- Net standby power of 24.2 kW
- Net continuous power of 20.2 kW
- Vertical water-cooled 4-stroke diesel engine
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | D1803-CR-TI-E4-BG |
| Application | Generator |
| Fuel | Diesel |
| Power *1 | 24.2 kW @ 1800 rpm |
| Cylinders | 3 |
| Emission | EPA/CARB Tier 4 |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 87.0 x 102.4 mm (3.43 x 4.031 in) |
| Displacement L (cu.in) | 1.826 L (111.4 cu.in) |
| Aspiration | Turbocharged + Turbo After Cooler |
| Aftertreatment | DOC |
| Combustion system | Direct injection |
| Fuel system | Common Rail system |
| Length x width x height mm (in) *2 | 574 x 536 x 728 mm (22.6 x 21.1 x 28.7 in) |
| Length x width x height mm (in) *3 | 746 x 536 x 745 mm (29.4 x 21.1 x 29.3 in) |
| Dry weight kg (lbs) *3 | 213 kg (469 lbs) |
| Series | Kubota BG Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
