Kubota Z482-E4
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

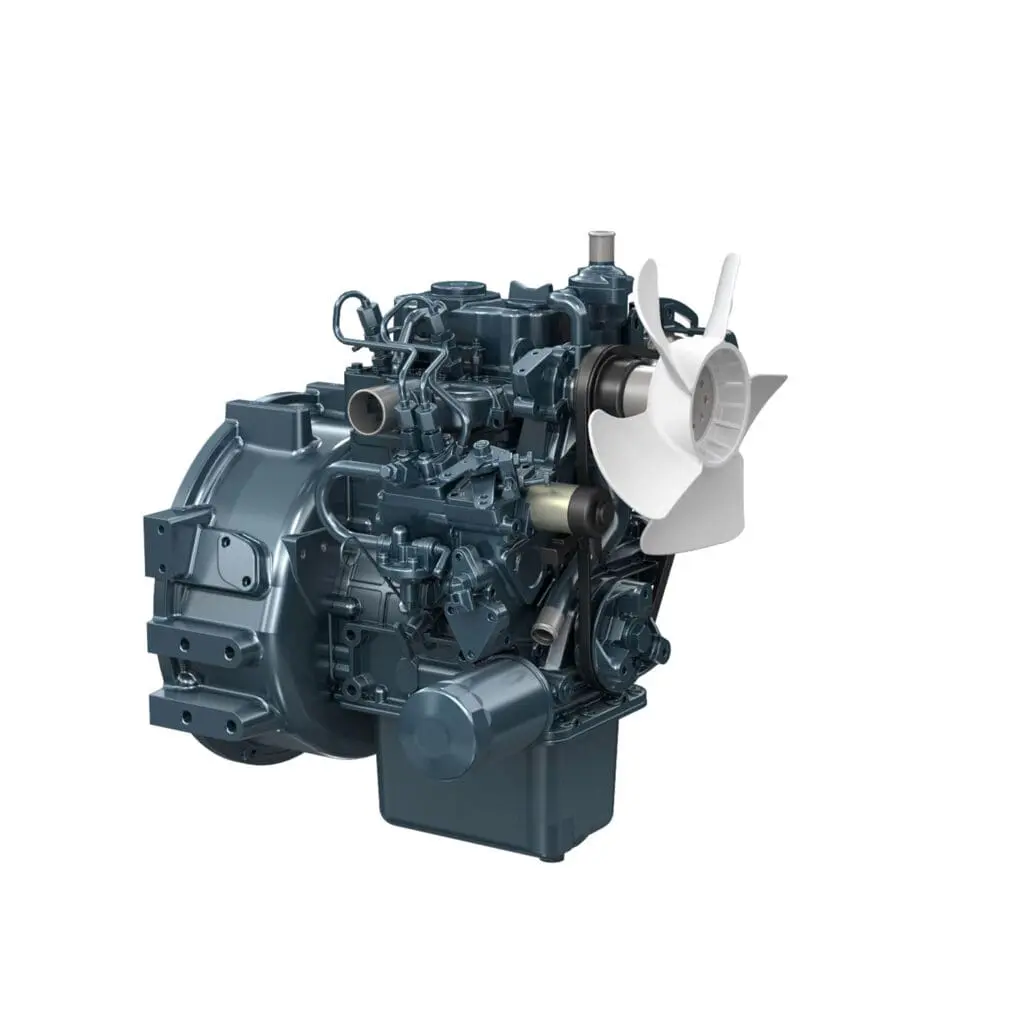

The Kubota Z482-E4 is a compact 2-cylinder diesel engine for Kubota BG Series generators. This vertical water-cooled 4-stroke diesel engine was developed for generator applications where reliability, compact installation and low emissions are important.
With standby power of 8.9 kW @ 3600 rpm and continuous power of 8.1 kW @ 3600 rpm, the Z482-E4 delivers stable performance for generator setups. The engine has a displacement of 0.479 L, is naturally aspirated and uses indirect injection with an inline fuel pump.
The Kubota Z482-E4 meets EPA/CARB Tier 4 and is Stage V ready. The engine requires no aftertreatment, keeping it compact and easily applicable within generator setups.
Kubota Z482-E4
- Developed for generator applications
- Compact 2-cylinder diesel engine
- EPA/CARB Tier 4 and Stage V ready
- No post-treatment required
- Naturally aspirated engine
- Indirect injection for reliable combustion
- Inline fuel pump for stable performance
- Compact size for easy integration
- Vertical water-cooled 4-stroke diesel engine
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | Z482-E4 |
| Application | Generator |
| Fuel | Diesel |
| Power *1 | 8.9 kW @ 3600 rpm |
| Cylinders | 2 |
| Emission | EPA/CARB Tier 4 + Stage V ready |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 67.0 x 68.0 mm (2.64 x 2.68 in) |
| Displacement L (cu.in) | 0.479 L (29.23 cu.in) |
| Aspiration | Naturally aspirated |
| Aftertreatment | No |
| Combustion system | Indirect injection |
| Fuel system | Inline fuel pump |
| Length x width x height mm (in) *2 | 413 x 386 x 564 mm (16.3 x 15.2 x 22.2 in) |
| Dry weight kg (lbs) *3 | 78 kg (172 lbs) |
| Series | Kubota BG Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
