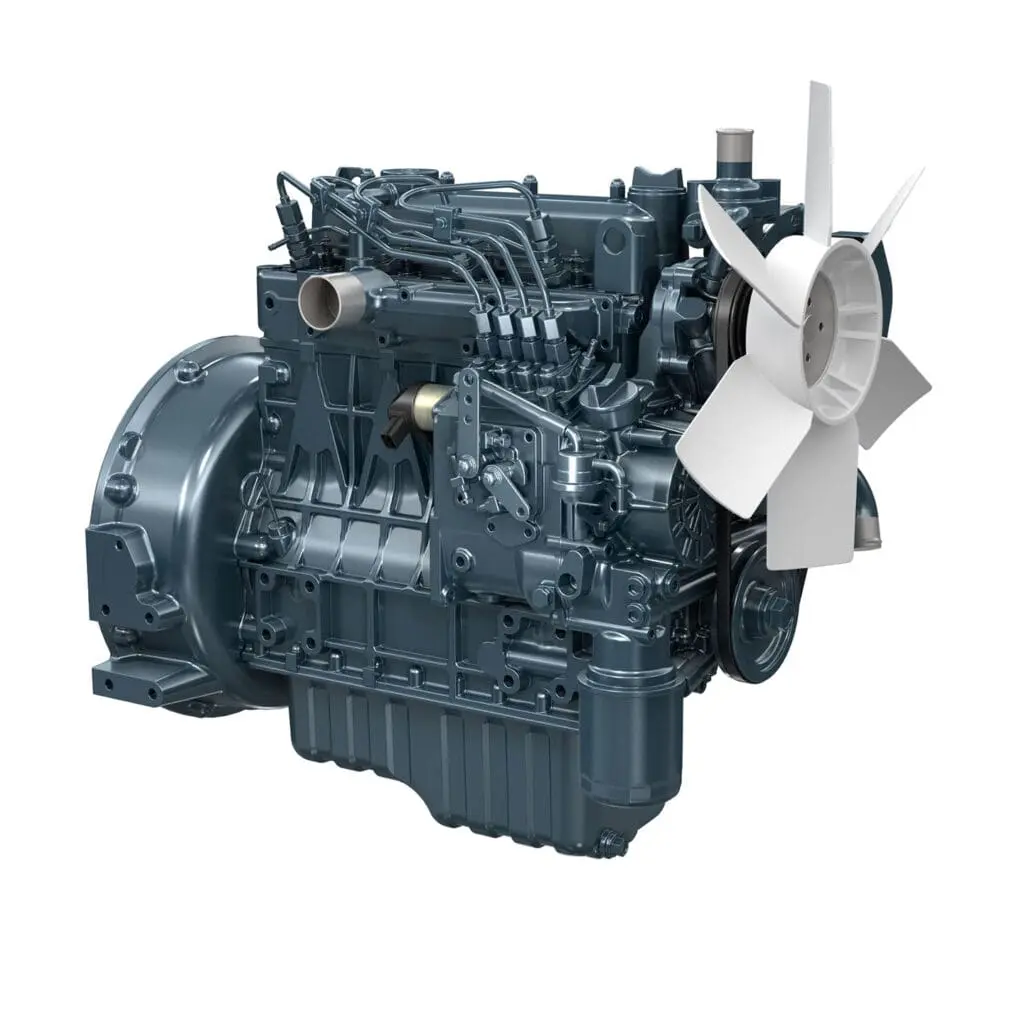

Kubota V1505-E4-BG
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers
The Kubota V1505-E4-BG is a reliable 4-cylinder diesel engine for Kubota BG Series generators. This vertical water-cooled 4-stroke diesel engine is designed for generator applications where stable performance, low emissions and compact installation are important.
With a net standby power of 15.1 kW @ 1800 rpm and a net continuous power of 13.4 kW @ 1800 rpm, the V1505-E4-BG delivers reliable performance for professional generator setups. The engine has a displacement of 1.498 L, is naturally aspirated and uses indirect injection with an inline fuel pump.
The Kubota V1505-E4-BG meets EPA/CARB Tier 4 and EU Stage V emission standards without aftertreatment. This makes this generator diesel engine suitable for applications where both European and U.S. emission requirements are relevant.
Kubota V1505-E4-BG
- Complies with EPA/CARB Tier 4 and EU Stage V
- Developed for generator applications
- Reliable 4-cylinder diesel engine
- Net standby power of 15.1 kW
- Net continuous power of 13.4 kW
- No post-treatment required
- Indirect injection for reliable combustion
- Inline fuel pump for stable performance
- Compact generator design
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | V1505-E4-BG |
| Application | Generator |
| Fuel | Diesel |
| Power *1 | 15.1 kW @ 1800 rpm |
| Cylinders | 4 |
| Emission | EPA/CARB Tier 4 + EU Stage V |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 78.0 x 78.4 mm (3.07 x 3.09 in) |
| Displacement L (cu.in) | 1.498 L (91.41 cu.in) |
| Aspiration | Naturally aspirated |
| Aftertreatment | No |
| Combustion system | Indirect injection |
| Fuel system | Inline fuel pump |
| Length x width x height mm (in) *2 | 601 x 391 x 607 mm (23.7 x 15.4 x 23.9 in) |
| Dry weight kg (lbs) *3 | 127 kg (280 lbs) |
| Series | Kubota WG Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
