Kubota V2403-CR-TE5-BG
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

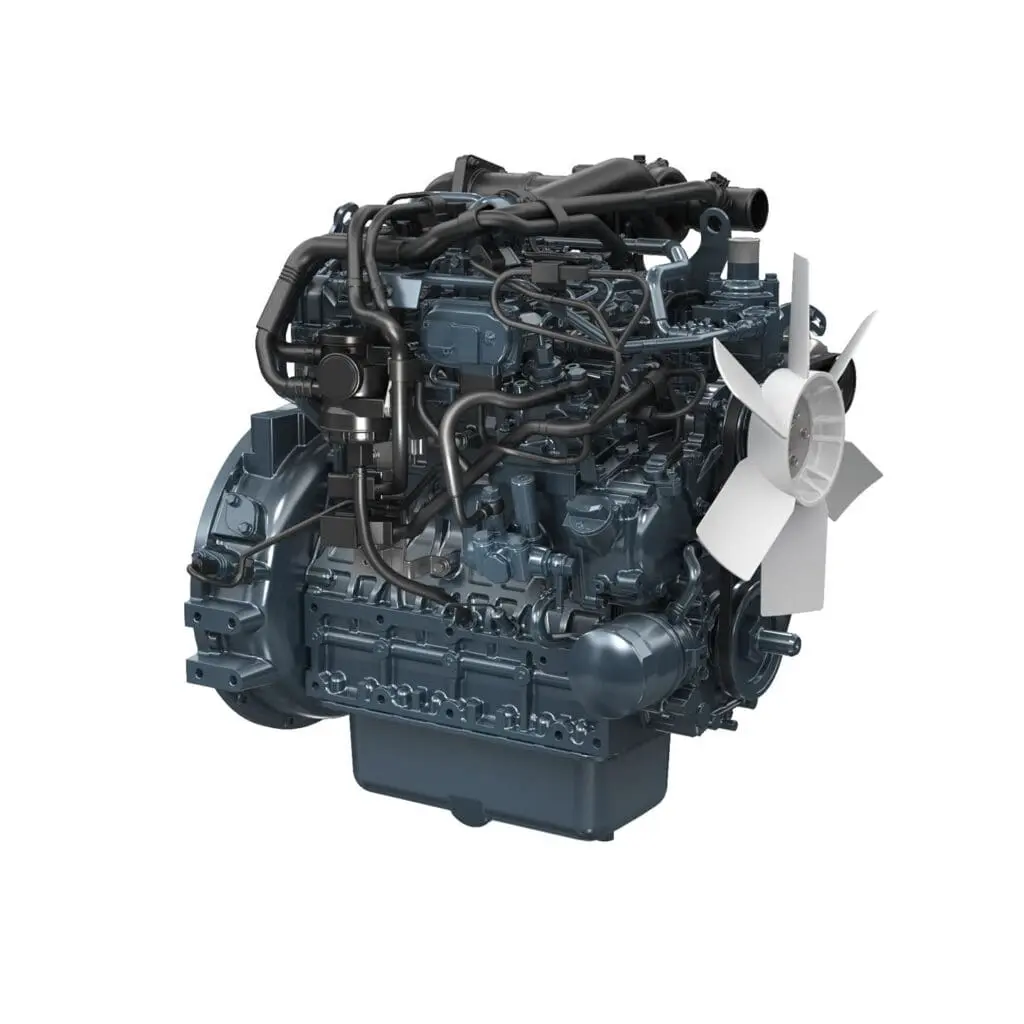

The Kubota V2403-CR-TE5-BG is a powerful 4-cylinder diesel engine for Kubota 03 Series generators. This vertical water-cooled 4-stroke DI diesel engine is designed for generator applications where low emissions, efficient fuel consumption and reliable performance are important.
With net standby power of 28.1 kW @ 1500 rpm and net continuous power of 25.5 kW @ 1500 rpm, the V2403-CR-TE5-BG delivers stable performance for professional generator setups. Thanks to the Common Rail fuel system, combustion is precisely controlled, contributing to low fuel consumption.
The Kubota V2403-CR-TE5-BG meets EU Stage V emissions standards and is equipped with DOC + DPF aftertreatment. Kubota’s DPF technology supports automatic regeneration at low speeds, reducing maintenance and downtime.
Kubota V2403-CR-TE5-BG
- Meets EU Stage V emissions standards
- Developed for generator applications
- Common Rail fuel system for low fuel consumption
- DOC + DPF aftertreatment integrated
- Automatic DPF regeneration at low rpm
- Net standby power of 28.1 kW
- Net continuous power of 25.5 kW
- Turbocharged for powerful performance
- Vertical water-cooled 4-stroke DI diesel engine
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | V2403-CR-TE5-BG |
| Application | Generator |
| Fuel | Diesel |
| Power *1 | 28.1 kW @ 1500 rpm |
| Cylinders | 4 |
| Emission | EU Stage V |
| Type | Vertical water-cooled 4-stroke DI diesel engine |
| Bore and stroke mm (in) | 87.0 x 102.4 mm (3.43 x 4.031 in) |
| Displacement L (cu.in) | 2.434 L (148.5 cu.in) |
| Aspiration | Turbocharged |
| Aftertreatment | DOC + DPF |
| Combustion system | Direct injection |
| Fuel system | Common Rail system |
| Length x width x height mm (in) *2 | 689 x 552 x 762 mm (27.1 x 21.7 x 30.0 in) |
| Dry weight kg (lbs) *3 | 241 kg (531 lbs) |
| Series | Kubota 03 Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
