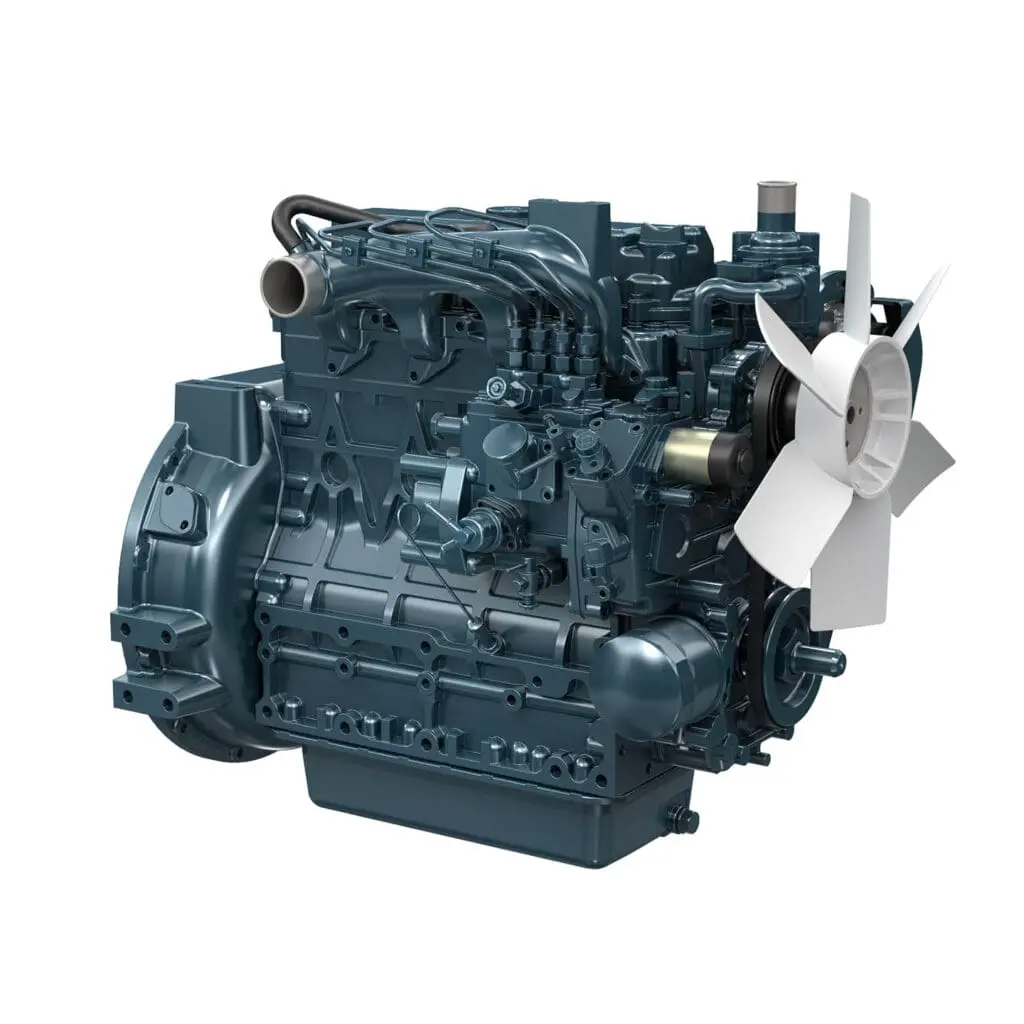

Kubota V2203-M-E4-BG2
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers
The Kubota V2203-M-E4-BG2 is a reliable 4-cylinder diesel engine for Kubota 03 Series generators. This vertical water-cooled 4-stroke IDI diesel engine is designed for generator applications where durability, stable performance and ease of maintenance are important.
With a grid standby power of 17.0 kW @ 1500 rpm and a grid continuous power of 15.5 kW @ 1500 rpm, the V2203-M-E4-BG2 delivers reliable performance for professional generator setups. The motor boasts practical features such as a built-in solenoid, low fan position and maintenance-friendly single-side serviceability.
The Kubota V2203-M-E4-BG2 meets EU Stage V emission standards and requires no aftertreatment. Thanks to Kubota’s E-TVCS combustion technology, lower particulate matter levels are achieved, while the robust construction ensures reliable performance and long life.
Kubota V2203-M-E4-BG2
- Meets EU Stage V emissions standards
- Developed for generator applications
- Reliable 4-cylinder diesel engine
- No post-treatment required
- E-TVCS technology for lower particulate emissions
- Vertical water-cooled 4-stroke IDI diesel engine
- Built-in solenoid
- Low fan position
- Maintenance-friendly single-side serviceability
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | V2203-M-E4-BG2 |
| Application | Generator |
| Fuel | Diesel |
| Power *1 | 17.0 kW @ 1500 rpm |
| Cylinders | 4 |
| Emission | EU Stage V |
| Type | Vertical water-cooled 4-stroke IDI diesel engine |
| Bore and stroke mm (in) | 87.0 x 92.4 mm (3.43 x 3.64 in) |
| Displacement L (cu.in) | 2.197 L (134.1 cu.in) |
| Aspiration | Naturally aspirated |
| Aftertreatment | No |
| Combustion system | Indirect injection |
| Fuel system | Inline fuel pump |
| Length x width x height mm (in) *2 | 669 x 486 x 631 mm (26.3 x 19.1 x 24.9 in) |
| Dry weight kg (lbs) *3 | 200 kg (441 lbs) |
| Series | Kubota 03 Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
