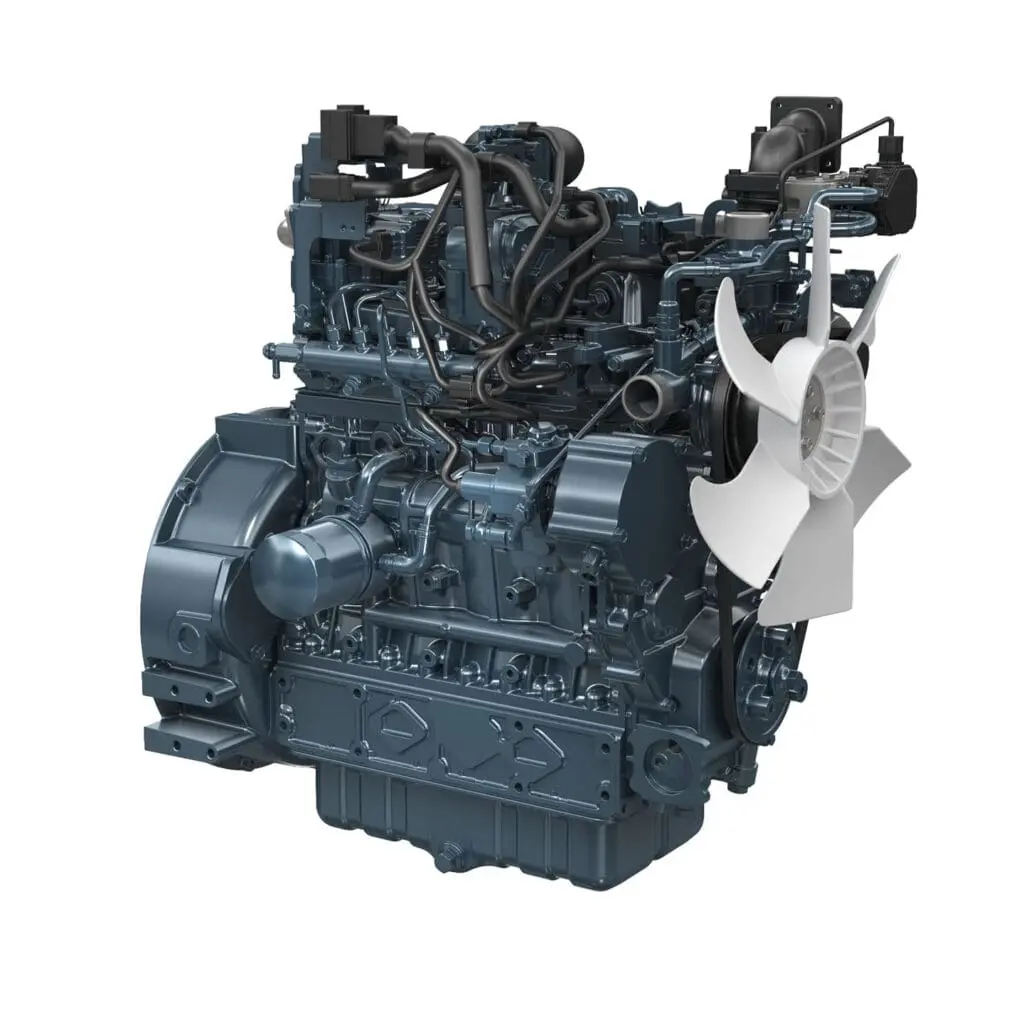

Kubota V3800-CR-TE5-BG
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers
The Kubota V3800-CR-TE5-BG is a powerful 4-cylinder diesel engine for Kubota V3 Series generators. This vertical water-cooled 4-stroke DI diesel engine is designed for generator applications where reliable power, low emissions and efficient fuel consumption are important.
With net standby power of 42.8 kW @ 1500 rpm and net continuous power of 38.9 kW @ 1500 rpm, the V3800-CR-TE5-BG delivers stable performance for professional generator setups. The Common Rail fuel system provides precise fuel injection and contributes to low fuel consumption.
The Kubota V3800-CR-TE5-BG meets EU Stage V emissions standards and is equipped with DOC + DPF aftertreatment. DPF technology supports automatic regeneration at low engine speeds and helps reduce maintenance and downtime.
Kubota V3800-CR-TE5-BG
- Meets EU Stage V emissions standards
- Developed for generator applications
- Common Rail fuel system for low fuel consumption
- DOC + DPF aftertreatment integrated
- Automatic DPF regeneration at low rpm
- Net standby power of 42.8 kW
- Net continuous power of 38.9 kW
- Turbocharged for powerful performance
- Vertical water-cooled 4-stroke DI diesel engine
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | V3800-CR-TE5-BG |
| Application | Generator |
| Fuel | Diesel |
| Power *1 | 42.8 kW @ 1500 rpm |
| Cylinders | 4 |
| Emission | EU Stage V |
| Type | Vertical water-cooled 4-stroke DI diesel engine |
| Bore and stroke mm (in) | 100.0 x 120.0 mm (3.937 x 4.724 in) |
| Displacement L (cu.in) | 3.769 L (230.0 cu.in) |
| Aspiration | Turbocharged |
| Aftertreatment | DOC + DPF |
| Combustion system | Direct injection |
| Fuel system | Common Rail system |
| Length x width x height mm (in) *2 | 738 x 581 x 855 mm (29.1 x 22.9 x 33.7 in) |
| Dry weight kg (lbs) *3 | 300 kg (661 lbs) |
| Series | Kubota V3 Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
