Kubota D1105-E4B
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

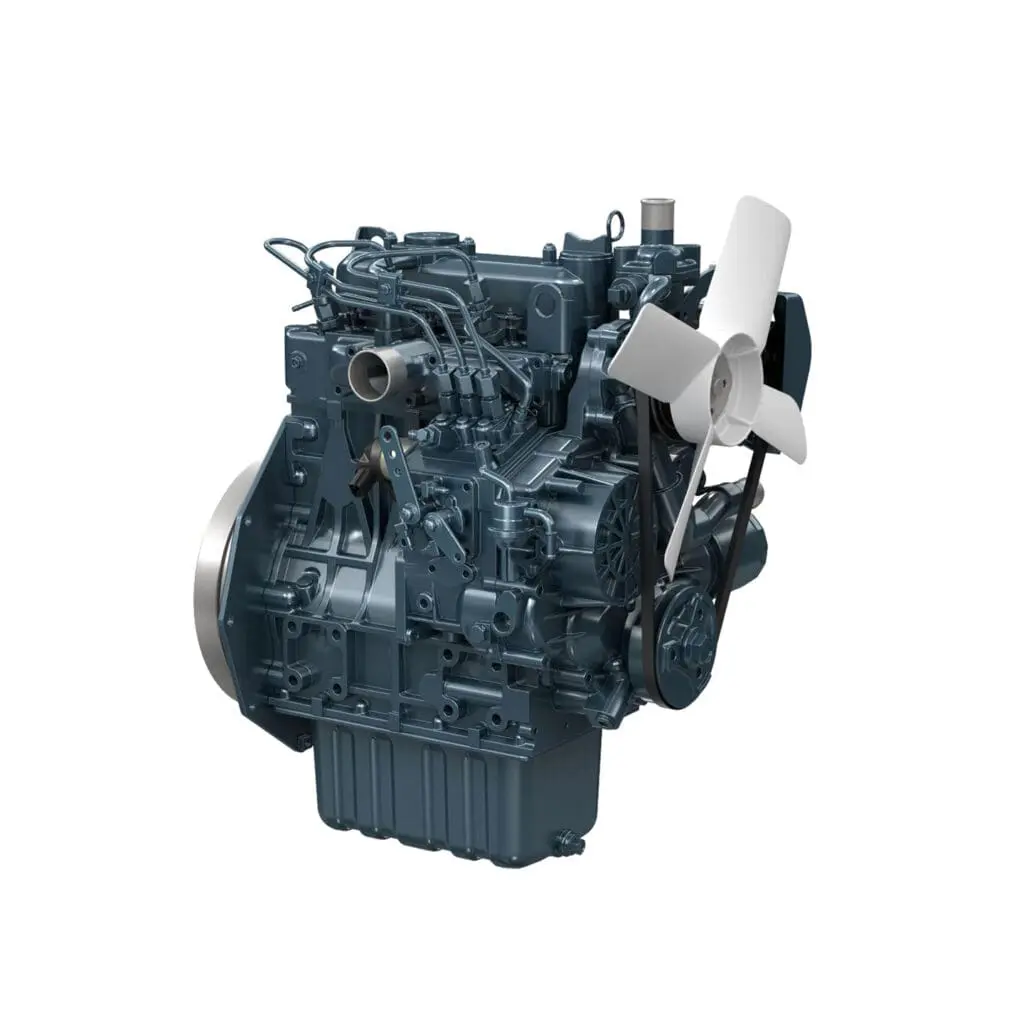

The Kubota D1105-E4B is a powerful and reliable 3-cylinder industrial diesel engine from the popular Kubota 05 Series. This liquid-cooled 4-stroke diesel engine is known for its durability, low emissions and high performance within a compact design.
With an output of 18.5 kW at 3,000 rpm and maximum torque of 71.5 Nm, the D1105-E4B delivers excellent performance for a variety of industrial applications. Thanks to Kubota’s improved Three Vortex Combustion System (E-TVCS) combustion technology, the engine benefits from efficient combustion, lower particulate emissions and low fuel consumption.
The Kubota D1105-E4B meets EPA/CARB Tier 4, EU Stage V and India BS V emissions standards without additional aftertreatment. In addition, the engine retains the same footprint and mounting points as previous generations, keeping upgrades and integration simple.
Kubota D1105-E4B
- Meets EU Stage V emissions standards
- Suppresses black smoke on load and acceleration
- Approximately 5% lower fuel consumption
- CAN communication for smart control
- Compact and powerful 3-cylinder diesel engine
- No post-treatment required
- High torque at low speeds
- Quiet and efficient design
- Compatible with existing D902 setups
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | D1105-E4B |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 18.5 kW @ 3600 rpm |
| Maximum torque / speed *1 | 56.1 Nm @ 2600 rpm |
| Cylinders | 3 |
| Emission | EPA/CARB Tier 4 + EU Stage V + China Non-Road IV |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 78.0 x 78.4 mm (3.07 x 3.09 in) |
| Displacement L (cu.in) | 1.123 L (68.53 cu.in) |
| Aspiration | Naturally aspirated |
| Aftertreatment | No |
| Combustion system | Indirect injection (TVCS) |
| Fuel system | Inline fuel pump |
| Length x width x height mm (in) *2 | 480 x 396 x 605 mm (18.9 x 15.6 x 23.8 in) |
| Dry weight kg (lbs) *3 | 93 kg (205 lbs) |
| Series | Kubota 05 Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
