Kubota V3800-TIE5H
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

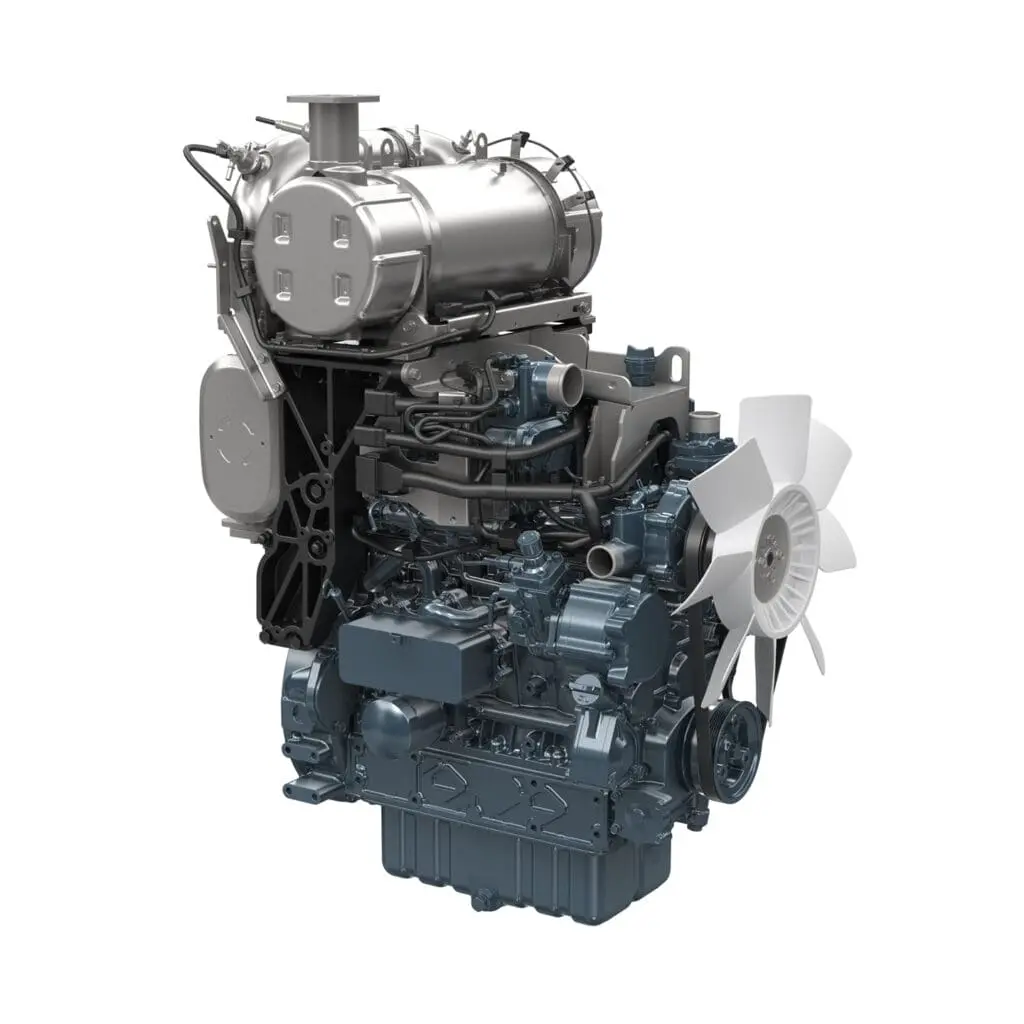

The Kubota V3800-TIE5H is a powerful 4-cylinder industrial diesel engine from the Kubota V3 Series. This vertical water-cooled 4-stroke DI diesel engine combines high power, Common Rail technology and advanced emission control for heavy-duty industrial applications.
With a power output of 96.4 kW @ 2400 rpm and maximum torque of 446.6 Nm @ 1800 rpm, the V3800-TIE5H delivers very strong performance at low rpm. The Common Rail system is optimized for low fuel consumption, while the turbocharger with aftercooler ensures high power density and reliable performance under heavy load.
The Kubota V3800-TIE5H meets EPA/CARB Tier 4 and EU Stage V emissions standards. The engine is equipped with DOC + DPF + SCR aftertreatment and external EGR. Kubota’s DPF technology allows automatic regeneration at low engine speeds, which helps reduce maintenance and downtime.
Kubota V3800-TIE5H
- Complies with EPA/CARB Tier 4 + EU Stage V
- Very high power output of 96.4 kW
- Turbocharged + Turbo After Cooler for high power density
- Common Rail system for low fuel consumption
- DOC + DPF + SCR aftertreatment integrated
- High torque of 446.6 Nm @ 1800 rpm
- Automatic DPF regeneration at low rpm
- External EGR for emissions control
- Suitable for heavy industrial applications
- High quality Kubota V3 Series build quality
| Brand | Kubota |
|---|---|
| Model | V3800-TIE5H |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 96.4 kW @ 2400 rpm |
| Maximum torque / speed *1 | 446.6 Nm @ 1800 rpm |
| Cylinders | 4 |
| Emission | EPA/CARB Tier 4 + EU Stage V |
| Type | Vertical water-cooled 4-stroke DI diesel engine |
| Bore and stroke mm (in) | 100.0 x 120.0 mm (3.937 x 4.724 in) |
| Displacement L (cu.in) | 3.769 L (230.0 cu.in) |
| Aspiration | Turbocharged + Turbo After Cooler |
| Aftertreatment | DOC + DPF + SCR |
| Combustion system | Direct injection |
| Fuel system | Common Rail system |
| Length x width x height mm (in) *2 | 720 x 617 x 872 mm (28.3 x 24.3 x 34.3 in) |
| Length x width x height mm (in) *3 | 864 x 638 x 1226 mm (34.0 x 25.1 x 48.26 in) |
| Dry weight kg (lbs) *3 | 423 kg (933 lbs) |
| Series | Kubota V3 Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
