Kubota V2607-TE5A
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

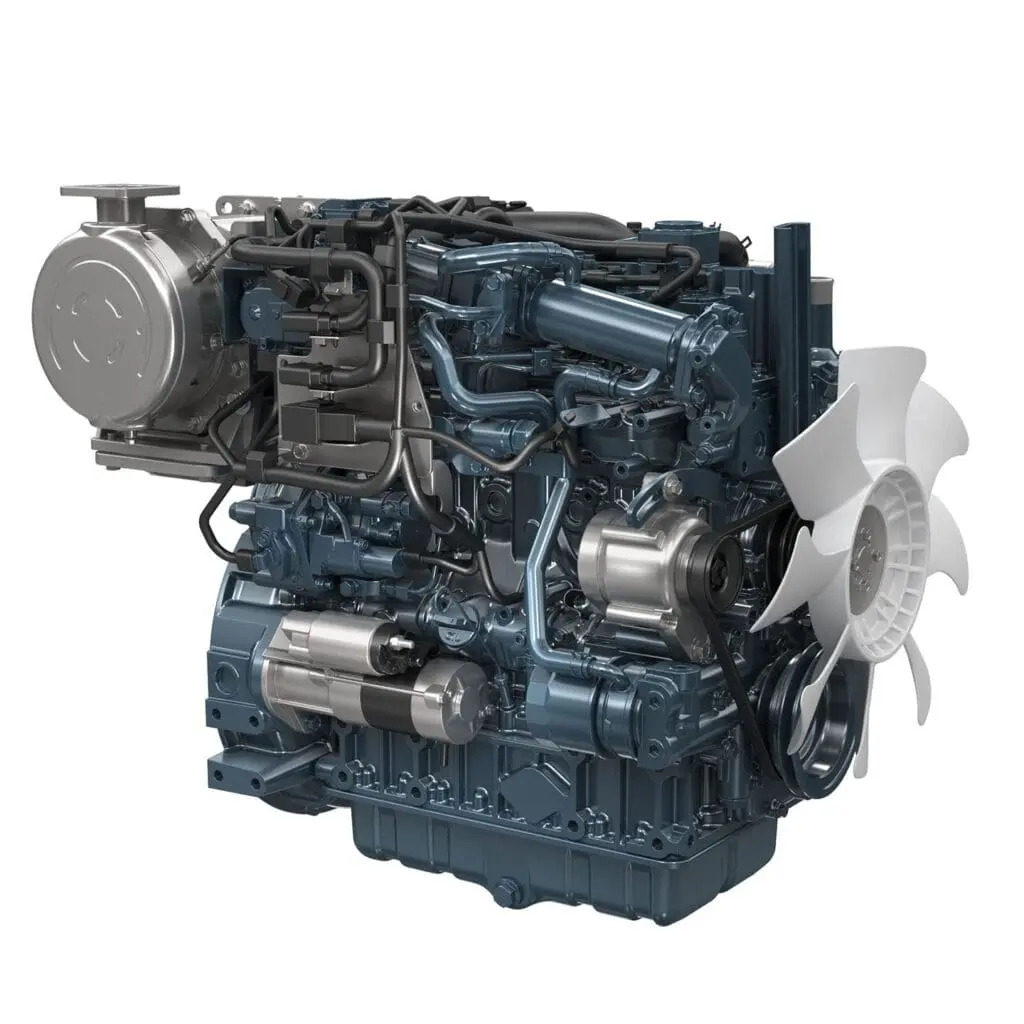

The Kubota V2607-TE5A is a powerful 4-cylinder industrial diesel engine from the Kubota 07 Series. This vertical water-cooled 4-stroke diesel engine combines turbocharging, Common Rail technology and DOC + DPF aftertreatment for reliable performance in heavy-duty industrial applications.
With an output of 55.4 kW @ 2700 rpm and maximum torque of 225.0 Nm @ 1600 rpm, the V2607-TE5A delivers strong power at low rpm. The turbocharged engine offers high power density, while the Common Rail fuel system ensures precise injection and efficient combustion.
The Kubota V2607-TE5A meets EPA/CARB Tier 4, EU Stage V and China NR IV emissions standards. Thanks to integrated DOC + DPF aftertreatment, emissions are effectively reduced while the engine remains suitable for a variety of industrial machines where reliability, power and emissions performance are important.
Kubota V2607-TE5A
- Complies with EPA/CARB Tier 4 + EU Stage V + China NR IV
- Turbocharged for high power density
- Common Rail fuel system for efficient combustion
- DOC + DPF aftertreatment integrated
- High torque at low speeds
- Vertical water-cooled 4-stroke diesel engine
- 4-cylinder engine from the Kubota 07 Series
- Compact installation with aftertreatment unit
- Suitable for heavy industrial applications
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | V2607-TE5A |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 55.4 kW @ 2700 rpm |
| Maximum torque / speed *1 | 225.0 Nm @ 1600 rpm |
| Cylinders | 4 |
| Emission | EPA/CARB Tier 4 + EU Stage V + China NR IV |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 87.0 x 110.0 mm (3.43 x 4.331 in) |
| Displacement L (cu.in) | 2.615 L (159.6 cu.in) |
| Aspiration | Turbocharged |
| Aftertreatment | DOC + DPF |
| Combustion system | Direct injection |
| Fuel system | Common Rail system |
| Length x width x height mm (in) *3 | 835 x 523 x 723 mm (32.9 x 20.6 x 28.5 in) |
| Dry weight kg (lbs) *3 | 272 kg (600 lbs) |
| Series | Kubota 07 Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
