Kubota V3800-TIE5
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

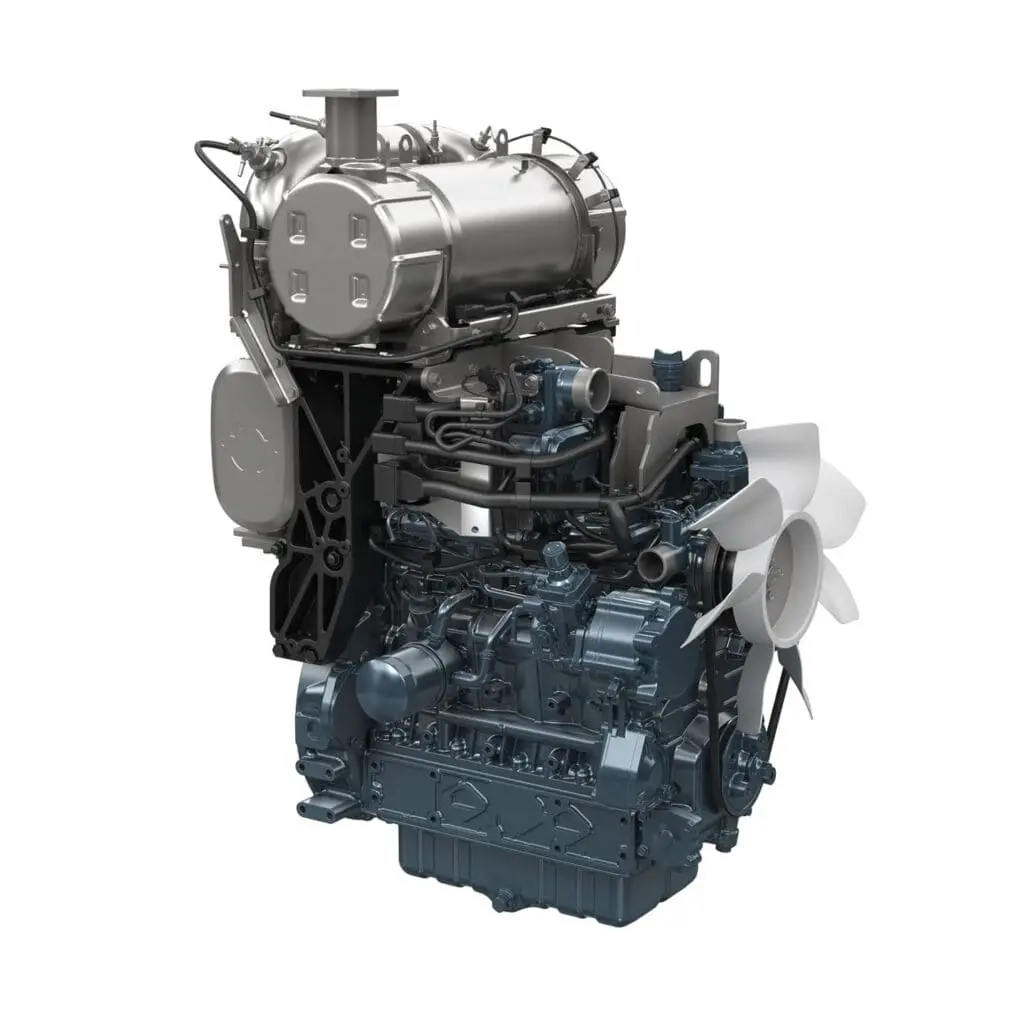

The Kubota V3800-TIE5 is a powerful 4-cylinder industrial diesel engine from the Kubota V3 Series. This vertical water-cooled 4-stroke DI diesel engine combines strong performance, Common Rail technology and modern emissions engineering for heavy-duty industrial applications.
With an output of 86.4 kW @ 2600 rpm and maximum torque of 385.0 Nm @ 1500 rpm, the V3800-TIE5 delivers high power and plenty of pulling power at low rpm. The Common Rail system optimizes combustion and contributes to a quieter, more durable engine with higher fuel efficiency.
The Kubota V3800-TIE5 meets EU Stage V emissions standards and is equipped with DOC + DPF + SCR aftertreatment. Thanks to Turbo + TAC aspiration and external EGR, this engine is suitable for applications where power, emission control and reliability are important.
Kubota V3800-TIE5
- Meets EU Stage V emissions standards
- Turbo + TAC for high power density
- Common Rail system for efficient combustion
- DOC + DPF + SCR aftertreatment integrated
- High torque at low speeds
- Direct injection for powerful performance
- External EGR for emissions control
- Suitable for heavy industrial applications
- Vertical water-cooled 4-stroke DI diesel engine
- High quality Kubota V3 Series build quality
| Brand | Kubota |
|---|---|
| Model | V3800-TIE5 |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 86.4 kW @ 2600 rpm |
| Maximum torque / speed *1 | 385.0 Nm @ 1500 rpm |
| Cylinders | 4 |
| Emission | EU Stage V |
| Type | Vertical water-cooled 4-stroke DI diesel engine |
| Bore and stroke mm (in) | 100.0 x 120.0 mm (3.937 x 4.724 in) |
| Displacement L (cu.in) | 3.769 L (230.0 cu.in) |
| Aspiration | Turbo + TAC |
| Aftertreatment | DOC + DPF + SCR |
| Combustion system | Direct injection |
| Fuel system | Common Rail system |
| Length x width x height mm (in) *2 | 844 x 638 x 1191 mm (33.2 x 25.1 x 46.88 in) |
| Dry weight kg (lbs) *3 | 400 kg (882 lbs) |
| Series | Kubota V3 Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
