Kubota D1105-K-E4
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

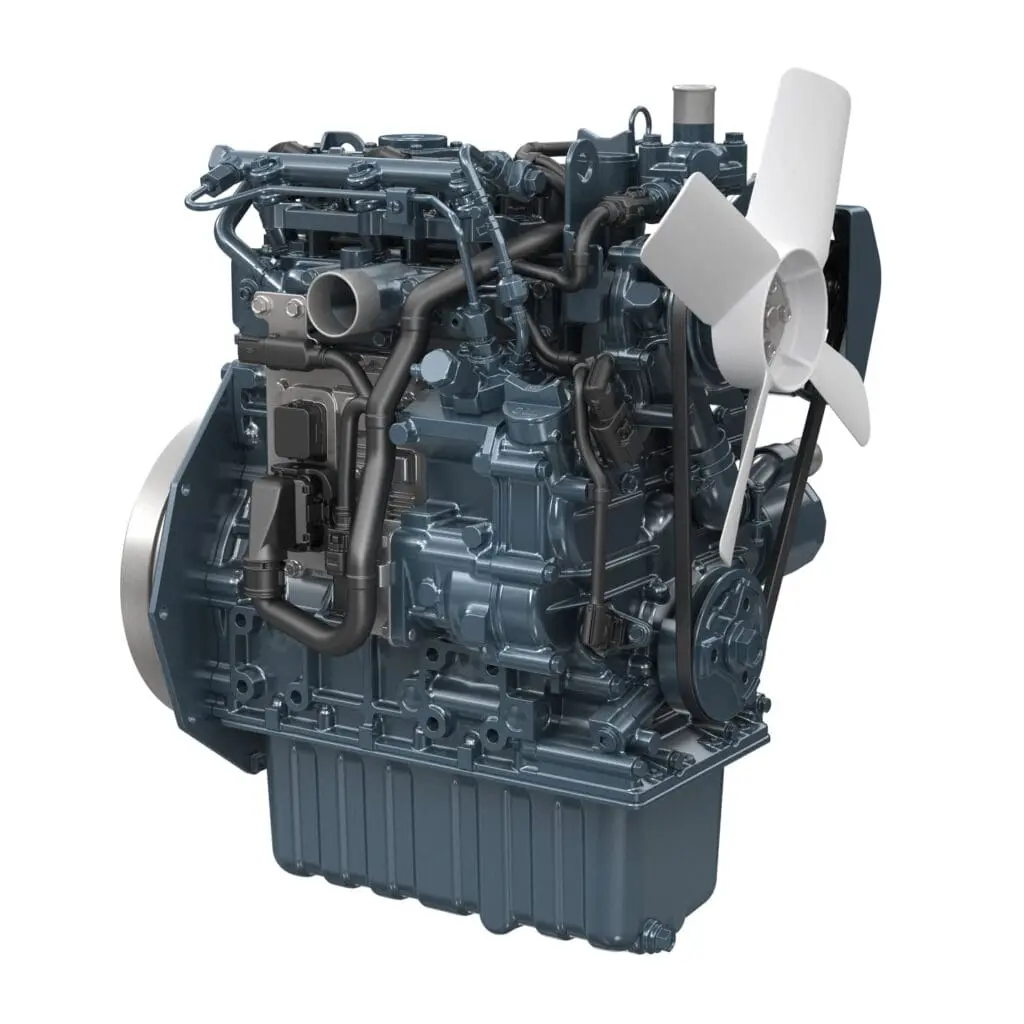

The Kubota D1105-K-E4 is an advanced 3-cylinder industrial diesel engine from the Kubota 05 Series. This electronically controlled engine combines low emission values, low fuel consumption and intelligent engine control with powerful performance and high reliability.
With an output of 18.5 kW at 3,000 rpm and maximum torque of 72.4 Nm, the D1105-K-E4 delivers excellent performance for a variety of industrial applications. Thanks to innovative TVCR combustion technology, black smoke is virtually eliminated during starting, acceleration and sudden load increases. In addition, fuel consumption is improved by approximately 5% over conventional models.
Electronic ECU control supports CAN communication and integrated machine control, making this engine ideal for applications with advanced automation, hybrid systems and digitalization. The Kubota D1105-K-E4 meets EPA/CARB Tier 4, EU Stage V and China Non-Road IV emission standards without additional aftertreatment.
Kubota D1105-K-E4
- Meets EU Stage V emissions standards
- TVCR technology visibly reduces black smoke
- Approximately 5% lower fuel consumption
- CAN communication for smart motor control
- Suitable for hybrid and automated systems
- High torque at low speeds
- Compact design for easy integration
- No post-treatment required
- Stable performance under varying loads
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | D1105-K-E4 |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 18.5 kW @ 3000 rpm |
| Maximum torque / speed *1 | 72.4 Nm @ 2200 rpm |
| Cylinders | 3 |
| Emission | EPA/CARB Tier 4 + EU Stage V + China Non-Road IV |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 78.0 x 78.4 mm (3.07 x 3.09 in) |
| Displacement L (cu.in) | 1.123 L (68.53 cu.in) |
| Aspiration | Naturally aspirated |
| Aftertreatment | No |
| Combustion system | Indirect injection (TVCR). |
| Fuel system | Inline fuel pump |
| Length x width x height mm (in) *2 | 481 x 385 x 595 mm (19.0 x 15.2 x 23.4 in) |
| Dry weight kg (lbs) *3 | 94 kg (207 lbs) |
| Series | Kubota 05 Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
