Kubota D1803-CR-T-E5
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

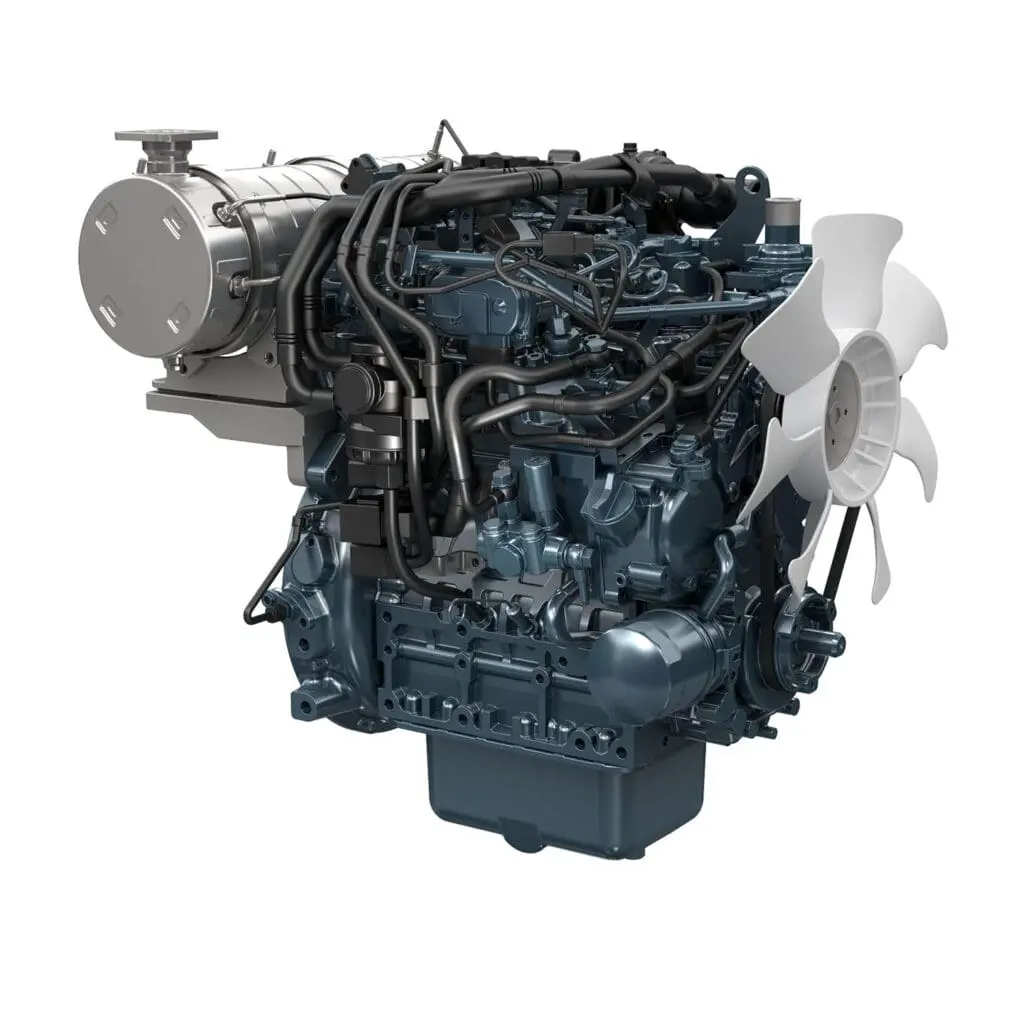

The Kubota D1803-CR-T-E5 is a powerful turbocharged 3-cylinder industrial diesel engine from the Kubota 03 Series. This modern Common Rail diesel engine combines high performance, low emissions and advanced engine technology in a compact design for heavy-duty industrial applications.
With an output of 37.0 kW @ 2700 rpm and maximum torque of 150.5 Nm @ 1600 rpm, the D1803-CR-TE5 delivers excellent performance at low engine speeds. Thanks to the turbocharger and Common Rail fuel system, the engine benefits from quick response, efficient combustion and stable performance under varying loads.
The Kubota D1803-CR-TE5 meets EPA/CARB Tier 4 and EU Stage V emissions standards and features an integrated DOC + DPF aftertreatment system. This greatly reduces emissions while maintaining performance. Its compact design and high reliability make this engine ideal for industrial machines where power, efficiency and durability are key.
Kubota D1803-CR-T-E5
- Meets EU Stage V emissions standards
- Turbocharged for high power density
- Common Rail fuel system for efficient combustion
- High torque at low speeds
- DOC + DPF aftertreatment integrated
- Compact design for easy integration
- Stable performance under varying loads
- Suitable for heavy industrial applications
- Modern direct injection technology
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | D1803-CR-TE5 |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 37.0 kW @ 2700 rpm |
| Maximum torque / speed *1 | 150.5 Nm @ 1600 rpm |
| Cylinders | 3 |
| Emission | EPA/CARB Tier 4 + EU Stage V |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 87.0 x 102.4 mm (3.43 x 4.03 in) |
| Displacement L (cu.in) | 1.826 L (111.4 cu.in) |
| Aspiration | Turbocharged |
| Aftertreatment | DOC + DPF |
| Combustion system | Direct injection |
| Fuel system | Common Rail system |
| Length x width x height mm (in) *2 | 628 x 466 x 659 mm (24.7 x 18.3 x 25.9 in) |
| Dry weight kg (lbs) *3 | 145 kg (320 lbs) |
| Series | Kubota 03 Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
