Kubota D902-E4B
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

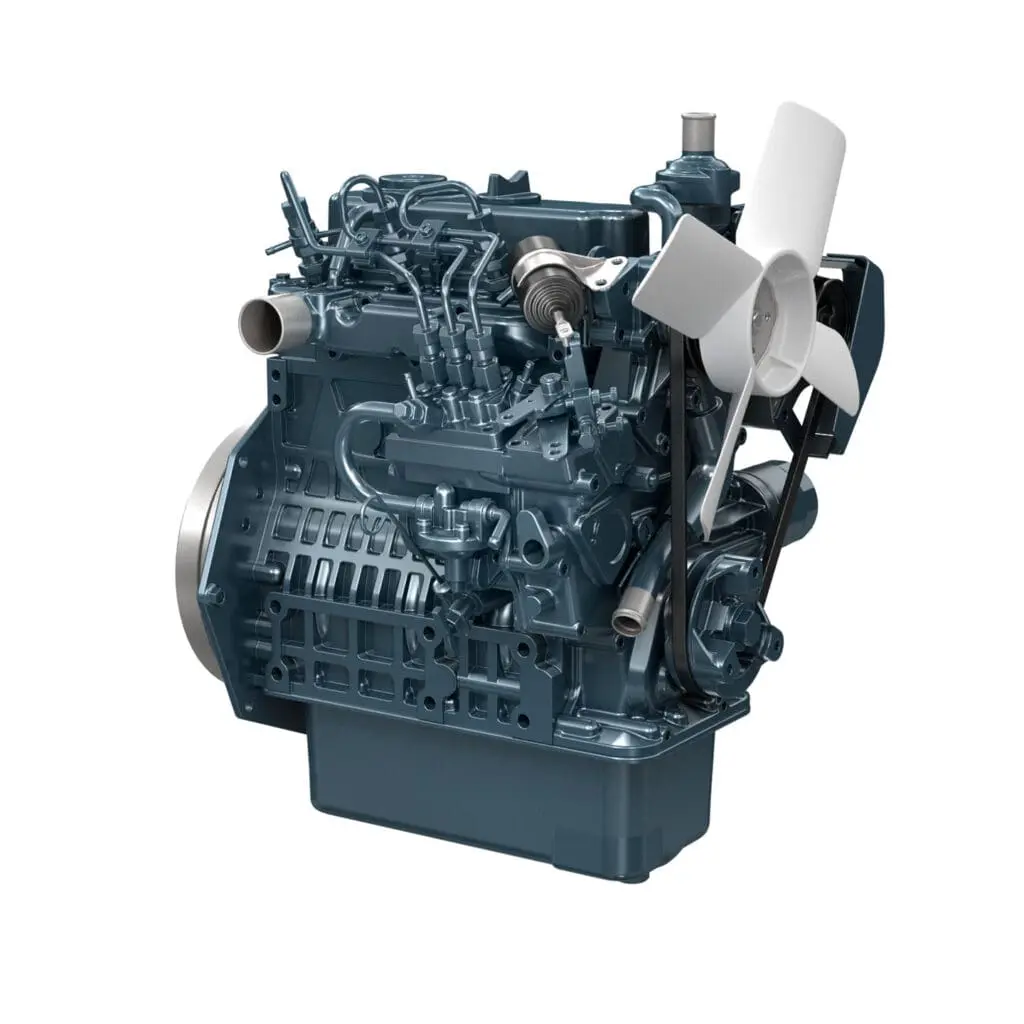

The Kubota D902-E4B is a powerful and compact 3-cylinder industrial diesel engine from the Kubota Super Mini Series. This liquid-cooled 4-stroke diesel engine delivers the highest power within the Super Mini Series and combines excellent performance with a compact design, low emissions and high reliability.
With a maximum output of 18.5 kW at 3,600 rpm and maximum torque of 56.1 Nm, the D902-E4B is ideal for heavy-duty industrial applications where compact size and high performance are essential. Thanks to its enlarged displacement and clever construction, the engine maintains the same compact footprint as the smaller D722 series.
Kubota TVCS (Three Vortex Combustion System) technology ensures efficient combustion, low emissions and low fuel consumption. In addition, MoS2-coated pistons and an optimized design contribute to reduced vibration and quieter operation. The engine meets EPA/CARB Tier 4 and EU Stage V emissions standards without additional aftertreatment.
Kubota D902-E4B
- Meets EU Stage V emissions standards
- Highest power within the Super Mini Series
- Compact and powerful 3-cylinder diesel engine
- Low fuel consumption thanks to TVCS technology
- Quiet and low-vibration design
- No post-treatment required
- High torque at low speeds
- Compact design for easy integration
- Inline fuel pump for stable performance
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | D902-E4B |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 18.5 kW @ 3600 rpm |
| Maximum torque / speed *1 | 56.1 Nm @ 2600 rpm |
| Cylinders | 3 |
| Emission | EPA/CARB Tier 4 + EU Stage V |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 72.0 x 73.6 mm (2.83 x 2.90 in) |
| Displacement L (cu.in) | 0.898 L (54.80 cu.in) |
| Aspiration | Naturally aspirated |
| Aftertreatment | No |
| Combustion system | Indirect injection |
| Fuel system | Inline fuel pump |
| Length x width x height mm (in) *2 | 434 x 401 x 544 mm (17.1 x 15.8 x 21.4 in) |
| Dry weight kg (lbs) *3 | 72 kg (159 lbs) |
| Series | Kubota Super Mini Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
