Kubota D902-K-E4
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

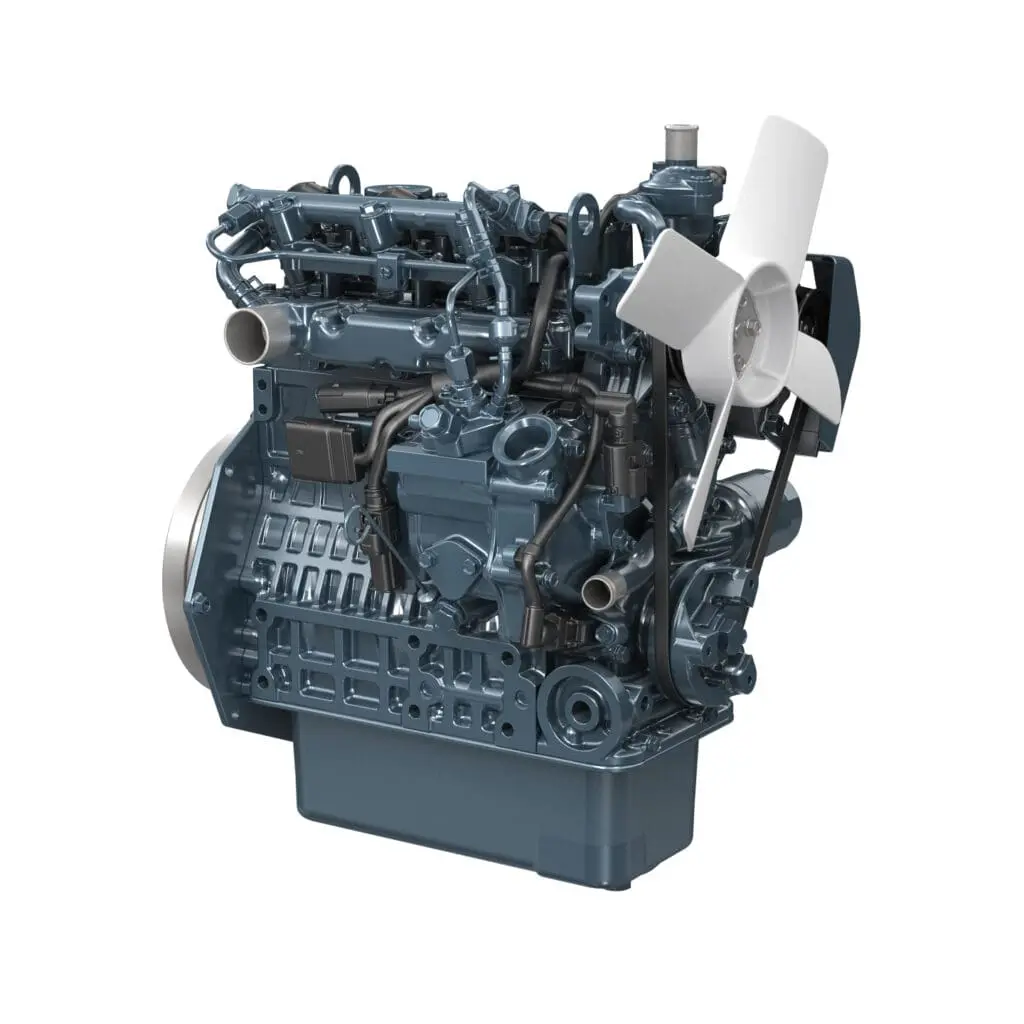

The Kubota D902-K-E4 is an advanced 3-cylinder industrial diesel engine from the Kubota Super Mini Series. This compact and efficient engine combines low emission values, improved fuel efficiency and smart electronic control with reliable performance for a variety of industrial applications.
With an output of 18.5 kW at 3,600 rpm and maximum torque of 56.1 Nm, the D902-K-E4 delivers powerful performance in a compact design. Thanks to improved TVCR combustion technology, black smoke is almost completely suppressed during starting, acceleration and sudden load increases. In addition, fuel consumption has been improved by approximately 5% over previous models.
The Kubota D902-K-E4 supports CAN communication, allowing easy reading of engine data and electronic control of speed and torque from vehicles or machinery. The engine meets EPA/CARB Tier 4, EU Stage V and China Non-Road IV emission standards without additional aftertreatment.
Kubota D902-K-E4
- Meets EU Stage V emissions standards
- Suppresses black smoke on load and acceleration
- Approximately 5% lower fuel consumption
- CAN communication for smart control
- Compact and powerful 3-cylinder diesel engine
- No post-treatment required
- High torque at low speeds
- Quiet and efficient design
- Compatible with existing D902 setups
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | D902-K-E4 |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 18.5 kW @ 3600 rpm |
| Maximum torque / speed *1 | 56.1 Nm @ 2600 rpm |
| Cylinders | 3 |
| Emission | EPA/CARB Tier 4 + EU Stage V + China Non-Road IV |
| Type | Vertical water-cooled 4-stroke IDI diesel engine |
| Bore and stroke mm (in) | 72.0 x 73.6 mm (2.83 x 2.90 in) |
| Displacement L (cu.in) | 0.898 L (54.80 cu.in) |
| Aspiration | Naturally aspirated |
| Aftertreatment | No |
| Combustion system | Indirect injection (TVCR). |
| Fuel system | Indirect injection (TVCR). |
| Length x width x height mm (in) *2 | 434 x 389 x 544 mm (17.1 x 15.3 x 21.4 in) |
| Dry weight kg (lbs) *3 | 72 kg (159 lbs) |
| Series | Kubota Super Mini Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
