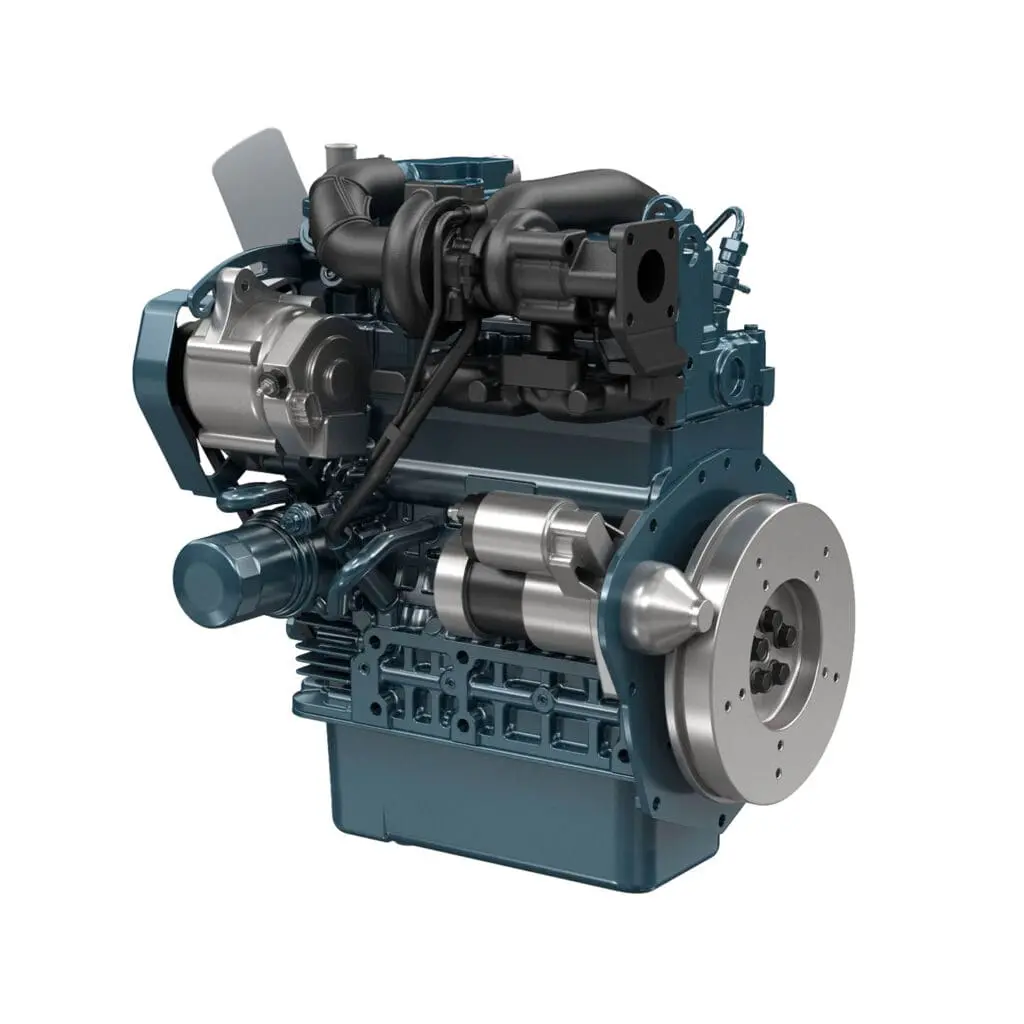

Kubota D902-TE4
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers
The Kubota D902-TE4 is a powerful turbocharged 3-cylinder industrial diesel engine from the Kubota Super Mini Series. This compact and lightweight engine combines high performance with low emissions, excellent reliability and optimum performance at higher altitudes.
With an output of 18.5 kW at 3,200 rpm and maximum torque of 72.2 Nm, the D902-TE4 delivers impressive performance within a compact design. Thanks to its turbocharger, this engine features high power density while keeping noise and vibration low. This makes the engine ideal for industrial applications where power, efficiency and compactness come together.
The Kubota D902-TE4 meets EPA/CARB Tier 4 and EU Stage V emissions standards without additional aftertreatment. The engine features an indirect injection system and inline fuel pump for efficient combustion, stable performance and low fuel consumption. In addition, the D902-TE4 remains compatible with conventional D902 engines, keeping integration simple.
Kubota D902-TE4
- Meets EU Stage V emissions standards
- Turbocharged for high power density
- Compact and lightweight design
- Excellent performance at high altitudes
- Quiet and low-vibration design
- No post-treatment required
- High torque at low speeds
- Compatible with conventional D902 motors
- Inline fuel pump for stable performance
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | D902-TE4 |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 18.5 kW @ 3200 rpm |
| Maximum torque / speed *1 | 72.2 Nm @ 2400 rpm |
| Cylinders | 3 |
| Emission | EPA/CARB Tier 4 + EU Stage V |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 72.0 x 73.6 mm (2.83 x 2.90 in) |
| Displacement L (cu.in) | 0.898 L (54.80 cu.in) |
| Aspiration | Turbocharged |
| Aftertreatment | No |
| Combustion system | Indirect injection |
| Fuel system | Inline fuel pump |
| Length x width x height mm (in) *2 | 434 x 404 x 544 mm (17.1 x 15.9 x 21.4 in) |
| Dry weight kg (lbs) *3 | 75 kg (165 lbs) |
| Series | Kubota Super Mini Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
