Kubota EA330-E4
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

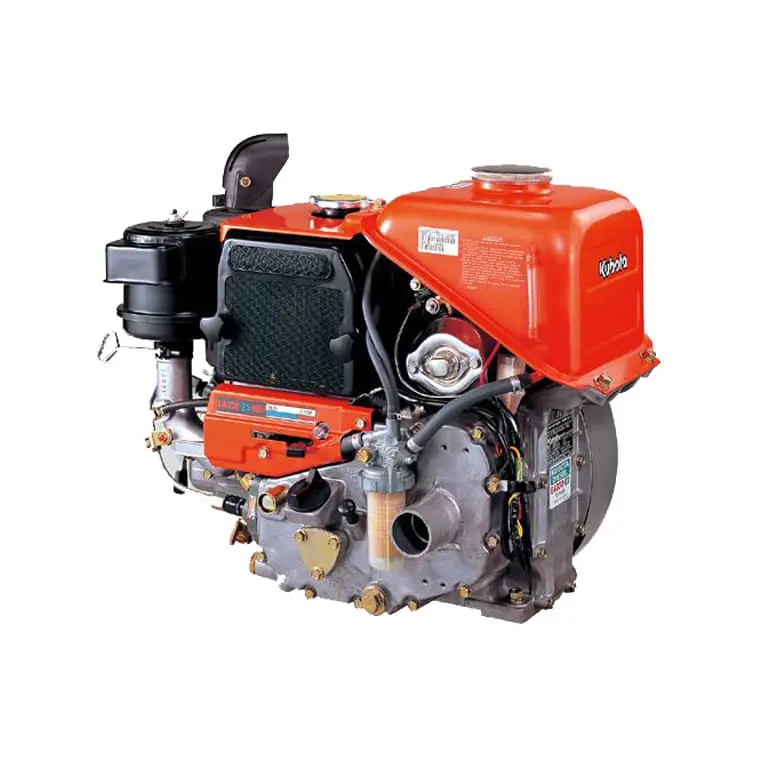

The Kubota EA330-E4 is a compact and powerful 1-cylinder industrial diesel engine from the reliable Kubota EA series. With its robust design, low emissions and stable power, this engine is ideal for a variety of industrial applications where reliability and efficiency are key.
The EA330-E4 delivers maximum power of 5.15 kW at 3,000 rpm and meets stringent EPA/CARB Tier 4 emissions standards. Kubota’s original Three Vortex Combustion System (TVCS) combustion technology ensures an optimal air-fuel mix, resulting in low fuel consumption, quiet operation and consistent performance.
Its compact size and low dry weight of only 54 kg make this diesel engine easy to integrate into a variety of machines and installations. The durable construction makes the EA330-E4 suitable for long-term professional use under tough conditions.
Suitable for industrial machinery, generators, pumps and other applications where compact power is required.
Kubota EA330-E4
- Meets EPA/CARB Tier 4 emissions standards
- Compact design for easy integration
- Reliable 1-cylinder industrial diesel engine
- Low fuel consumption thanks to TVCS technology
- Quiet and efficient operation
- High torque at low speeds
- Durably designed for professional use
- Suitable for various industrial applications
- Low maintenance requirement
- Lightweight design of only 54 kg
| Brand | Kubota |
|---|---|
| Model | EA330-E4 |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 5.15 kW @ 3000 rpm |
| Maximum torque / speed *1 | 17.65 Nm @ 2000 rpm |
| Cylinders | 1 |
| Emission | EPA/CARB Tier 4 |
| Type | Horizontal water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 77.0 x 70.0 mm (3.03 x 2.76 in) |
| Displacement L (cu.in) | 0.325 L (19.8 cu.in) |
| Aspiration | Naturally aspirated |
| Aftertreatment | No post-treatment required |
| Combustion system | Indirect injection (TVCS) |
| Fuel system | Mechanical diesel injection system |
| Length x width x height mm (in) *2 | Officia vero sunt |
| Length x width x height mm (in) *3 | 312 x 566 x 457 mm (12.3 x 22.3 x 18.0 in) |
| Dry weight kg (lbs) *3 | 54 kg (120 lbs) |
| Series | Kubota EA Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
