Kubota OC95-E4
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

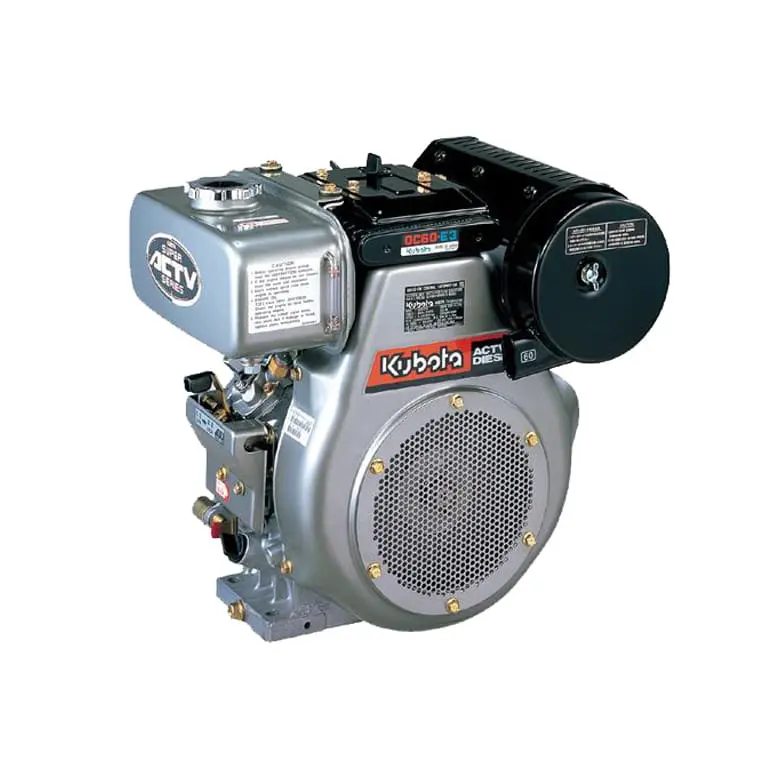

The Kubota OC95-E4 is a powerful and compact 1-cylinder industrial diesel engine from the innovative Kubota OC series. This engine combines the advantages of an air-cooled engine with the low emissions, quiet operation and durability of a liquid-cooled diesel engine. Thanks to the unique ACTV (Advanced Cooling Three Vortex) cooling system, the OC95-E4 delivers reliable performance under tough conditions.
With a maximum output of 7.0 kW at 3600 rpm and maximum torque of 21.6 Nm, this engine offers excellent performance for a variety of industrial applications. The engine meets both EPA/CARB Tier 4 and EU Stage V emission standards, making it suitable for use within the European market.
The Kubota OC95-E4 features an indirect injection system with TVCS technology, which ensures efficient combustion, low fuel consumption and stable performance. Its compact size and relatively low weight of 56 kg make this diesel engine easy to integrate into machines, power units, pumps and other industrial applications.
Kubota OC95-E4
- Meets EU Stage V emissions standards
- Compact and powerful design
- High torque at low speeds
- Low fuel consumption thanks to TVCS technology
- Innovative ACTV cooling system
- Quiet and efficient operation
- Reliable performance under harsh conditions
- Easy to integrate into industrial machines
- Low maintenance requirement
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | OC95-E4 |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 7.0 kW @ 3600 rpm |
| Maximum torque / speed *1 | 21.6 Nm @ 2300 rpm |
| Cylinders | 1 |
| Emission | EPA/CARB Tier 4 + EU Stage V |
| Type | Vertical liquid-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 83.0 x 77.0 mm (3.27 x 3.03 in) |
| Displacement L (cu.in) | 0.416 L (25.4 cu.in) |
| Aspiration | Naturally aspirated |
| Aftertreatment | No post-treatment required |
| Combustion system | Indirect injection (TVCS) |
| Fuel system | Mechanical diesel injection system |
| Length x width x height mm (in) *2 | 451 x 503 x 501 mm (17.8 x 19.8 x 19.7 in) |
| Dry weight kg (lbs) *3 | 56 kg (120 lbs) |
| Series | Kubota OC Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
