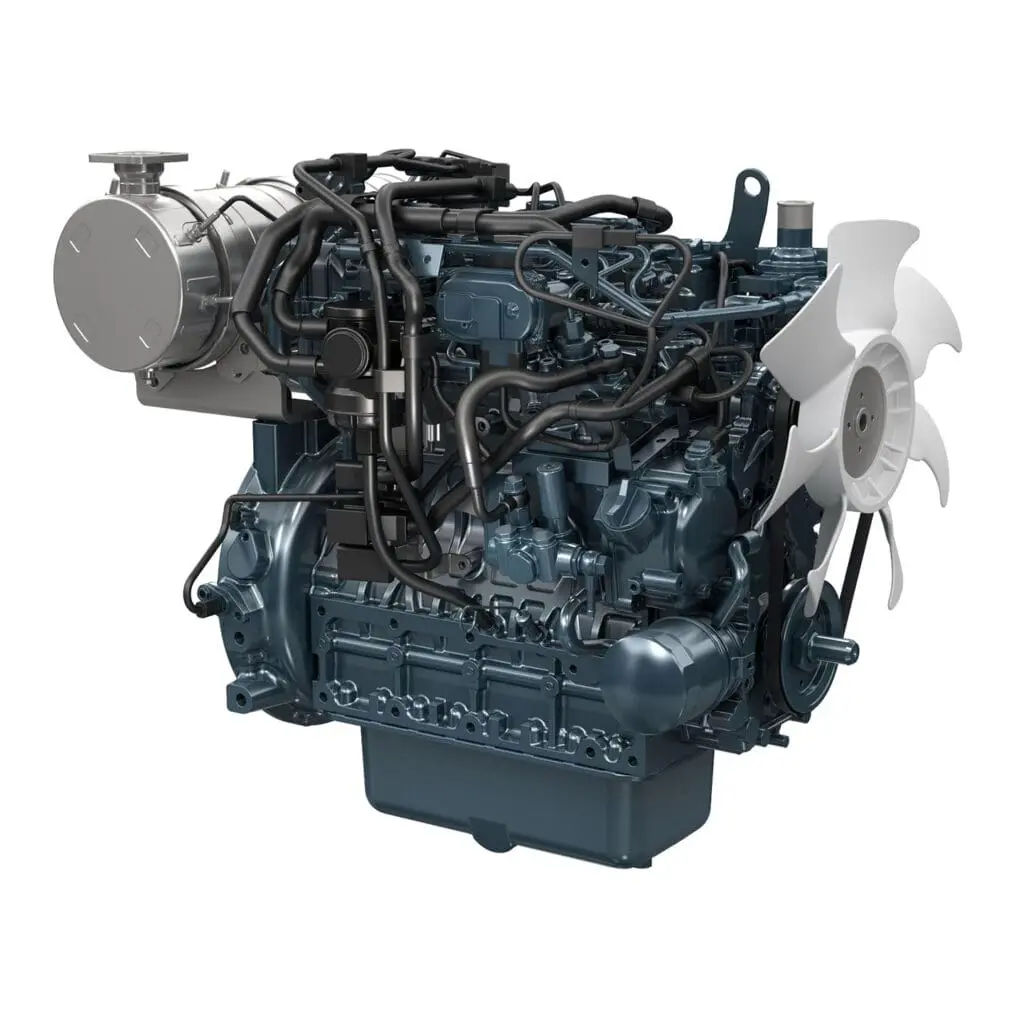

Kubota V1505-CR-TE5
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers
The Kubota V1505-CR-TE5 is a modern turbocharged 4-cylinder industrial diesel engine from the reliable Kubota 05 Series. This powerful Common Rail diesel engine combines high performance, low emissions and advanced engine technology in a compact design for heavy-duty industrial applications.
With an output of 33.0 kW @ 3000 rpm and maximum torque of 118.6 Nm @ 2000 rpm, the V1505-CR-TE5 delivers excellent performance at low rpm. Thanks to the turbocharger and Common Rail fuel system, the engine benefits from quick response, efficient combustion and stable performance under varying loads.
The Kubota V1505-CR-TE5 meets EPA/CARB Tier 4 and EU Stage V emissions standards and features an integrated DOC + DPF aftertreatment system. Kubota’s advanced DPF technology supports automatic regeneration even at low engine speeds, extending service intervals and reducing downtime. Its compact design makes this engine easy to integrate into a variety of industrial machines and installations.
Kubota V1505-CR-TE5
- Meets EU Stage V emissions standards
- Turbocharged for high power density
- Common Rail fuel system for efficient combustion
- DOC + DPF aftertreatment integrated
- Automatic DPF regeneration at low rpm
- Long maintenance intervals
- High torque at low speeds
- Compact design for easy integration
- Suitable for heavy industrial applications
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | V1505-CR-TE5 |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 33.0 kW @ 3000 rpm |
| Maximum torque / speed *1 | 118.6 Nm @ 2000 rpm |
| Cylinders | 4 |
| Emission | EPA/CARB Tier 4 + EU Stage V |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 78.0 x 78.4 mm (3.07 x 3.09 in) |
| Displacement L (cu.in) | 1.498 L (91.41 cu.in) |
| Aspiration | Turbocharged |
| Aftertreatment | DOC + DPF |
| Combustion system | Direct injection |
| Fuel system | Common Rail system |
| Length x width x height mm (in) *2 | 758 x 474 x 691 mm (29.8 x 18.7 x 27.2 in) |
| Dry weight kg (lbs) *3 | 173 kg (381 lbs) |
| Series | Kubota 05 Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
