Kubota V1505-E2B
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

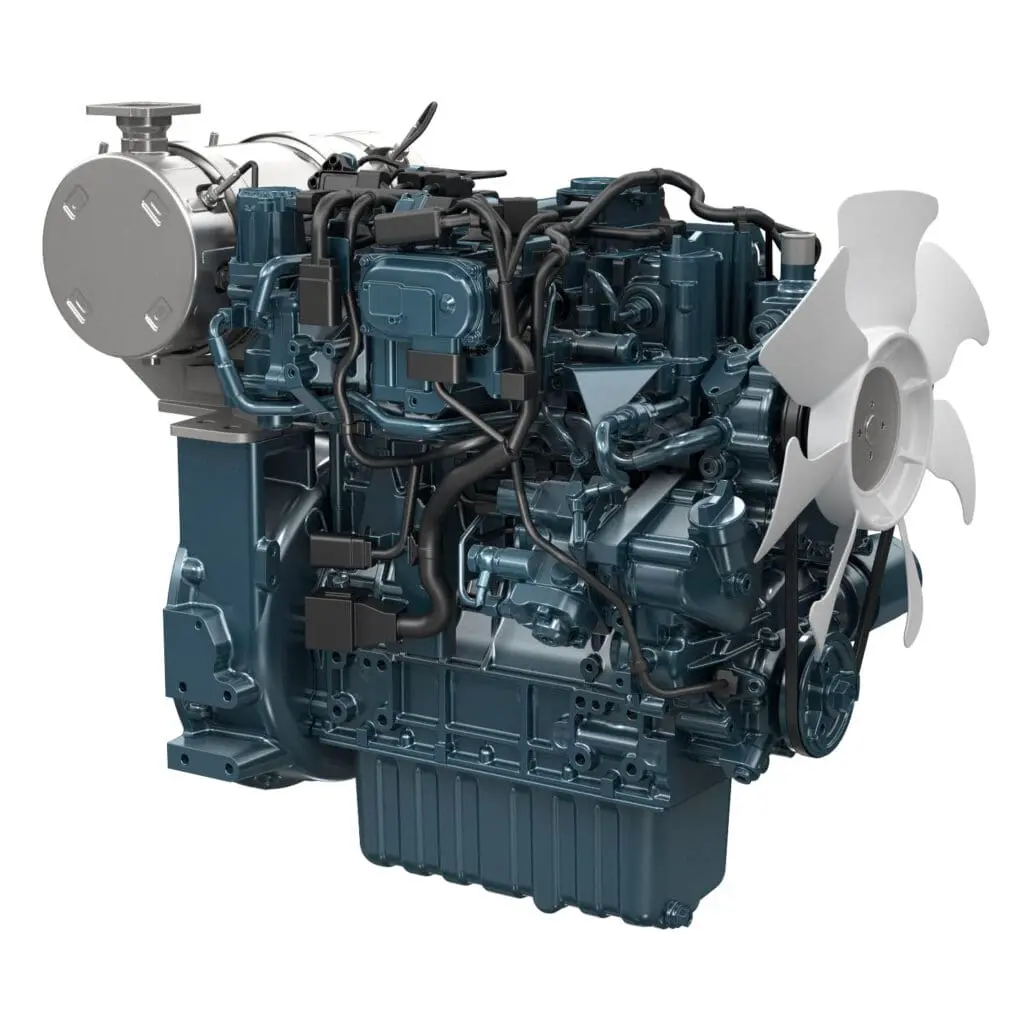

The Kubota V1505-E2B is a powerful and reliable 4-cylinder industrial diesel engine from the popular Kubota 05 Series. This liquid-cooled 4-stroke diesel engine combines high performance, compact design and excellent durability for a variety of industrial applications.
With an output of 26.5 kW at 3,000 rpm and maximum torque of 93.9 Nm, the V1505-E2B delivers strong performance at low engine speeds. Thanks to Kubota’s TVCS combustion technology, the engine benefits from efficient combustion, low emissions and low noise levels. In addition, MoS2-coated pistons and an optimized design ensure less vibration and quieter operation.
The Kubota V1505-E2B meets EPA/CARB Tier 2 emission standards without additional aftertreatment. Its compact size and rugged construction make this engine ideal for machinery and industrial applications where reliability and long life are essential.
Kubota V1505-E2B
- Reliable 4-cylinder industrial diesel engine
- High torque at low speeds
- Compact design with high power density
- TVCS combustion technology for efficient combustion
- Quiet and low-vibration design
- No post-treatment required
- Suitable for heavy industrial applications
- Inline fuel pump for stable performance
- Compact design for easy integration
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | V1505-E2B |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 26.5 kW @ 3000 rpm |
| Maximum torque / speed *1 | 93.9 Nm @ 2200 rpm |
| Cylinders | 4 |
| Emission | EPA/CARB Tier 2 |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 78.0 x 78.4 mm (3.07 x 3.09 in) |
| Displacement L (cu.in) | 1.498 L (91.41 cu.in) |
| Aspiration | Naturally aspirated |
| Aftertreatment | No |
| Combustion system | Indirect injection (TVCS) |
| Fuel system | Inline fuel pump |
| Length x width x height mm (in) *2 | 565 x 396 x 607 mm (22.2 x 15.6 x 23.9 in) |
| Dry weight kg (lbs) *3 | 110 kg (243 lbs) |
| Series | Kubota 05 Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
