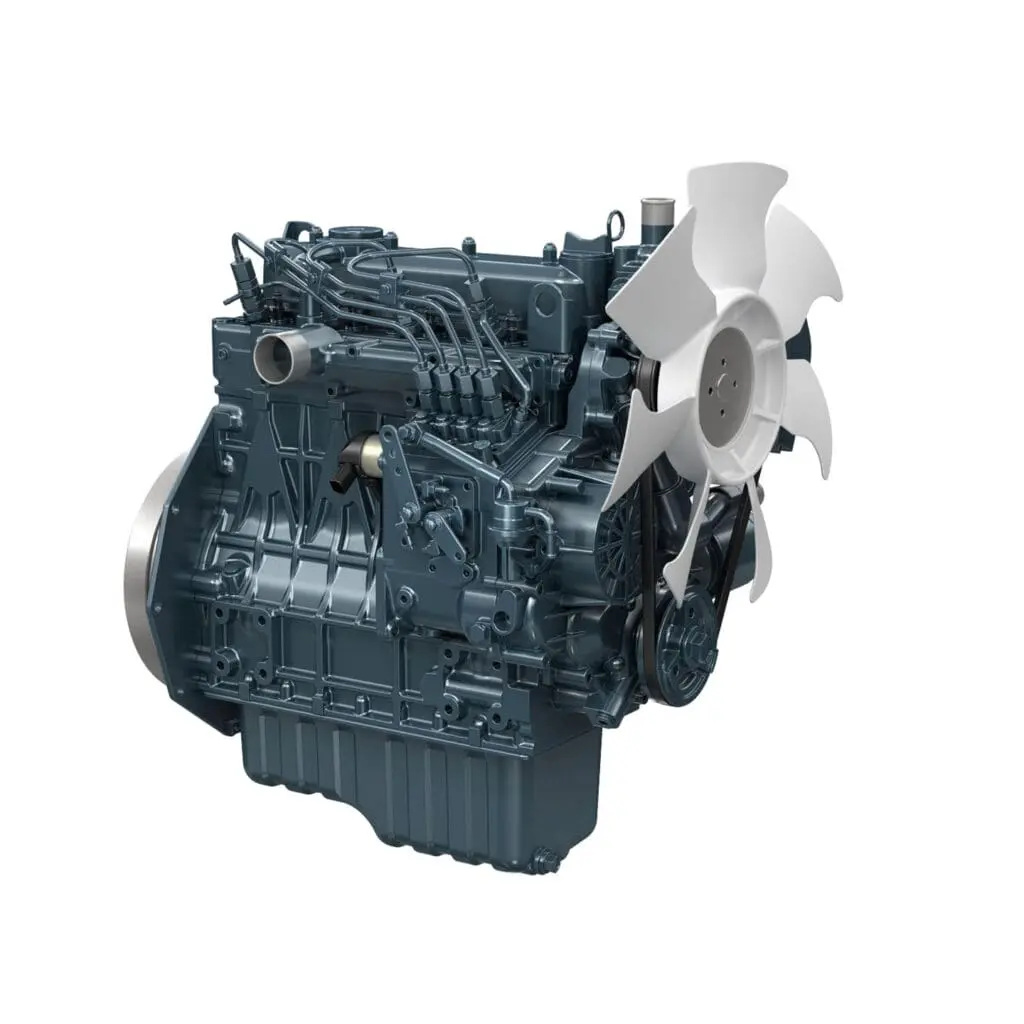

Kubota V1505-E3B
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers
The Kubota V1505-E3B is a powerful 4-cylinder industrial diesel engine from the reliable Kubota 05 Series. This liquid-cooled 4-stroke diesel engine is known for its high performance, low emissions and excellent durability for a variety of industrial applications.
The V1505-E3B is available in two power versions: a 26.5 kW version at 3000 rpm and a more powerful 29.0 kW version at 3600 rpm. Both motors combine a compact design with high power density, making them ideal for machines where performance and space saving are important.
Thanks to Kubota’s E-TVCS combustion technology, the engine benefits from efficient combustion, low particulate emissions and low noise levels. In addition, MoS2-coated pistons and an optimized design ensure less vibration and quieter operation. The Kubota V1505-E3B meets EPA/CARB Interim Tier 4 and EU Stage IIIA emissions standards without additional aftertreatment.
Kubota V1505-E3B
- Available in 26.5 kW and 29.0 kW versions
- Reliable 4-cylinder industrial diesel engine
- Compact design with high power density
- Improved E-TVCS combustion technology.
- Low emissions of particulate matter
- Quiet and low-vibration design
- No post-treatment required
- High torque at low speeds
- Suitable for heavy industrial applications
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | V1505-E3B |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 26.5 kW @ 3000 rpm + 29.0 kW @ 3600 rpm |
| Maximum torque / speed *1 | 93.9 Nm @ 2200 rpm + 87.0 Nm @ 2600 rpm |
| Cylinders | 4 |
| Emission | EPA/CARB Interim Tier 4 + EU Stage IIIA |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 78.0 x 78.4 mm (3.07 x 3.09 in) |
| Displacement L (cu.in) | 1.498 L (91.41 cu.in) |
| Aspiration | Naturally aspirated |
| Aftertreatment | No |
| Combustion system | Indirect injection (TVCS) |
| Fuel system | Inline fuel pump |
| Length x width x height mm (in) *2 | 565 x 396 x 607 mm (22.2 x 15.6 x 23.9 in) |
| Dry weight kg (lbs) *3 | 110 kg (243 lbs) |
| Series | Kubota 05 Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
