Kubota V1505-T-E2B
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

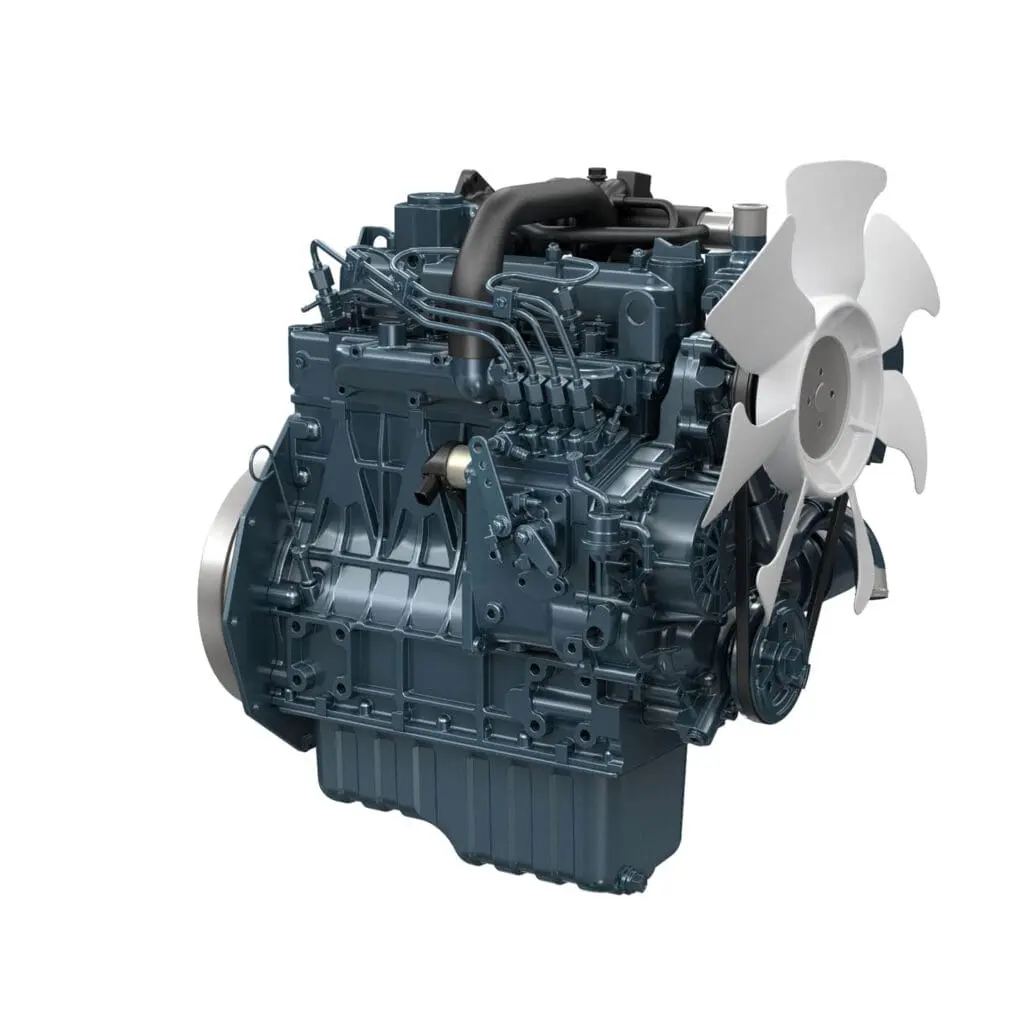

The Kubota V1505-T-E2B is a powerful turbocharged 4-cylinder industrial diesel engine from the reliable Kubota 05 Series. This liquid-cooled 4-stroke diesel engine combines high power density, excellent reliability and strong performance with a compact design for a variety of industrial applications.
With an output of 33.0 kW at 3,000 rpm and maximum torque of 118.6 Nm, the V1505-T-E2B delivers impressive performance at low speeds. Thanks to its turbocharger, this engine offers excellent performance under heavy load while maintaining efficient fuel consumption.
The Kubota V1505-T-E2B meets EPA/CARB Tier 2 and EU Stage IIIA emissions standards without additional aftertreatment. The engine features an indirect injection system and inline fuel pump for stable performance, low emissions and reliable operation under harsh conditions. Its compact size and relatively low weight make this engine easy to integrate into industrial machinery and equipment.
Kubota V1505-T-E2B
- Turbocharged for high power density
- High torque at low speeds
- Compact and powerful 4-cylinder diesel engine
- Suitable for heavy industrial applications
- Quiet and low-vibration design
- No post-treatment required
- Reliable performance under high loads
- Compact design for easy integration
- Inline fuel pump for stable performance
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | V1505-T-E2B |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 33.0 kW @ 3000 rpm |
| Maximum torque / speed *1 | 118.6 Nm @ 2000 rpm |
| Cylinders | 4 |
| Emission | EPA/CARB Tier 2 + EU Stage IIIA |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 78.0 x 78.4 mm (3.07 x 3.09 in) |
| Displacement L (cu.in) | 1.498 L (91.41 cu.in) |
| Aspiration | Turbocharged |
| Aftertreatment | No |
| Combustion system | Indirect injection (TVCS) |
| Fuel system | Inline fuel pump |
| Length x width x height mm (in) *2 | 565 x 433 x 621 mm (22.2 x 17.0 x 24.4 in) |
| Dry weight kg (lbs) *3 | 114 kg (251 lbs) |
| Series | Kubota 05 Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
