Kubota V2203-M-E3B
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

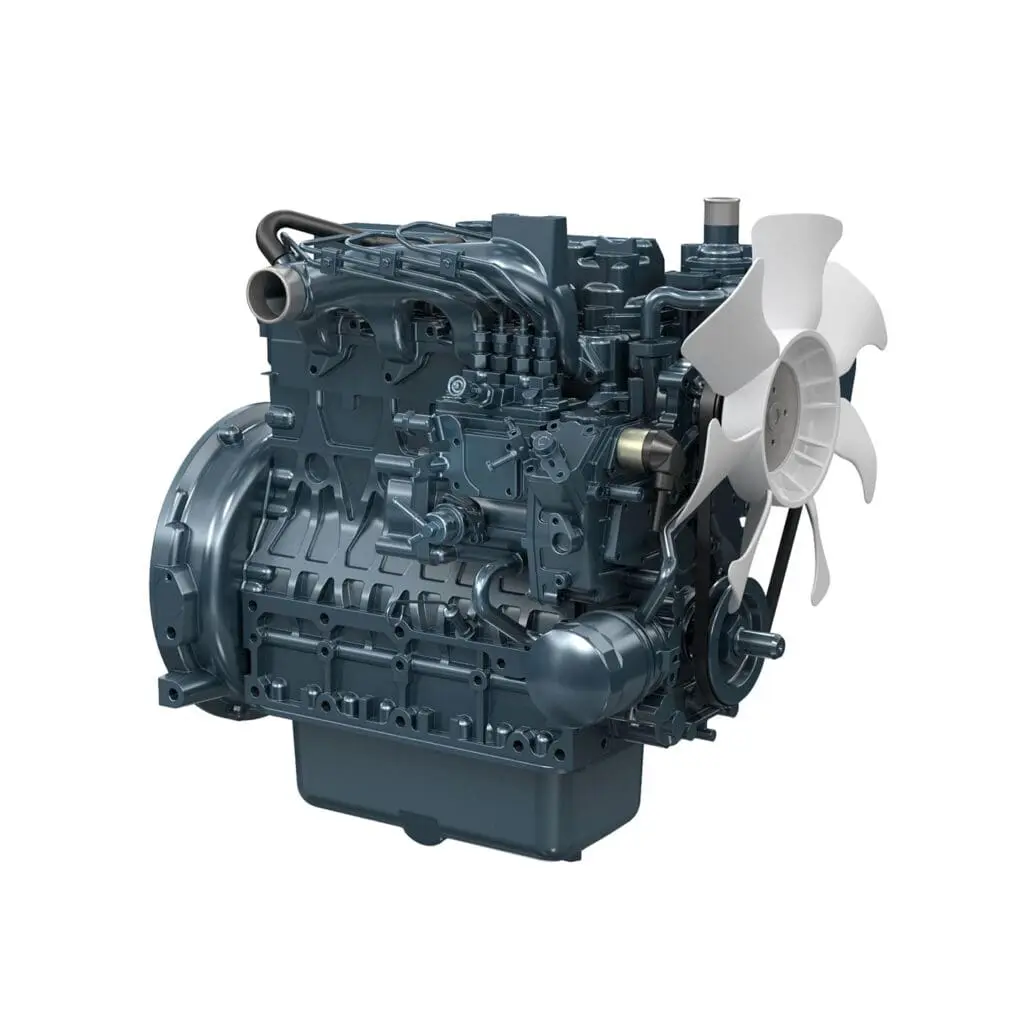

The Kubota V2203-M-E3B is a powerful 4-cylinder industrial diesel engine from the reliable Kubota 03 Series. This liquid-cooled 4-stroke diesel engine combines high performance, excellent durability and low emissions in a compact design for a variety of industrial applications.
With an output of 35.9 kW @ 2800 rpm and maximum torque of 143.2 Nm @ 1600 rpm, the V2203-M-E3B delivers strong performance at low engine speeds. Thanks to Kubota’s indirect injection technology, the engine benefits from efficient combustion, stable performance and low noise levels.
The Kubota V2203-M-E3B meets EPA/CARB Interim Tier 4 and EU Stage IIIA emissions standards without additional aftertreatment. In addition, the engine offers flexible side PTO capabilities for hydraulic applications, making it ideal for industrial machinery and equipment where reliability and versatility are key.
Kubota V2203-M-E3B
- Meets EU Stage V emissions standards
- Turbocharged with intercooler for maximum performance
- Common Rail fuel system for efficient combustion
- DOC + DPF aftertreatment integrated
- Automatic DPF regeneration at low rpm
- Very high torque at low speeds
- Compact design for easy integration
- Suitable for heavy industrial applications
- Stable performance under varying loads
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | V2203-M-E3B |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 35.9 kW @ 2800 rpm |
| Maximum torque / speed *1 | 143.2 Nm @ 1600 rpm |
| Cylinders | 4 |
| Emission | EPA/CARB Interim Tier 4 + EU Stage IIIA |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 87.0 x 92.4 mm (3.43 x 3.64 in) |
| Displacement L (cu.in) | 2.197 L (134.1 cu.in) |
| Aspiration | Naturally aspirated |
| Aftertreatment | No |
| Combustion system | Indirect injection |
| Fuel system | Inline fuel pump |
| Length x width x height mm (in) *2 | 642 x 495 x 679 mm (25.3 x 19.5 x 26.7 in) |
| Dry weight kg (lbs) *3 | 180 kg (397 lbs) |
| Series | Kubota 03 Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
