Kubota V2403-CR-E5
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

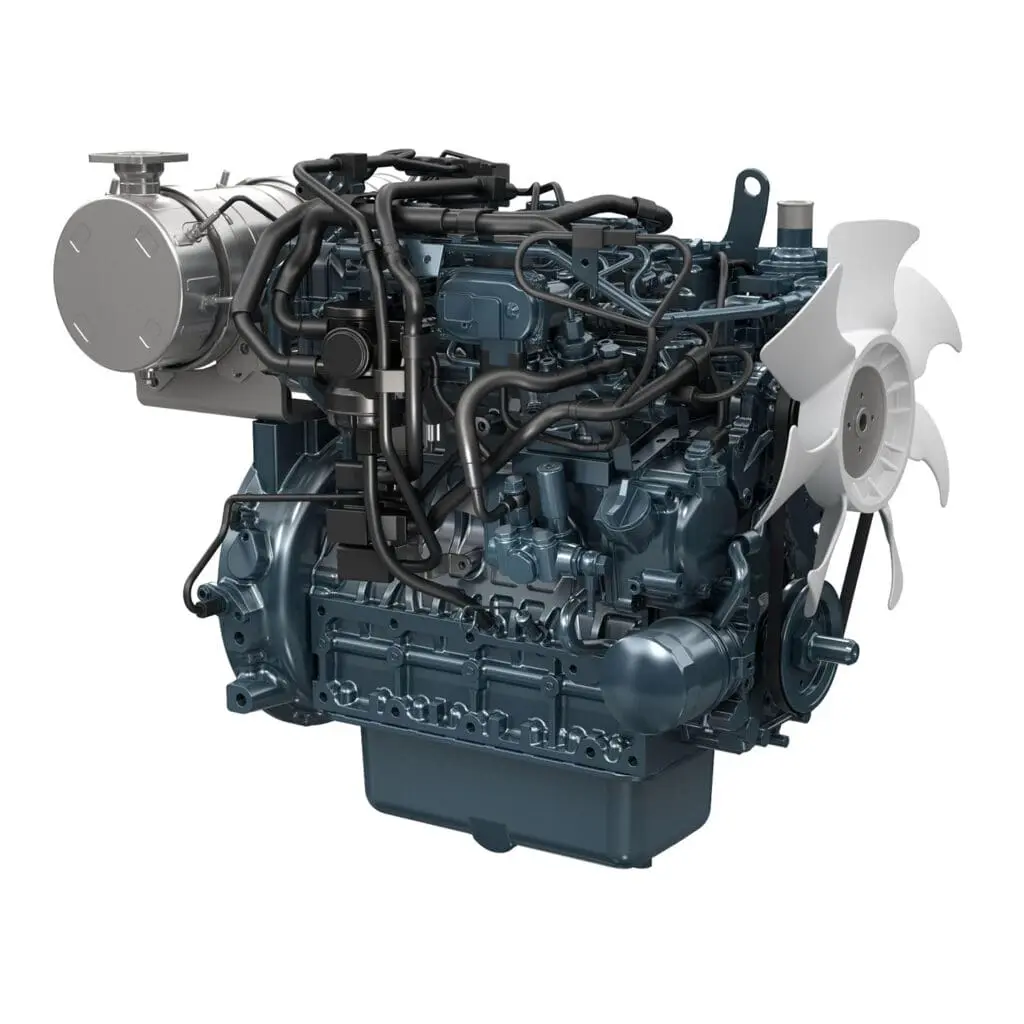

The Kubota V2403-CR-E5 is a powerful 4-cylinder industrial diesel engine from the Kubota 03 Series. This vertical water-cooled 4-stroke diesel engine combines Common Rail technology, low emissions and reliable performance for industrial applications.
With an output of 37.4 kW @ 2700 rpm and maximum torque of 159.8 Nm @ 1600 rpm, the V2403-CR-E5 delivers strong performance at low rpm. Thanks to the Common Rail fuel system, combustion is precisely controlled, ensuring efficient operation, higher fuel efficiency and quiet engine running.
The Kubota V2403-CR-E5 meets EPA/CARB Tier 4 and EU Stage V emissions standards. The engine is equipped with DOC + DPF aftertreatment. Kubota’s DPF technology supports automatic regeneration, even at low engine speeds, and helps reduce maintenance and downtime.
Kubota V2403-CR-E5
- Meets EU Stage V emissions standards
- Common Rail fuel system for efficient combustion
- DOC + DPF aftertreatment integrated
- Automatic DPF regeneration at low rpm
- High torque at low speeds
- Naturally aspirated engine
- Quiet and clean operation
- Compact design for easy integration
- Suitable for industrial applications
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | V2403-CR-E5 |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 37.4 kW @ 2700 rpm |
| Maximum torque / speed *1 | 37.4 kW @ 2700 rpm |
| Cylinders | 4 |
| Emission | EPA/CARB Tier 4 + EU Stage V |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 87.0 x 102.4 mm (3.43 x 4.031 in) |
| Displacement L (cu.in) | 2.434 L (148.5 cu.in) |
| Aspiration | Naturally aspirated |
| Aftertreatment | DOC + DPF |
| Combustion system | Direct injection |
| Fuel system | Common Rail system |
| Length x width x height mm (in) *2 | 646 x 540 x 711 mm (25.4 x 21.3 x 28.0 in) |
| Dry weight kg (lbs) *3 | 221 kg (487 lbs) |
| Series | Kubota 03 Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
