Kubota V2403-CR-TE5
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

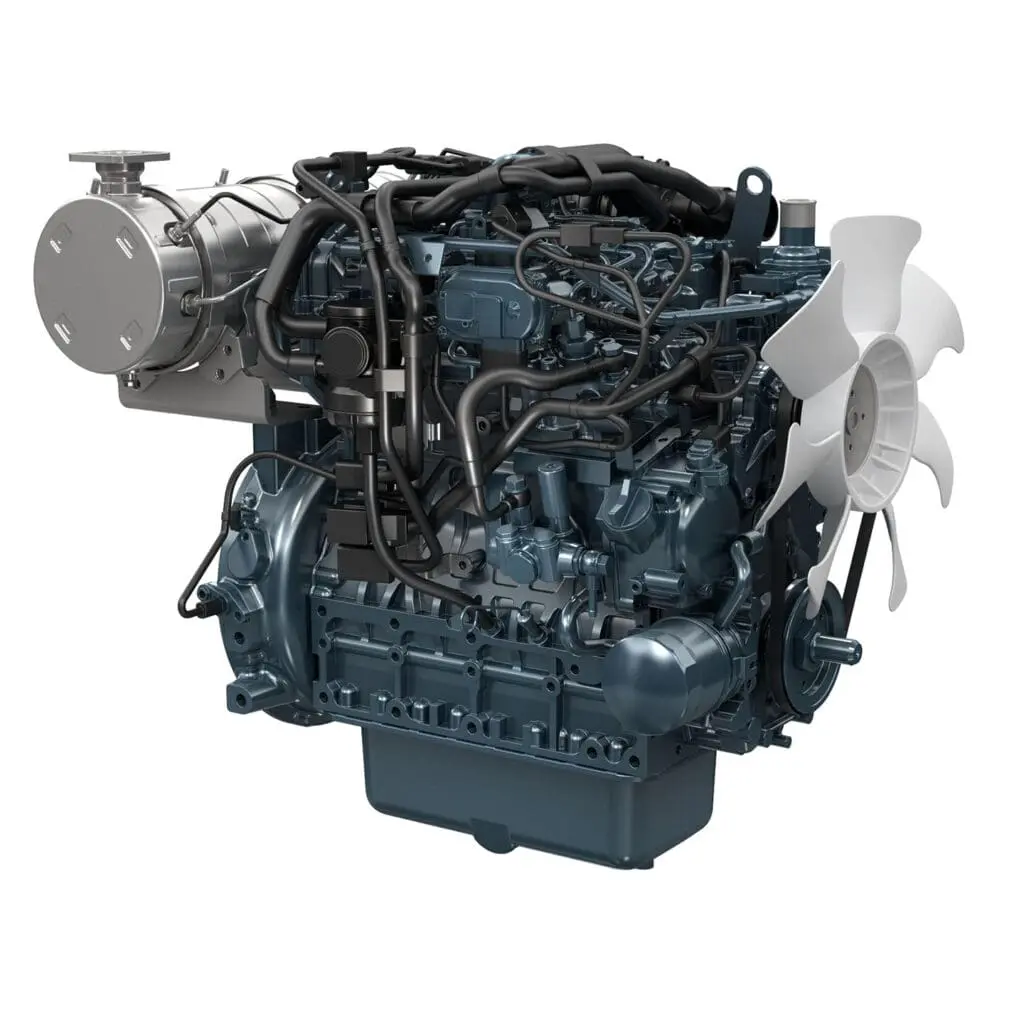

The Kubota V2403-CR-TE5 is a powerful turbocharged 4-cylinder industrial diesel engine from the Kubota 03 Series. This modern Common Rail diesel engine combines high performance, low emissions and advanced engine technology in a compact design for heavy-duty industrial applications.
With an output of 48.6 kW @ 2,700 rpm and maximum torque of 198.5 Nm @ 1,600 rpm, the V2403-CR-TE5 delivers impressive performance at low engine speeds. Thanks to the turbocharger and Common Rail fuel system, the engine benefits from quick response, efficient combustion and stable performance under varying loads.
The Kubota V2403-CR-TE5 meets EPA/CARB Tier 4 and EU Stage V emissions standards and features an integrated DOC + DPF aftertreatment system. Kubota’s advanced DPF technology supports automatic regeneration even at low engine speeds, extending service intervals and reducing downtime. Its compact design and high reliability make this engine ideal for heavy-duty industrial machinery and applications.
Kubota V2403-CR-TE5
- Meets EU Stage V emissions standards
- Turbocharged for high power density
- Common Rail fuel system for efficient combustion
- DOC + DPF aftertreatment integrated
- Automatic DPF regeneration at low rpm
- High torque at low speeds
- Compact design for easy integration
- Suitable for heavy industrial applications
- Stable performance under varying loads
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | V2403-CR-TE5 |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 48.6 kW @ 2700 rpm |
| Maximum torque / speed *1 | 198.5 Nm @ 1600 rpm |
| Cylinders | 4 |
| Emission | EPA/CARB Tier 4 + EU Stage V |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 87.0 x 102.4 mm (3.43 x 4.031 in) |
| Displacement L (cu.in) | 2.434 L (148.5 cu.in) |
| Aspiration | Turbocharged |
| Aftertreatment | DOC + DPF |
| Combustion system | Direct injection |
| Fuel system | Common Rail system |
| Length x width x height mm (in) *2 | 646 x 540 x 735 mm (25.4 x 21.3 x 28.9 in) |
| Length x width x height mm (in) *3 | 842 x 540 x 735 mm (33.1 x 21.3 x 28.9 in) |
| Dry weight kg (lbs) *3 | 233 kg (514 lbs) |
| Series | Kubota 03 Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
