Kubota V2403-CR-TI-E5
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

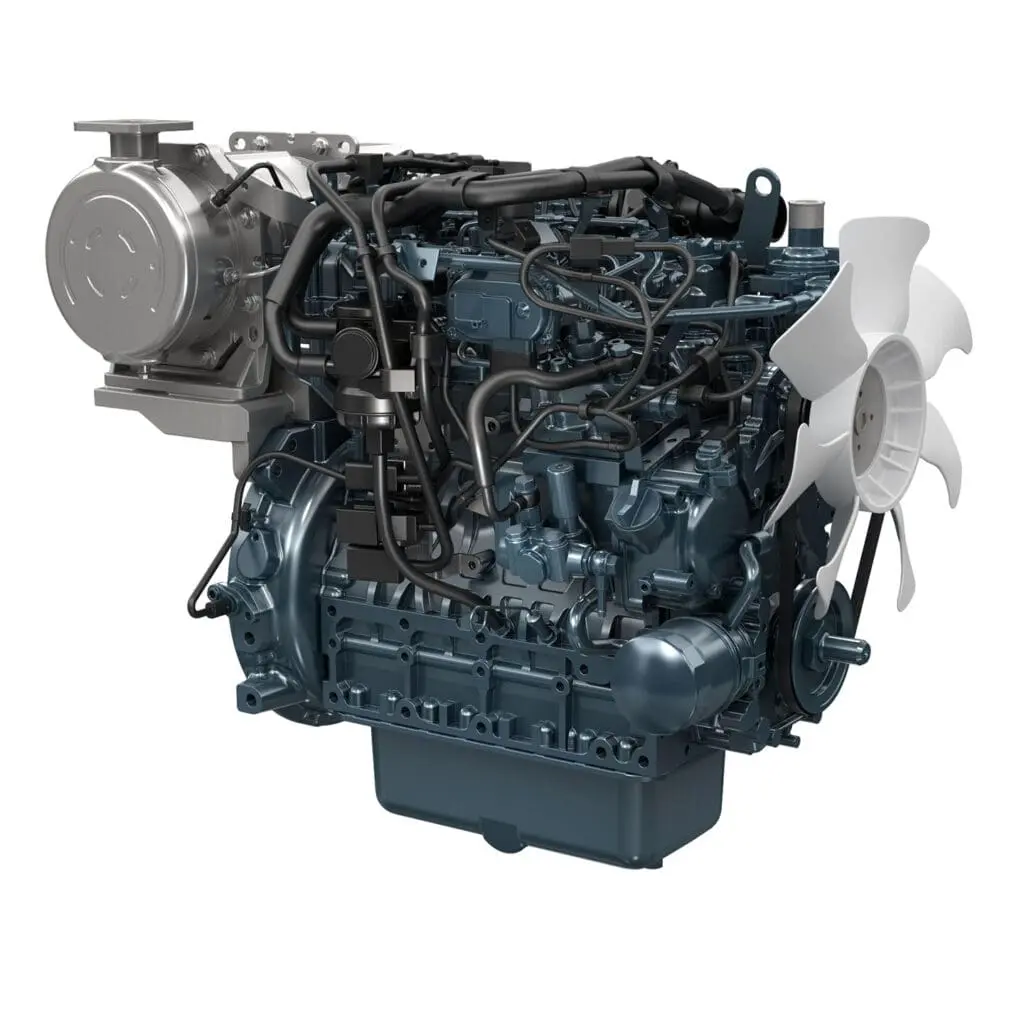

The Kubota V2403-CR-TI-E5 is a powerful turbocharged 4-cylinder industrial diesel engine from the Kubota 03 Series. This advanced Common Rail diesel engine combines high performance, low emissions and modern engine technology in a compact design for heavy-duty industrial applications.
With an output of 55.4 kW @ 2700 rpm and maximum torque of 248.7 Nm @ 1600 rpm, the V2403-CR-TI-E5 delivers exceptional performance at low rpm. Thanks to the intercooler turbocharger and Common Rail fuel system, the engine benefits from quick response, efficient combustion and stable performance under heavy load.
The Kubota V2403-CR-TI-E5 meets EPA/CARB Tier 4 and EU Stage V emissions standards and features an integrated DOC + DPF aftertreatment system. Kubota’s advanced DPF technology supports automatic regeneration at low engine speeds, extending service intervals and reducing downtime. Its compact design and high reliability make this engine ideal for heavy industrial machinery and applications where maximum performance is required.
Kubota V2403-CR-TI-E5
- Meets EU Stage V emissions standards
- Turbocharged + intercooler for maximum power density
- Common Rail fuel system for efficient combustion
- DOC + DPF aftertreatment integrated
- Automatic DPF regeneration at low rpm
- Very high torque at low speeds
- Compact design for easy integration
- Suitable for heavy industrial applications
- Stable performance under varying loads
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | V2403-CR-TI-E5 |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 55.4 kW @ 2700 rpm |
| Maximum torque / speed *1 | 248.7 Nm @ 1600 rpm |
| Cylinders | 4 |
| Emission | EPA/CARB Tier 4 + EU Stage V |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 87.0 x 102.4 mm (3.43 x 4.031 in) |
| Displacement L (cu.in) | 2.434 L (148.5 cu.in) |
| Aspiration | Turbocharged + Turbo After Cooler |
| Aftertreatment | DOC + DPF |
| Combustion system | Direct injection |
| Fuel system | Common Rail system |
| Length x width x height mm (in) *2 | 701 x 522 x 623 mm (27.6 x 20.6 x 24.5 in) |
| Length x width x height mm (in) *3 | 723 x 522 x 833 mm (28.5 x 20.6 x 32.8 in) |
| Dry weight kg (lbs) *3 | 272 kg (600 lbs) |
| Series | Kubota 03 Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
