Kubota V2403-M-E3B
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

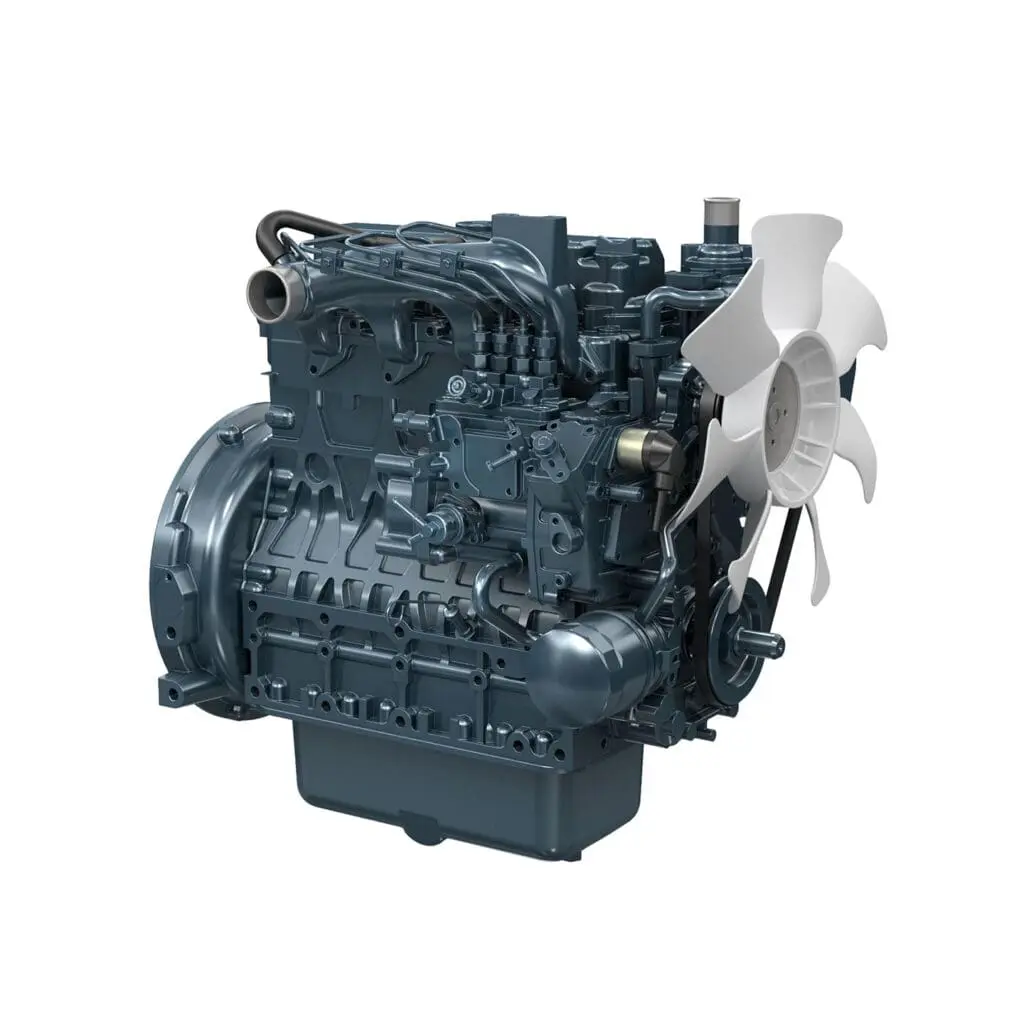

The Kubota V2403-M-E3B is a powerful 4-cylinder industrial diesel engine from the Kubota 03 Series. This vertical water-cooled 4-stroke diesel engine is designed for industrial applications where reliability, flexibility and sustained performance are important.
With an output of 36.5 kW @ 2700 rpm and maximum torque of 158.6 Nm @ 1600 rpm, the V2403-M-E3B delivers strong performance at low rpm. The engine is naturally aspirated and uses indirect injection with an inline fuel pump, ensuring stable combustion and reliable performance under load.
The Kubota V2403-M-E3B meets EPA/CARB Interim Tier 4 and EU Stage IIIA emissions standards. The engine requires no aftertreatment and offers practical integration options, including side PTO options for hydraulic applications. The robust Kubota 03 Series base makes this engine suitable for a variety of industrial machines.
Kubota V2403-M-E3B
- Meets EPA/CARB Interim Tier 4 + EU Stage IIIA
- Reliable 4-cylinder industrial diesel engine
- High torque at low speeds
- Naturally aspirated engine
- No post-treatment required
- Indirect injection for reliable combustion
- Inline fuel pump for stable performance
- Side PTO options for hydraulic applications
- Vertical water-cooled 4-stroke diesel engine
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | V2403-M-E3B |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 36.5 kW @ 2700 rpm |
| Maximum torque / speed *1 | 36.5 kW @ 2700 rpm |
| Cylinders | 4 |
| Emission | EPA/CARB Interim Tier 4 + EU Stage IIIA |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 87.0 x 102.4 mm (3.43 x 4.031 in) |
| Displacement L (cu.in) | 2.434 L (148.5 cu.in) |
| Aspiration | Naturally aspirated |
| Aftertreatment | No |
| Combustion system | Indirect injection |
| Fuel system | Inline fuel pump |
| Length x width x height mm (in) *2 | 646 x 495 x 684 mm (25.4 x 19.5 x 26.9 in) |
| Dry weight kg (lbs) *3 | 184 kg (406 lbs) |
| Series | Kubota 03 Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
