Kubota V2403-M-T-E3B
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

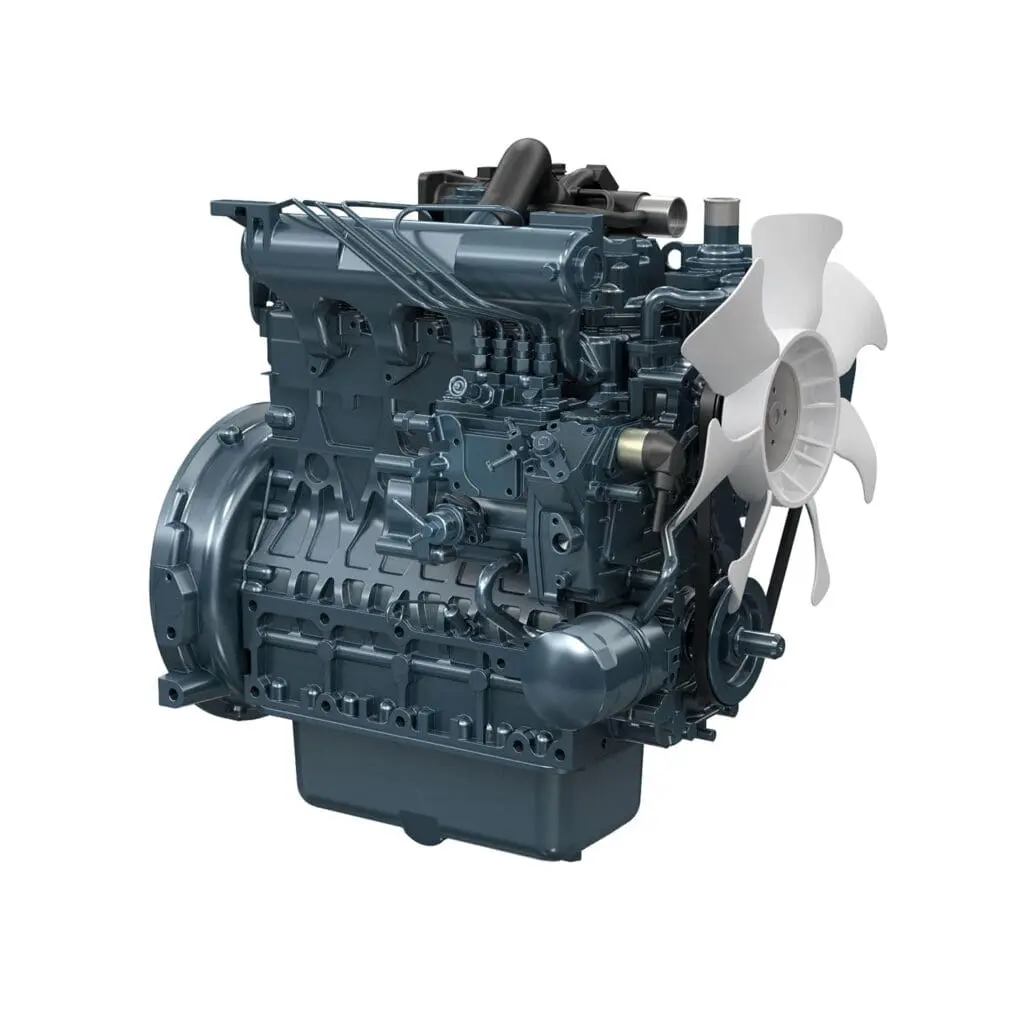

The Kubota V2403-M-T-E3B is a powerful turbocharged 4-cylinder industrial diesel engine from the Kubota 03-M Series. This liquid-cooled 4-stroke diesel engine combines high performance, excellent durability and low emissions in a compact design for heavy-duty industrial applications.
With an output of 48.5 kW @ 2700 rpm and maximum torque of 198.0 Nm @ 1600 rpm, the V2403-M-T-E3B delivers strong performance at low rpm. Thanks to the turbocharger and direct injection technology, the engine benefits from efficient combustion, quick response and stable performance under heavy load.
The Kubota V2403-M-T-E3B meets EPA/CARB Interim Tier 4 and EU Stage IIIA emission standards without additional aftertreatment. In addition, its compact design, robust construction and flexible PTO configurations ensure that this engine can be easily integrated into a variety of industrial machines and applications.
Kubota V2403-M-T-E3B
- Turbocharged for high power density
- High torque at low speeds
- Direct injection for efficient combustion
- Compact design for easy integration
- Suitable for heavy industrial applications
- No post-treatment required
- Quiet and low-vibration design
- Stable performance under varying loads
- Flexible PTO capabilities
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | V2403-M-T-E3B |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 48.5 kW @ 2700 rpm |
| Maximum torque / speed *1 | 198.0 Nm @ 1600 rpm |
| Cylinders | 4 |
| Emission | EPA/CARB Interim Tier 4 + EU Stage IIIA |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 87.0 x 102.4 mm (3.43 x 4.03 in) |
| Displacement L (cu.in) | 2.434 L (148.5 cu.in) |
| Aspiration | Turbocharged |
| Aftertreatment | No |
| Combustion system | Direct injection |
| Fuel system | Inline fuel pump |
| Length x width x height mm (in) *2 | 662 x 496 x 682 mm (26.1 x 19.5 x 26.9 in) |
| Dry weight kg (lbs) *3 | 205 kg (452 lbs) |
| Series | Kubota 03 Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
