Kubota V3307-DI-T-E3B
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

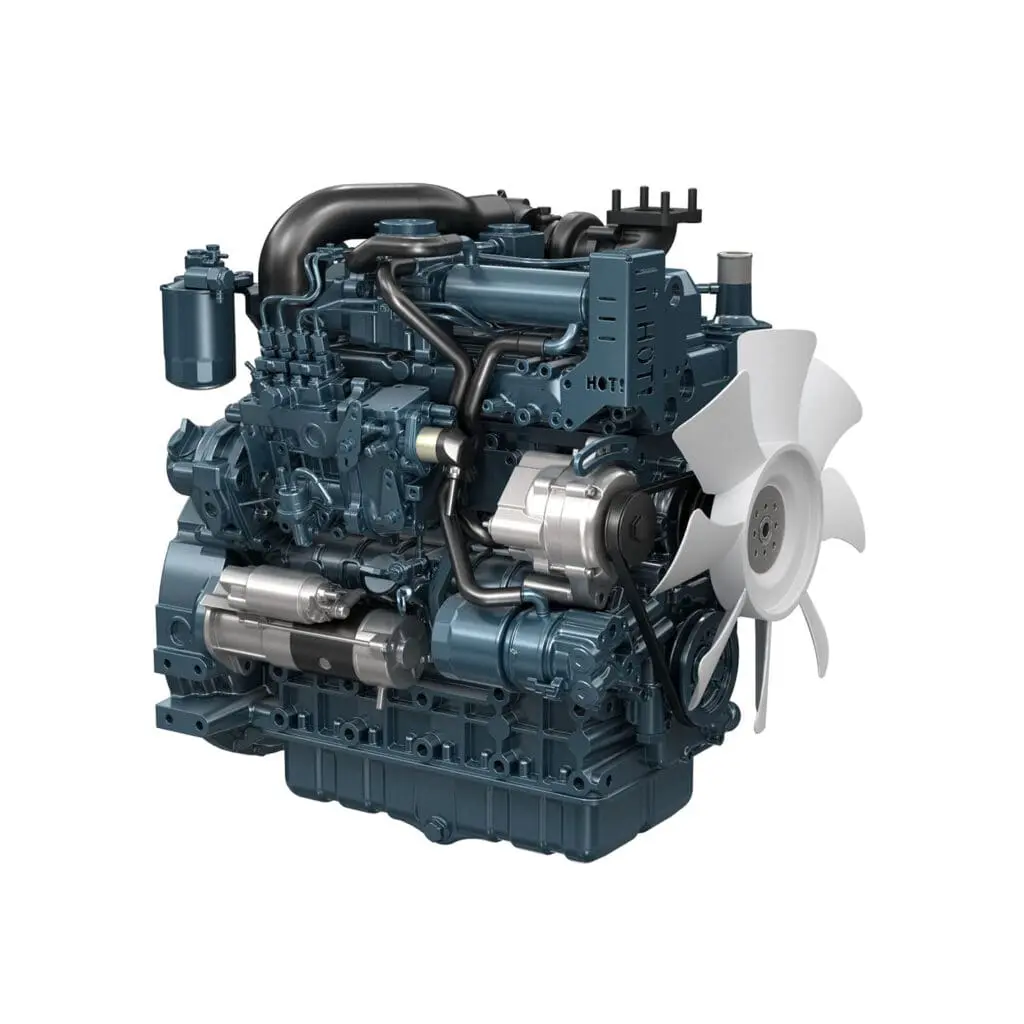

The Kubota V3307-DI-T-E3B is a powerful 4-cylinder industrial diesel engine from the Kubota 07 Series. This vertical water-cooled 4-stroke diesel engine is designed for industrial applications where reliability, high torque and compact installation are important.
With an output of 55.4 kW @ 2600 rpm and maximum torque of 265.0 Nm @ 1600 rpm, the V3307-DI-T-E3B delivers strong performance at low rpm. The engine uses direct injection and an inline fuel pump, ensuring stable performance, efficient combustion and reliable operation under load.
The Kubota V3307-DI-T-E3B meets EPA/CARB Interim Tier 4 and EU Stage IIIA emissions standards. According to the Kubota PDF, emissions are reduced with minimal additional systems, including a compact cooled EGR system. In addition, the Kubota 07 Series offers practical options such as side PTO and different fan positions for flexible integration into machines.
Kubota V3307-DI-T-E3B
- Meets EPA/CARB Interim Tier 4 + EU Stage IIIA
- Turbocharged for high power density
- Direct injection for efficient combustion
- High torque at low speeds
- Compact cooled EGR system
- No post-treatment required
- Inline fuel pump for stable performance
- Side PTO option available
- Suitable for heavy industrial applications
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | V3307-DI-T-E3B |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 55.4 kW @ 2600 rpm |
| Maximum torque / speed *1 | 265.0 Nm @ 1600 rpm |
| Cylinders | 4 |
| Emission | EPA/CARB Interim Tier 4 + EU Stage IIIA |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 94.0 x 120.0 mm (3.70 x 4.724 in) |
| Displacement L (cu.in) | 3.331 L (203.3 cu.in) |
| Aspiration | Turbocharged |
| Aftertreatment | No |
| Combustion system | Direct injection |
| Fuel system | Inline fuel pump |
| Length x width x height mm (in) *2 | 655 x 500 x 739 mm (25.8 x 19.7 x 29.1 in) |
| Dry weight kg (lbs) *3 | 268 kg (591 lbs) |
| Series | Kubota 07 Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
