Kubota V3307-CR-T-E5
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

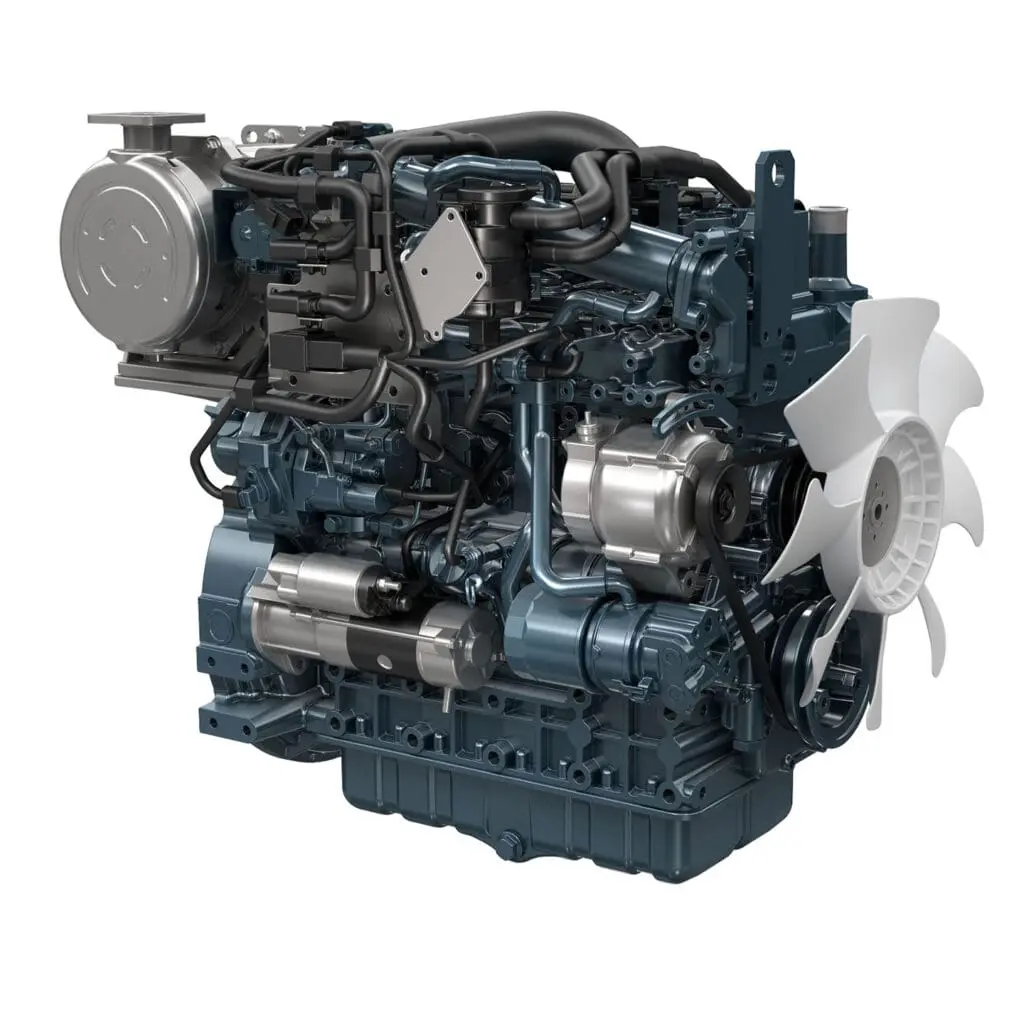

The Kubota V3307-CR-T-E5 is a powerful turbocharged 4-cylinder industrial diesel engine from the Kubota 07 Series. This vertical water-cooled 4-stroke diesel engine combines Common Rail technology, high performance and low emissions for heavy-duty industrial applications.
With a power output of 55.4 kW @ 2600 rpm and maximum torque of 265.0 Nm @ 1500 rpm, the V3307-CR-T-E5 delivers strong performance at low rpm. Thanks to the Common Rail fuel system, combustion is precisely controlled, while the turbocharger ensures high power density and reliable performance under load.
The Kubota V3307-CR-T-E5 meets EPA/CARB Tier 4 and EU Stage V emissions standards. The engine is equipped with DOC + DPF aftertreatment. Kubota’s DPF technology supports automatic regeneration at low engine speeds and helps reduce maintenance and downtime.
Kubota V3307-CR-T-E5
- Meets EU Stage V emissions standards
- Turbocharged for high power density
- Common Rail fuel system for efficient combustion
- DOC + DPF aftertreatment integrated
- Automatic DPF regeneration at low rpm
- High torque at low speeds
- Compact design for easy integration
- Suitable for heavy industrial applications
- Stable performance under varying loads
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | V3307-CR-T-E5 |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 55.4 kW @ 2600 rpm |
| Maximum torque / speed *1 | 265.0 Nm @ 1500 rpm |
| Cylinders | 4 |
| Emission | EPA/CARB Tier 4 + EU Stage V |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 94.0 x 120.0 mm (3.70 x 4.724 in) |
| Displacement L (cu.in) | 3.331 L (203.3 cu.in) |
| Aspiration | Turbocharged |
| Aftertreatment | DOC + DPF |
| Combustion system | Direct injection |
| Fuel system | Common Rail system |
| Length x width x height mm (in) *2 | 752 x 561 x 655 mm (29.6 x 22.1 x 25.8 in) |
| Length x width x height mm (in) *3 | 752 x 561 x 856 mm (29.6 x 22.1 x 33.7 in) |
| Dry weight kg (lbs) *3 | 305 kg (672 lbs) |
| Series | Kubota 07 Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
