Kubota V3307-CR-TI-E5
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

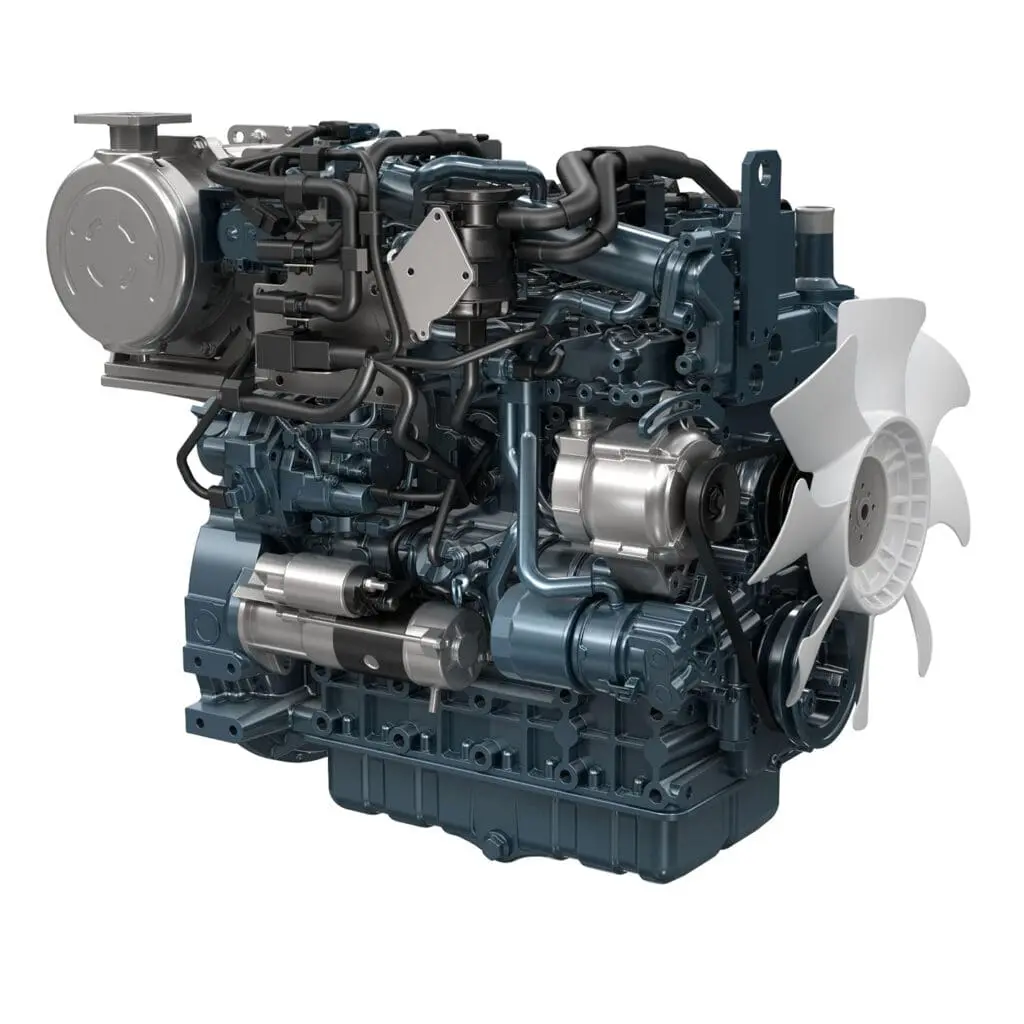

The Kubota V3307-CR-TI-E5 is a powerful 4-cylinder industrial diesel engine from the Kubota 07 Series. This vertical water-cooled 4-stroke diesel engine combines Common Rail technology, turbocharging with aftercooler and a compact design for heavy-duty industrial applications.
With a power output of 55.4 kW @ 2600 rpm and maximum torque of 335.0 Nm @ 1400 rpm, the V3307-CR-TI-E5 delivers very strong performance at low rpm. Thanks to the Common Rail fuel system, combustion is precisely controlled, while the turbocharger with aftercooler ensures high power density, efficient performance and quieter engine running.
The Kubota V3307-CR-TI-E5 meets EPA/CARB Tier 4, EU Stage V and India BS V emissions standards. The engine is equipped with DOC + DPF aftertreatment. Kubota’s DPF technology supports automatic regeneration at low speeds, which helps reduce maintenance and downtime.
V3307-CR-TI-E5
- Meets EU Stage V emissions standards
- Turbocharged + Turbo After Cooler for high power density
- Common Rail fuel system for efficient combustion
- DOC + DPF aftertreatment integrated
- Automatic DPF regeneration at low rpm
- Very high torque at low speeds
- Compact design for easy integration
- Suitable for heavy industrial applications
- Stable performance under varying loads
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | V3307-CR-TI-E5 |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 55.4 kW @ 2600 rpm |
| Maximum torque / speed *1 | 335.0 Nm @ 1400 rpm |
| Cylinders | 4 |
| Emission | EPA/CARB Tier 4 + EU Stage V + India BS V |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 94.0 x 120.0 mm (3.70 x 4.724 in) |
| Displacement L (cu.in) | 3.331 L (203.3 cu.in) |
| Aspiration | Turbocharged + Turbo After Cooler |
| Aftertreatment | DOC + DPF |
| Combustion system | Direct injection |
| Fuel system | Common Rail system |
| Length x width x height mm (in) *2 | 655 x 557 x 730 mm (25.8 x 21.9 x 28.7 in) |
| Length x width x height mm (in) *3 | 856 x 557 x 749 mm (33.7 x 21.9 x 29.5 in) |
| Dry weight kg (lbs) *3 | 299 kg (659 lbs) |
| Series | Kubota 07 Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
