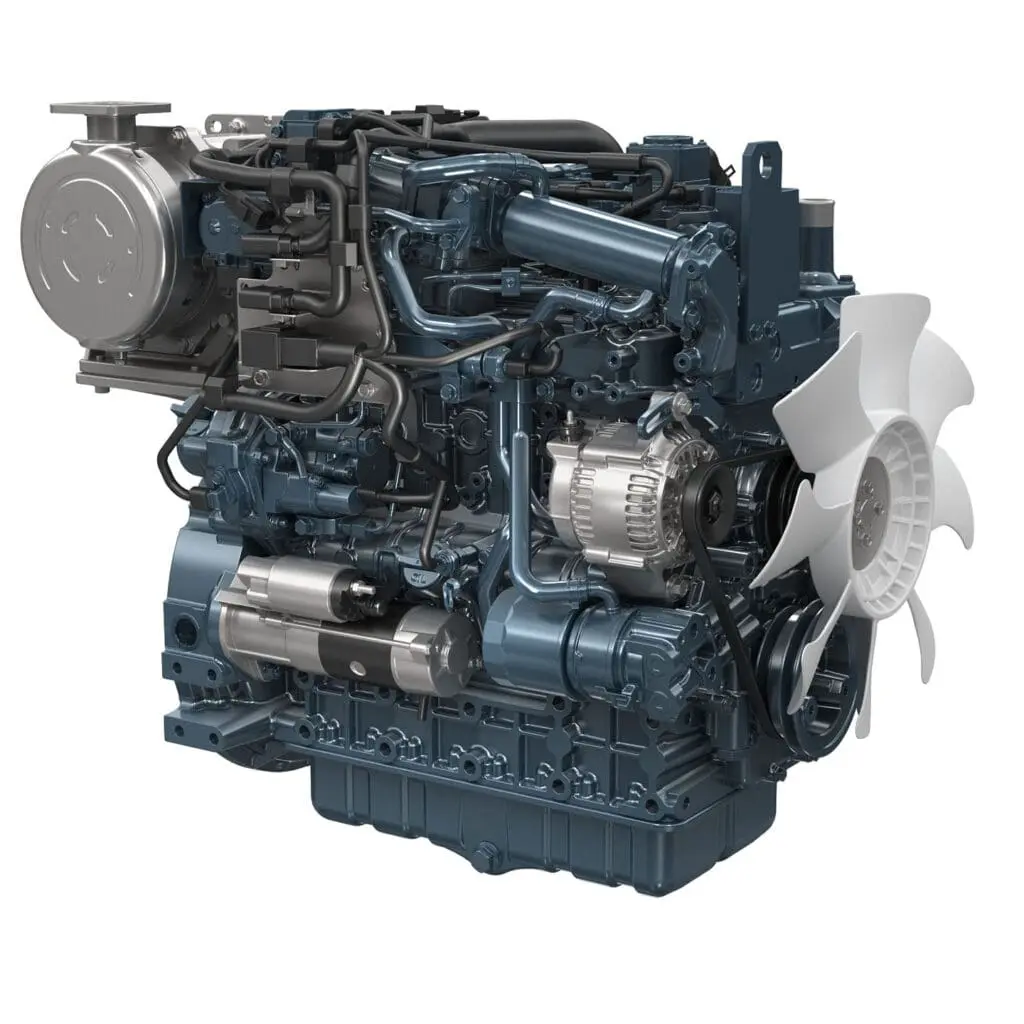

Kubota V3307-TE5A
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers
The Kubota V3307-TE5A is a powerful 4-cylinder industrial diesel engine from the Kubota 07 Series. This vertical water-cooled 4-stroke diesel engine combines turbocharging, Common Rail technology and a compact design for heavy-duty industrial applications.
With a power output of 55.4 kW @ 2600 rpm and maximum torque of 289.3 Nm @ 1500 rpm, the V3307-TE5A delivers strong performance at low rpm. Thanks to the Common Rail fuel system, combustion is precisely controlled, while the turbocharger ensures efficient performance, high power density and quiet engine running.
The Kubota V3307-TE5A meets EPA/CARB Tier 4, EU Stage V and China NR IV emissions standards. The engine is equipped with DOC + DPF aftertreatment. Kubota’s DPF technology supports automatic regeneration at low engine speeds, which helps reduce maintenance and downtime.
Kubota V3307-TE5A
- Meets EU Stage V emissions standards
- Turbocharged for high power density
- Common Rail fuel system for efficient combustion
- DOC + DPF aftertreatment integrated
- Automatic DPF regeneration at low rpm
- High torque at low speeds
- Compact design for easy integration
- Suitable for heavy industrial applications
- Stable performance under varying loads
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | V3307-TE5A |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 55.4 kW @ 2600 rpm |
| Maximum torque / speed *1 | 289.3 Nm @ 1500 rpm |
| Cylinders | 4 |
| Emission | EPA/CARB Tier 4 + EU Stage V + China NR IV |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 94.0 x 120.0 mm (3.70 x 4.724 in) |
| Displacement L (cu.in) | 3.331 L (203.3 cu.in) |
| Aspiration | Turbocharged |
| Aftertreatment | DOC + DPF |
| Combustion system | Direct injection |
| Fuel system | Common Rail system |
| Length x width x height mm (in) *3 | 859 x 561 x 749 mm (33.8 x 22.1 x 29.5 in) |
| Dry weight kg (lbs) *3 | 305 kg (672 lbs) |
| Series | Kubota 07 Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
