Kubota V3600-T-E3B
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

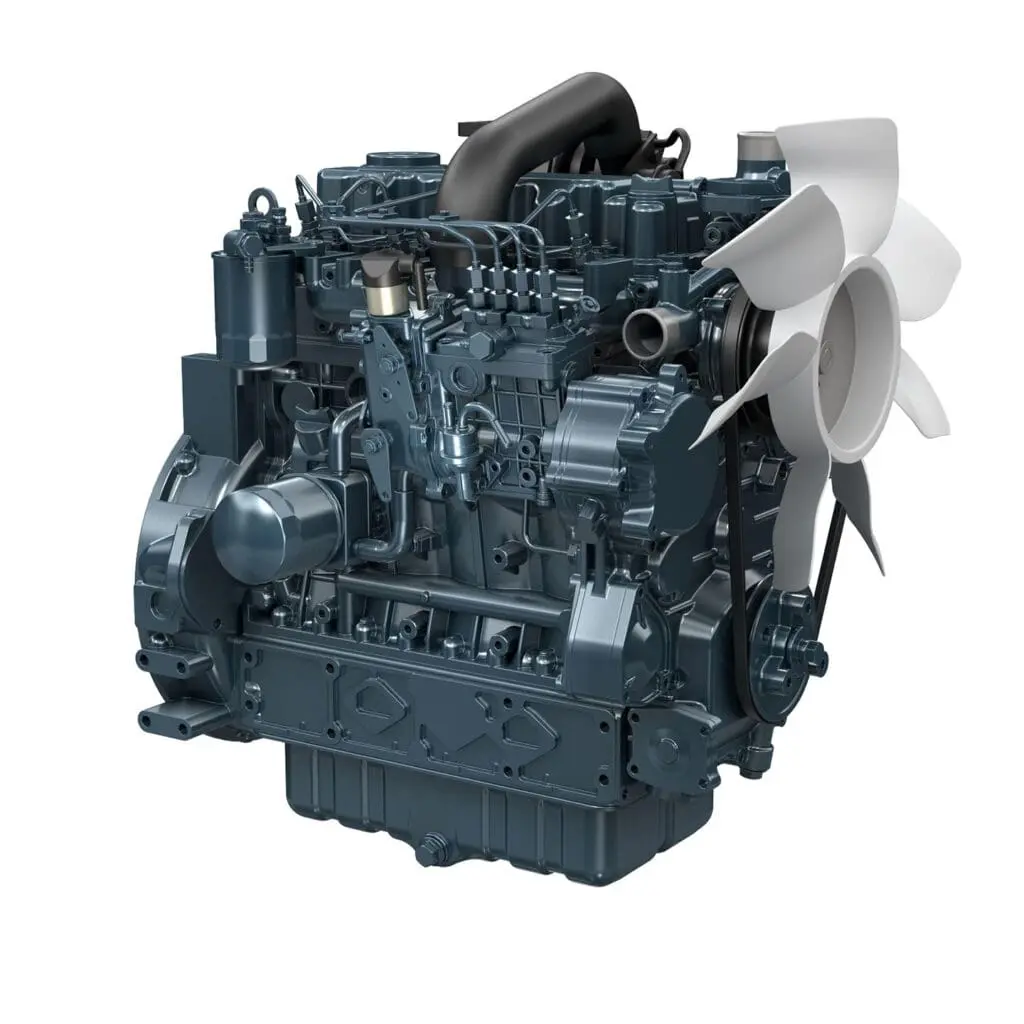

The Kubota V3600-T-E3B is a powerful turbocharged 4-cylinder industrial diesel engine from the Kubota V3 Series. This vertical water-cooled 4-stroke diesel engine combines high power density with reliable performance and a larger displacement than the V3300 Series.
With a power output of 63.0 kW @ 2600 rpm and maximum torque of 296.0 Nm @ 1600 rpm, the V3600-T-E3B delivers strong performance at low rpm. The turbocharger and robust engine design make this engine suitable for heavy industrial applications where power, durability and operational reliability are important.
The Kubota V3600-T-E3B meets EPA/CARB Tier 3 and EU Stage IIIA emissions standards. The engine has no aftertreatment and uses indirect injection with an inline fuel pump. In addition, fan positions at two heights are available for different machine configurations.
Kubota V3600-T-E3B
- Turbocharged for high power density
- High torque at low speeds
- Larger displacement than the V3300 series
- No post-treatment required
- Indirect injection for reliable combustion
- Inline fuel pump for stable performance
- Fan positions at two heights possible
- Suitable for heavy industrial applications
- Vertical water-cooled 4-stroke diesel engine
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | V3600-T-E3B |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 63.0 kW @ 2600 rpm |
| Maximum torque / speed *1 | 296.0 Nm @ 1600 rpm |
| Cylinders | 4 |
| Emission | EPA/CARB Tier 3 + EU Stage IIIA |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 98.0 x 120.0 mm (3.86 x 4.724 in) |
| Displacement L (cu.in) | 3.620 L (220.9 cu.in) |
| Aspiration | Turbocharged |
| Aftertreatment | No |
| Combustion system | Indirect injection |
| Fuel system | Inline fuel pump |
| Length x width x height mm (in) *2 | 699 x 537 x 794 mm (27.5 x 21.1 x 31.3 in) |
| Dry weight kg (lbs) *3 | 261 kg (575 lbs) |
| Series | Kubota V3 Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
