Kubota V3800DI-T-E3B
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

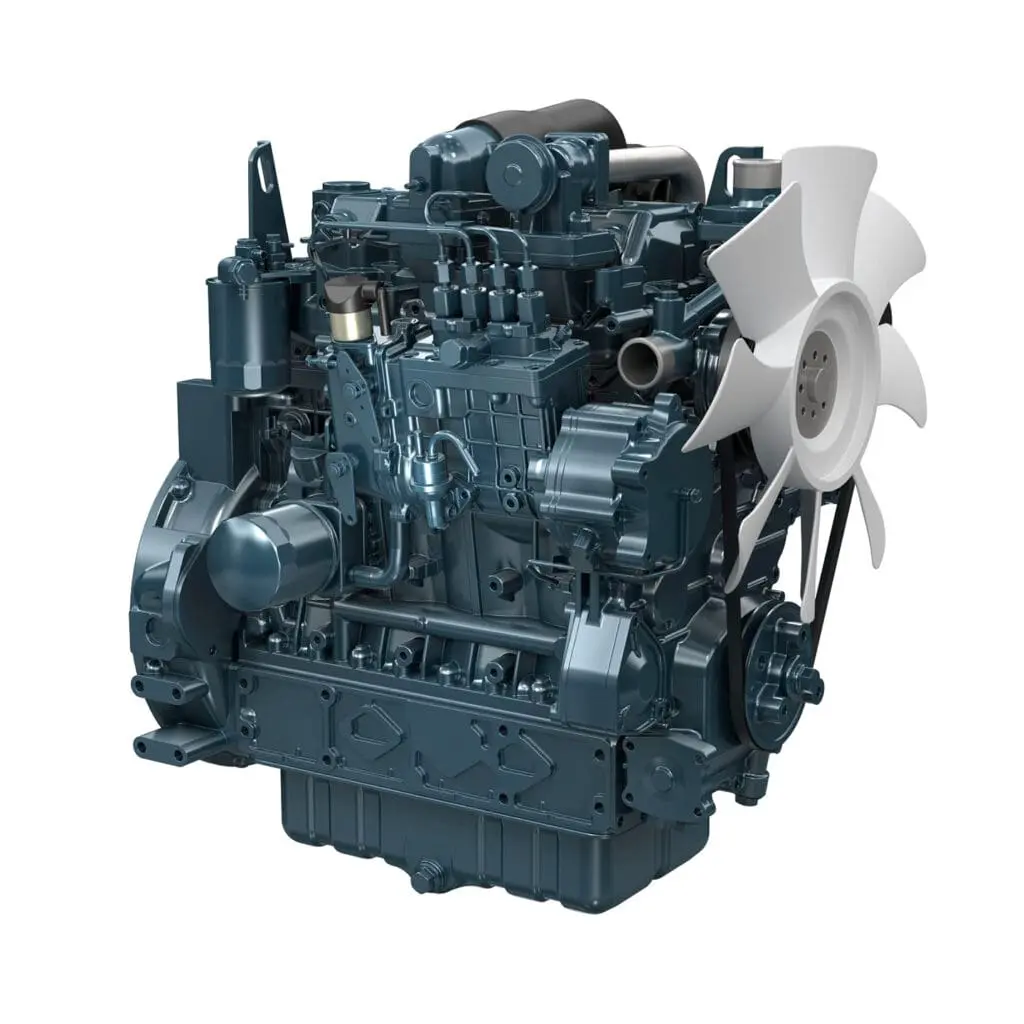

The Kubota V3800DI-T-E3B is a powerful 4-cylinder industrial diesel engine from the Kubota V3 Series. This vertical water-cooled 4-stroke diesel engine combines turbocharging, direct injection and rugged design for heavy-duty industrial applications.
With an output of 74.0 kW @ 2600 rpm and maximum torque of 325.0 Nm @ 1600 rpm, the V3800DI-T-E3B delivers strong performance at low rpm. The engine uses direct injection with an inline fuel pump, ensuring reliable combustion and stable performance under load.
The Kubota V3800DI-T-E3B meets EPA/CARB Tier 3 and EU Stage IIIA emissions standards. According to the Kubota PDF, the engine limits emissions with minimal additional systems, including cooled EGR, and without electronic control devices. This makes the engine suitable for applications where power, reliability and simplicity are important.
Kubota V3800DI-T-E3B
- Complies with EPA/CARB Tier 3 + EU Stage IIIA
- Turbocharged for high power density
- Direct injection for reliable combustion
- High torque at low speeds
- No post-treatment required
- Inline fuel pump for stable performance
- Cooled EGR for emission reduction
- Robust 4-cylinder engine from the V3 Series
- Suitable for heavy industrial applications
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | V3800DI-T-E3B |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 74.0 kW @ 2600 rpm |
| Maximum torque / speed *1 | 325.0 Nm @ 1600 rpm |
| Cylinders | 4 |
| Emission | EPA/CARB Tier 3 + EU Stage IIIA |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 100.0 x 120.0 mm (3.937 x 4.724 in) |
| Displacement L (cu.in) | 3.769 L (230.0 cu.in) |
| Aspiration | Turbocharged |
| Aftertreatment | No |
| Combustion system | Direct injection |
| Fuel system | Inline fuel pump |
| Length x width x height mm (in) *2 | 699 x 544 x 793 mm (27.5 x 21.4 x 31.2 in) |
| Dry weight kg (lbs) *3 | 275 kg (606 lbs) |
| Series | Kubota V3 Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
