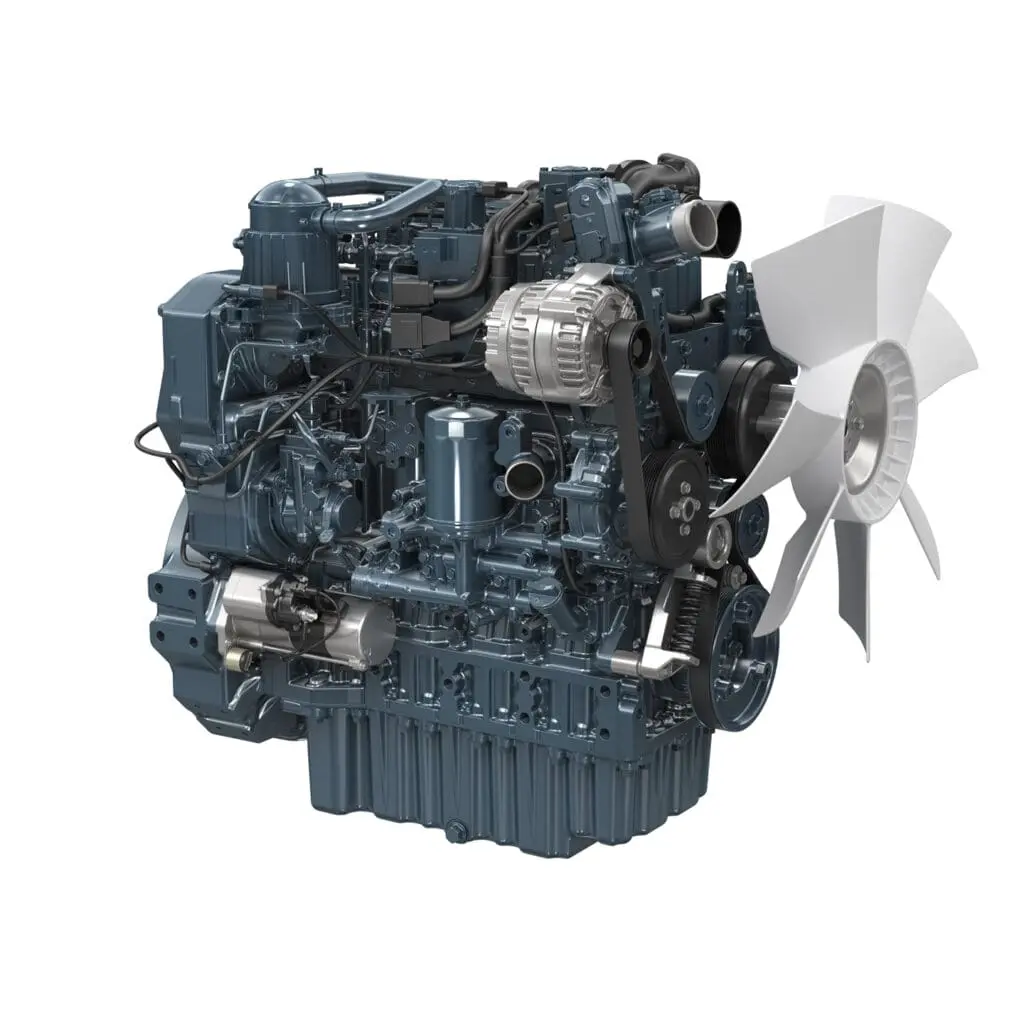

Kubota V5009-TIE5
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers
The Kubota V5009-TIE5 is a very powerful 4-cylinder industrial diesel engine from the Kubota 09 Series. This vertical water-cooled 4-stroke diesel engine combines high power density with modern emission technology, low fuel consumption and wide applicability for heavy industrial applications.
With output of 157.3 kW @ 2200 rpm and maximum torque of 883.1 Nm @ 1500 – 1600 rpm, the V5009-TIE5 delivers exceptional performance at low rpm. Thanks to the turbocharger with aftercooler and Common Rail fuel system, the engine benefits from efficient combustion, high pulling power and stable performance under heavy load.
The Kubota V5009-TIE5 meets EPA/CARB Tier 4 and EU Stage V emissions standards. To meet these stringent standards, the engine is equipped with DOC + DPF + SCR aftertreatment. In addition, this engine offers great flexibility for OEM integration, including 100% power take-off on both flywheel side and front and a side PTO for up to three hydraulic pumps.
Kubota V5009-TIE5
- Meets EU Stage V emissions standards
- Very high power output of 157.3 kW
- Turbocharged + Turbo After Cooler for high power density
- Common Rail fuel system for efficient combustion
- DOC + DPF + SCR aftertreatment integrated
- High torque at low speeds
- 100% power take-off on flywheel side and front side
- Side PTO suitable for up to three hydraulic pumps
- Easy maintenance through one-side maintenance
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | V5009-TIE5 |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 157.3 kW @ 2200 rpm |
| Maximum torque / speed *1 | 883.1 Nm @ 1500 - 1600 rpm |
| Cylinders | 4 |
| Emission | EPA/CARB Tier 4 + EU Stage V |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 110.0 x 132.0 mm (4.331 x 5.197 in) |
| Displacement L (cu.in) | 5.017 L (306.2 cu.in) |
| Aspiration | Turbocharged + Turbo After Cooler |
| Aftertreatment | DOC + DPF + SCR |
| Combustion system | Direct injection |
| Fuel system | Common Rail system |
| Length x width x height mm (in) *2 | 894 x 693 x 967 mm (35.2 x 27.3 x 38.1 in) |
| Dry weight kg (lbs) *3 | 652 kg (1437 lbs) |
| Series | Kubota 09 Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
