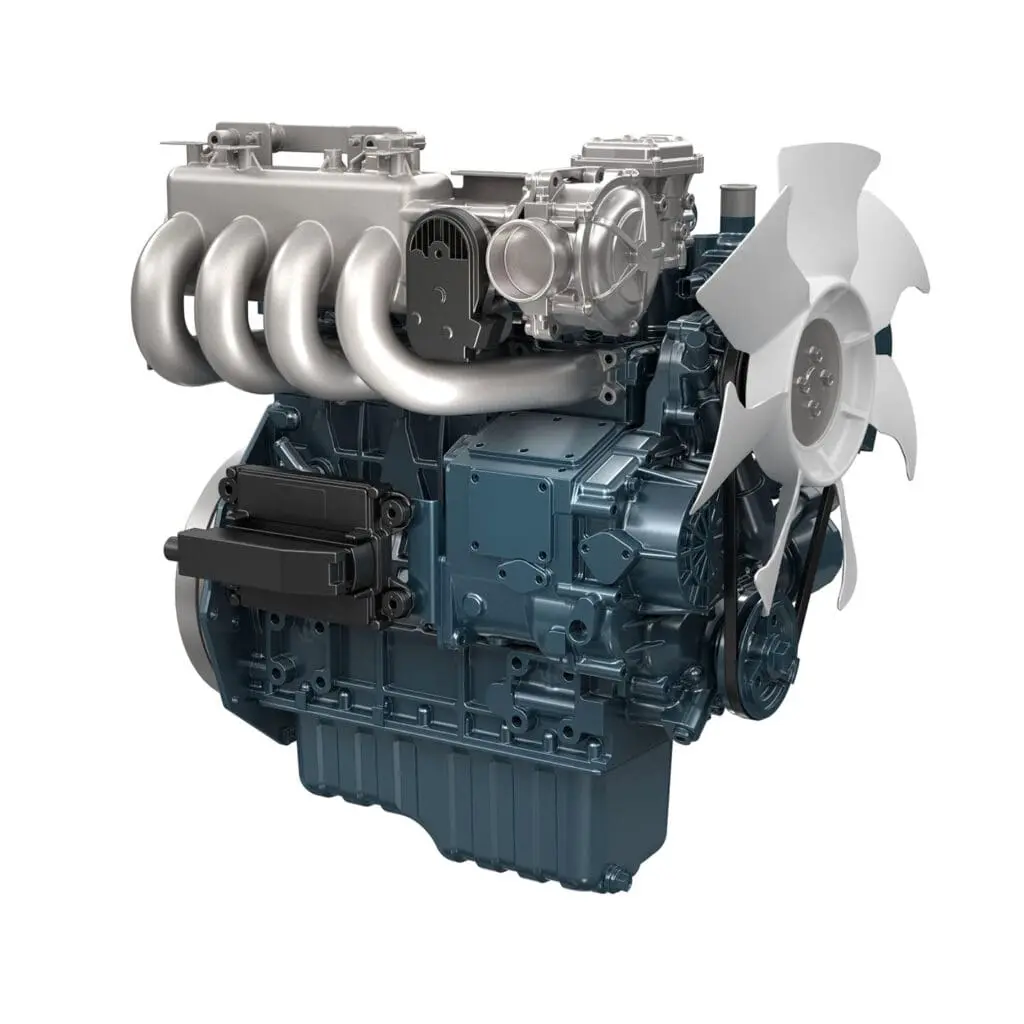

Kubota WG1605-G-E3
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers
The Kubota WG1605-G-E3 is a powerful 4-cylinder industrial gasoline engine from the Kubota WG Series. This vertical water-cooled 4-stroke spark ignited engine is designed for applications where clean combustion, reliability and strong performance are important.
With an output of 42.5 kW @ 3600 rpm and maximum torque of 120.0 Nm @ 2400 rpm, the WG1605-G-E3 delivers stable performance in a compact design. The engine is naturally aspirated and uses gasoline as fuel, making it suitable for industrial applications where a reliable gas engine solution is needed.
The Kubota WG1605-G-E3 meets EPA Tier 2, CARB Tier 3 and EU Stage V emissions standards. The engine is equipped with a three-way catalytic converter, effectively reducing emissions without compromising performance and uptime.
Kubota WG1605-G-E3
- Meets EU Stage V emissions standards
- Suitable for gasoline
- Powerful 4-cylinder industrial gas engine
- Three-way catalyst for emission reduction
- Naturally aspirated engine
- Stable power at 3600 rpm
- High torque at 2400 rpm
- Vertical water-cooled 4-stroke engine
- Suitable for industrial applications
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | WG1605-G-E3 |
| Application | Industrial |
| Fuel | Gasoline |
| Power *1 | 42.5 kW @ 3600 rpm |
| Maximum torque / speed *1 | 120.0 Nm @ 2400 rpm |
| Cylinders | 4 |
| Emission | EPA Tier 2 + CARB Tier 3 + EU Stage V |
| Type | Vertical water-cooled 4-stroke spark ignited engine |
| Bore and stroke mm (in) | 79.0 x 78.4 mm (3.11 x 3.09 in) |
| Displacement L (cu.in) | 1.537 L (93.79 cu.in) |
| Aspiration | Naturally aspirated |
| Aftertreatment | Three-way catalytic converter |
| Combustion system | Spark ignited |
| Fuel system | Gasoline |
| Length x width x height mm (in) *2 | 566 x 459 x 692 mm (22.3 x 18.1 x 27.2 in) |
| Dry weight kg (lbs) *3 | 120 kg (265 lbs) |
| Series | Kubota WG Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
