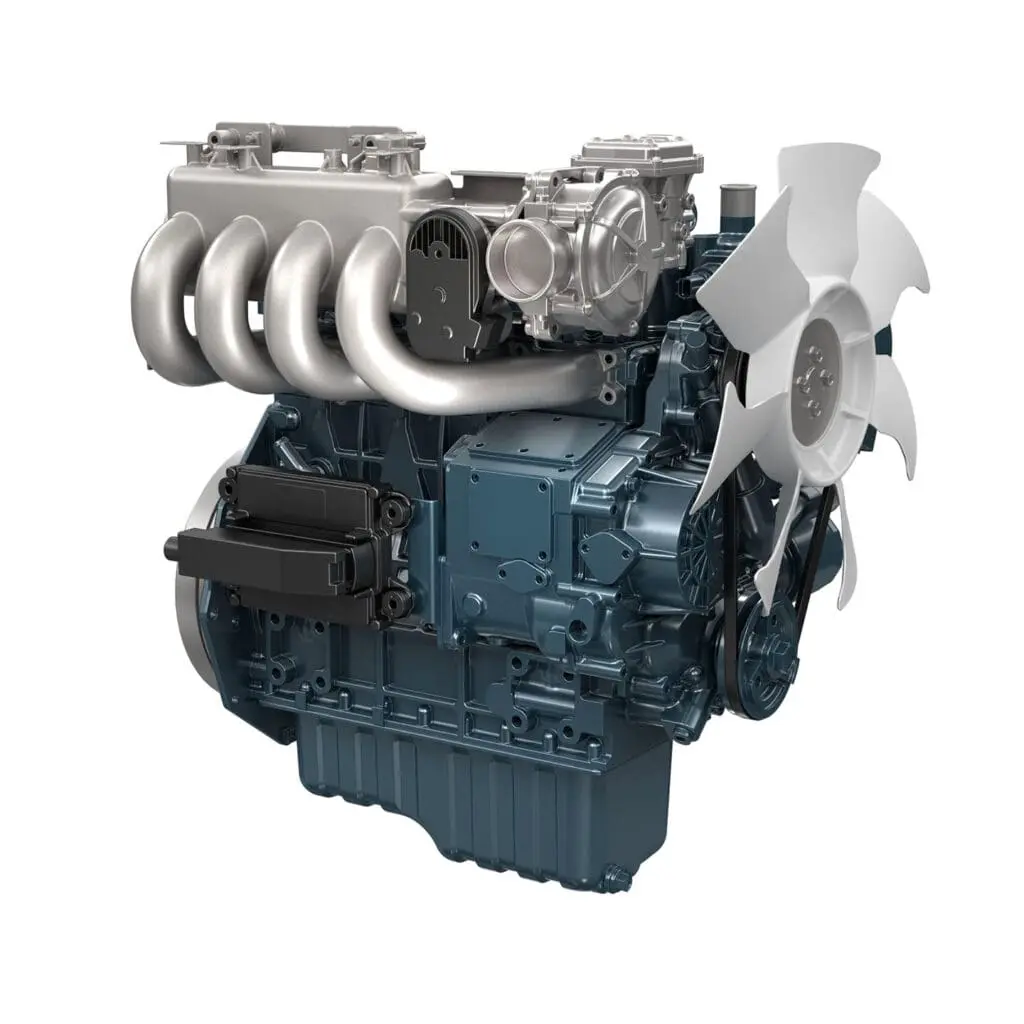

Kubota WG1605-GL-E3 (gasoline)
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers
The Kubota WG1605-GL-E3 is a powerful 4-cylinder industrial dual fuel engine from the Kubota WG Series. This vertical water-cooled 4-stroke spark ignited engine is designed for applications where fuel flexibility, low emissions and reliable performance are important.
In the gasoline version, the WG1605-GL-E3 delivers 42.5 kW @ 3600 rpm and maximum torque of 120.0 Nm @ 2400 rpm. The engine is naturally aspirated and suitable for industrial applications where a stable gasoline engine solution is required.
The Kubota WG1605-GL-E3 meets EPA Tier 2, CARB Tier 3 and EU Stage V emissions standards. Thanks to the three-way catalytic converter, emissions are effectively reduced while the engine remains low in noise and vibration.
Kubota WG1605-GL-E3
- Suitable for gasoline / gasoline
- Meets EU Stage V emissions standards
- Dual fuel engine with wide applicability
- Powerful 4-cylinder industrial gas engine
- Three-way catalyst for emission reduction
- Naturally aspirated engine
- Low noise level
- Low vibration
- Vertical water-cooled 4-stroke engine
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | WG1605-GL-E3 |
| Application | Industrial |
| Fuel | Gasoline |
| Power *1 | 42.5 kW @ 3600 rpm |
| Maximum torque / speed *1 | 120.0 Nm @ 2400 rpm |
| Cylinders | 4 |
| Emission | EPA Tier 2 + CARB Tier 3 + EU Stage V |
| Type | Vertical water-cooled 4-stroke spark ignited engine |
| Bore and stroke mm (in) | 79.0 x 78.4 mm (3.11 x 3.09 in) |
| Displacement L (cu.in) | 1.537 L (93.79 cu.in) |
| Aspiration | Naturally aspirated |
| Aftertreatment | Three-way catalytic converter |
| Combustion system | Spark ignited |
| Fuel system | Gasoline |
| Length x width x height mm (in) *2 | 566 x 459 x 692 mm (22.3 x 18.1 x 27.2 in) |
| Dry weight kg (lbs) *3 | 122 kg (269 lbs) |
| Series | Kubota WG Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
