Kubota WG2503-G-E3
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

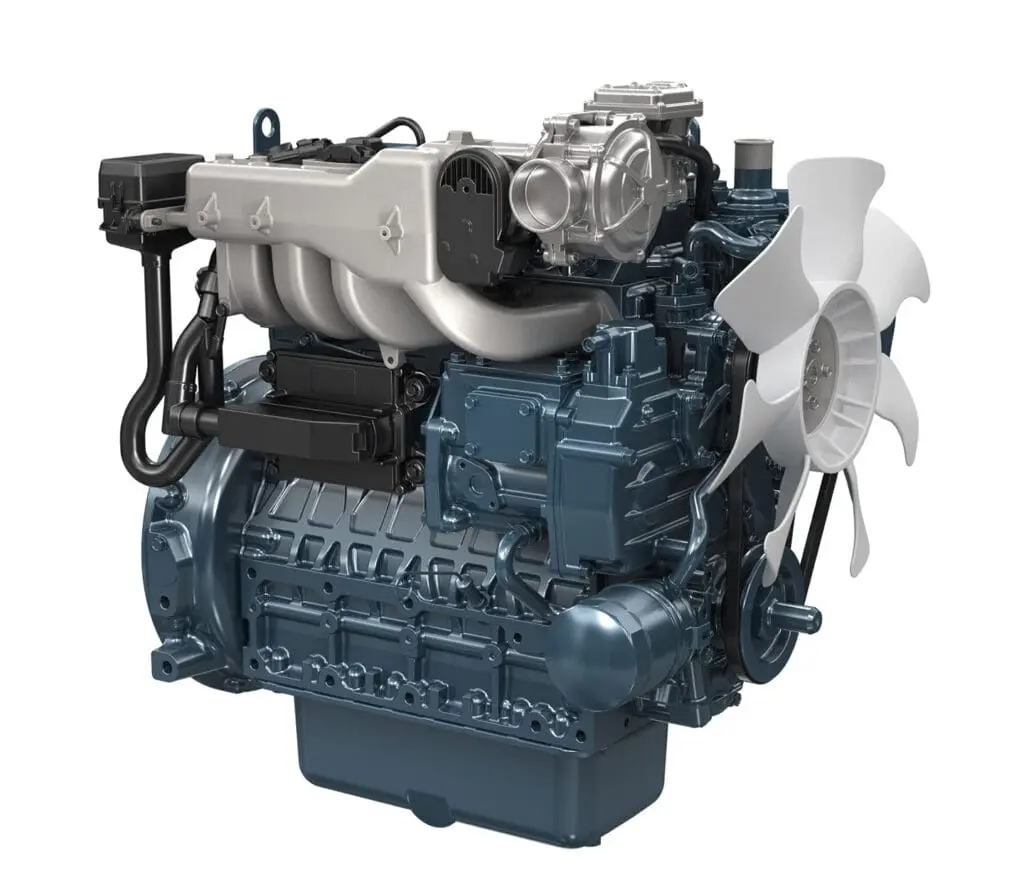

The Kubota WG2503-G-E3 is a powerful 4-cylinder industrial gasoline engine from the Kubota WG Series. This vertical water-cooled 4-stroke spark ignited engine is designed for applications where reliable performance, low emissions and quiet operation are important.
With an output of 45.5 kW @ 2700 rpm and maximum torque of 171.0 Nm @ 1800 rpm, the WG2503-G-E3 delivers strong performance at low rpm. The engine is based on the Kubota 03 Series diesel engines and offers similar reliability, with low noise and vibration levels.
The Kubota WG2503-G-E3 runs on gasoline and meets EPA Tier 2, CARB Tier 3 and EU Stage V emissions standards. Thanks to the three-way catalytic converter, emissions are effectively reduced while the engine remains suitable for a variety of industrial applications.
Kubota WG2503-G-E3
- Meets EU Stage V emissions standards
- Suitable for gasoline / gasoline
- Powerful 4-cylinder industrial gas engine
- Three-way catalyst for emission reduction
- High torque at low speeds
- Naturally aspirated engine
- Low noise level
- Low vibration
- Based on reliable Kubota 03 Series technology
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | WG2503-G-E3 |
| Application | Industrial |
| Fuel | Gasoline |
| Power *1 | 45.5 kW @ 2700 rpm |
| Maximum torque / speed *1 | 171.0 Nm @ 1800 rpm |
| Cylinders | 4 |
| Emission | EPA Tier 2 + CARB Tier 3 + EU Stage V |
| Type | Vertical water-cooled 4-stroke spark ignited engine |
| Bore and stroke mm (in) | 88.0 x 102.4 mm (3.46 x 4.031 in) |
| Displacement L (cu.in) | 2.491 L (152.0 cu.in) |
| Aspiration | Naturally aspirated |
| Aftertreatment | Three-way catalytic converter |
| Combustion system | Spark ignited |
| Fuel system | Gasoline |
| Length x width x height mm (in) *2 | 646 x 513 x 703 mm (25.4 x 20.2 x 27.7 in) |
| Dry weight kg (lbs) *3 | 195 kg (430 lbs) |
| Series | Kubota WG Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
