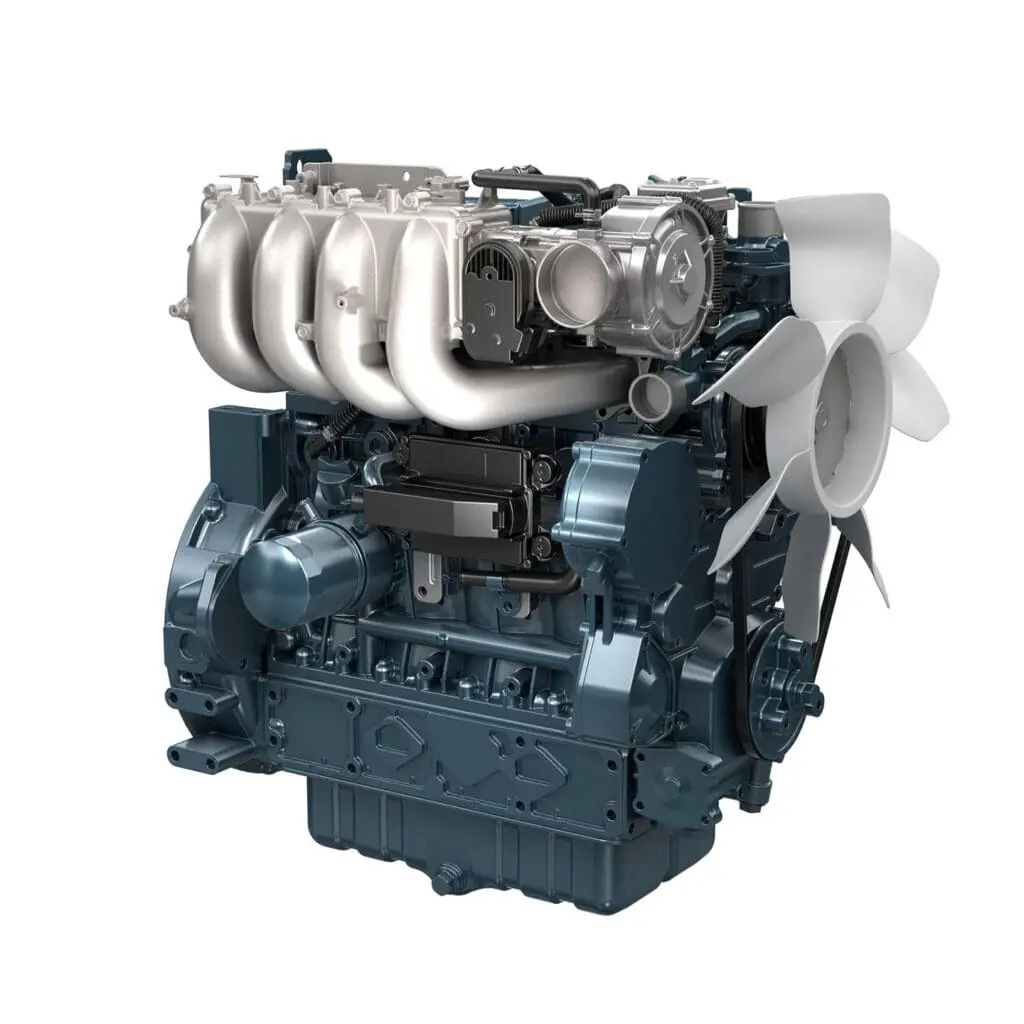

Kubota WG3800-G-E3
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers
The Kubota WG3800-G-E3 is a powerful 4-cylinder industrial gasoline engine from the Kubota WG Series. This vertical water-cooled 4-stroke spark ignited engine is designed for applications where high power, reliable performance and clean combustion are important.
The WG3800-G-E3 is available in two power versions: 65.0 kW @ 2600 rpm and 55.4 kW @ 2600 rpm. Both versions feature a displacement of 3.769 L, natural aspiration and a three-way catalytic converter. Thanks to its high torque of 256.0 Nm @ 1400 rpm, this engine delivers strong performance at low engine speeds.
The Kubota WG3800-G-E3 runs on gasoline and is suitable for heavy-duty industrial applications where a powerful gasoline engine is desired. The 55.4 kW version meets EPA Tier 2, CARB Tier 3 and EU Stage V, according to the official Kubota product page. The 65.0 kW version in PDF 113 lists EPA Tier 2 and CARB Tier 3.
Kubota WG3800-G-E3
- Powerful 4-cylinder industrial gasoline engine
- Available in 65.0 kW and 55.4 kW versions
- High torque of 256.0 Nm @ 1400 rpm
- Suitable for gasoline / gasoline
- Three-way catalyst for emission reduction
- Naturally aspirated engine
- Vertical water-cooled 4-stroke spark ignited engine
- Large displacement of 3,769 L
- Suitable for heavy industrial applications
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | WG3800-G-E3 |
| Application | Industrial |
| Fuel | Gasoline |
| Power *1 | 65.0 kW @ 2600 rpm + |
| Maximum torque / speed *1 | 256.0 Nm @ 1400 rpm 55.4 kW @ 2600 rpm |
| Cylinders | 4 |
| Emission | EPA Tier 2 + CARB Tier 3 / EU Stage V |
| Type | Vertical water-cooled 4-stroke spark ignited engine |
| Bore and stroke mm (in) | 100.0 x 120.0 mm (3.937 x 4.724 in) |
| Displacement L (cu.in) | 3.769 L (230.0 cu.in) |
| Aspiration | Naturally aspirated |
| Aftertreatment | Three-way catalytic converter |
| Combustion system | Spark ignited |
| Fuel system | Spark ignited |
| Length x width x height mm (in) *2 | 700 x 579 x 799 mm (27.6 x 22.8 x 31.5 in) |
| Dry weight kg (lbs) *3 | 288 kg (635 lbs) |
| Series | Kubota WG Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
