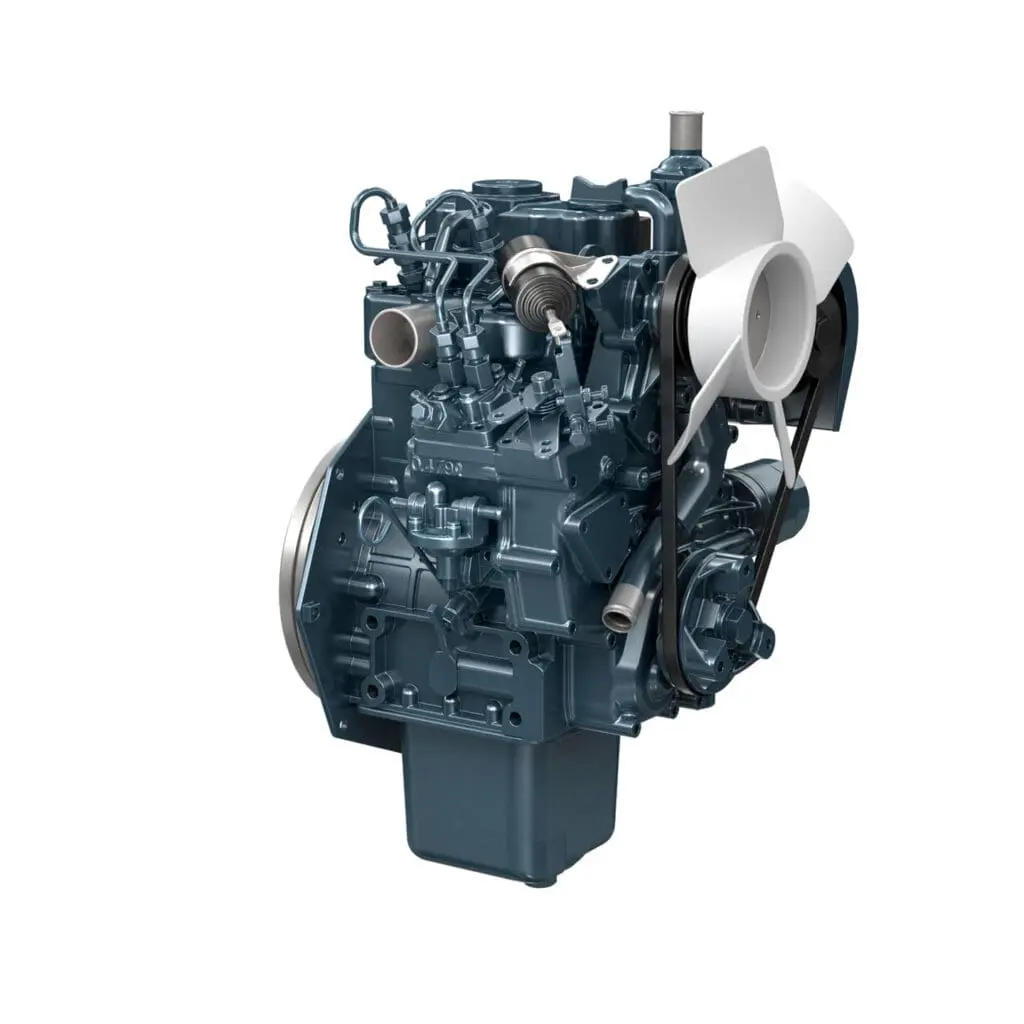

Kubota Z482-E4B
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers
The Kubota Z482-E4B is a compact and powerful 2-cylinder industrial diesel engine from the reliable Kubota Super Mini Series. This liquid-cooled 4-stroke diesel engine combines low emission values with excellent performance, low noise levels and a compact design. This makes the Z482-E4B ideal for applications where reliability, efficiency and space saving are key.
With an output of 9.9 kW at 3,600 rpm and maximum torque of 29.7 Nm, this engine delivers powerful performance for a variety of industrial machines and installations. Thanks to Kubota’s Three Vortex Combustion System (TVCS) combustion technology, the engine benefits from efficient combustion, low fuel consumption and reduced particulate emissions.
The Kubota Z482-E4B meets both EPA/CARB Tier 4 and EU Stage V emissions standards and does not require additional aftertreatment. The engine also features an inline fuel pump and rugged construction for long-term professional use in harsh conditions.
Kubota Z482-E4B
- Meets EU Stage V emissions standards
- Compact 2-cylinder diesel engine
- Quiet and low-vibration design
- Low fuel consumption thanks to TVCS technology
- No post-treatment required
- High torque at low speeds
- Reliable performance for industrial use
- Compact design for easy integration
- Inline fuel pump for stable performance
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | Z482-E4B |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 9.9 kW @ 3600 rpm |
| Maximum torque / speed *1 | 29.7 Nm @ 2600 rpm |
| Cylinders | 2 |
| Emission | EPA/CARB Tier 4 + EU Stage V |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 67.0 x 68.0 mm (2.64 x 2.68 in) |
| Displacement L (cu.in) | 0.479 L (29.23 cu.in) |
| Aspiration | Naturally aspirated |
| Aftertreatment | No post-treatment required |
| Combustion system | Indirect injection |
| Fuel system | Inline fuel pump |
| Length x width x height mm (in) *2 | 338 x 386 x 564 mm (13.3 x 15.2 x 22.2 in) |
| Dry weight kg (lbs) *3 | 53 kg (117 lbs) |
| Series | Kubota Super Mini Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
