Kubota Z602-E4B
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

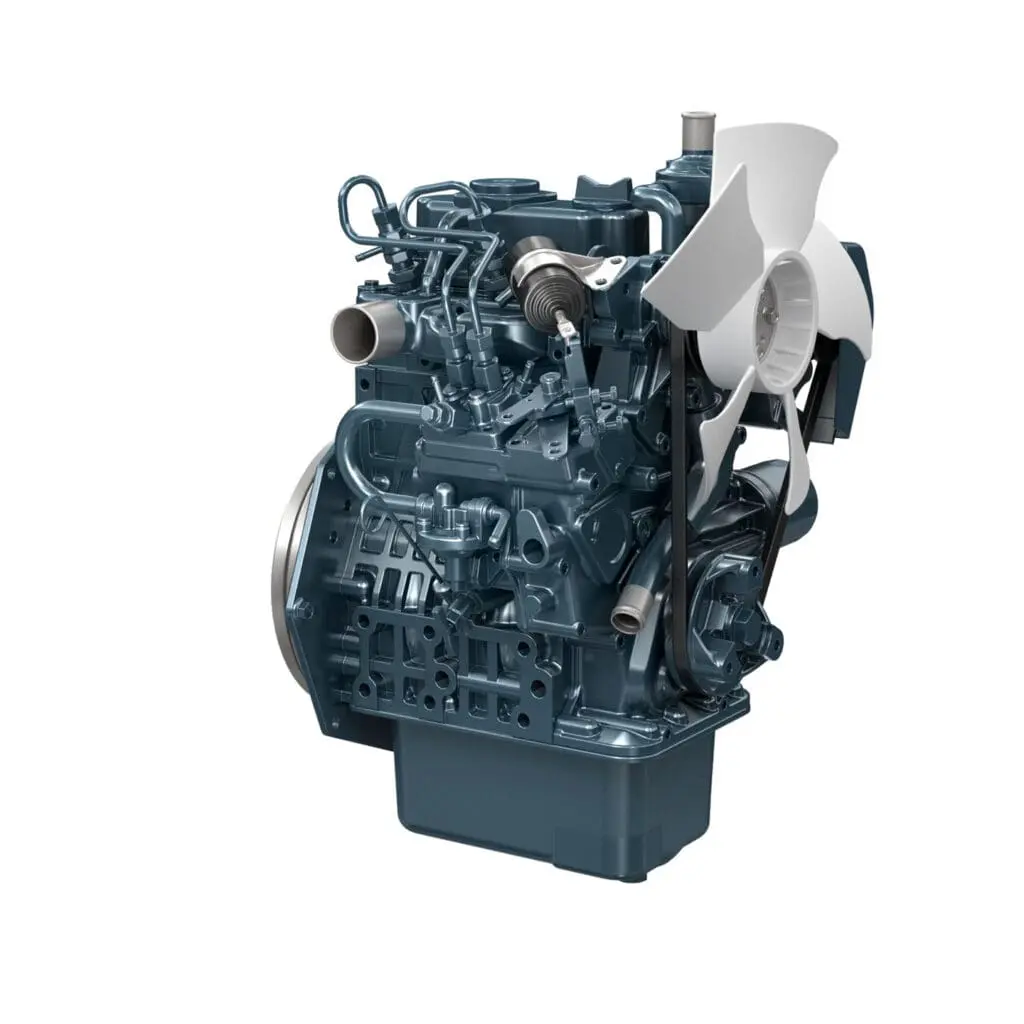

The Kubota Z602-E4B is a powerful and compact 2-cylinder industrial diesel engine from the Kubota Super Mini Series. Its high power level, compact construction and reliable performance make this engine ideal for a variety of industrial applications where efficiency and durability are important.
With maximum power of 12.5 kW at 3,600 rpm and maximum torque of 37.8 Nm, the Z602-E4B delivers excellent performance within a compact footprint. Kubota has increased the displacement compared to the Z482 series, while keeping the engine dimensions compact. This creates a powerful engine with high power density and optimum uptime.
The engine meets EPA/CARB Tier 4 and EU Stage V emissions standards and features Kubota’s TVCS combustion technology for efficient combustion, low emissions and low fuel consumption. In addition, the special MoS2-coated pistons and smart design reduce vibration and lower noise levels.
Kubota Z602-E4B
- Meets EU Stage V emissions standards
- High power density in compact size
- Quiet and low-vibration design
- Low fuel consumption thanks to TVCS technology
- No post-treatment required
- High torque at low speeds
- Compact design for easy integration
- Reliable performance for industrial use
- Inline fuel pump for stable fuel supply
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | Z602-E4B |
| Application | Industrial |
| Fuel | Diesel |
| Power *1 | 12.5 kW @ 3600 rpm |
| Maximum torque / speed *1 | 37.8 Nm @ 2600 rpm |
| Cylinders | 2 |
| Emission | EPA/CARB Tier 4 + EU Stage V |
| Type | Vertical water-cooled 4-stroke diesel engine |
| Bore and stroke mm (in) | 72.0 x 73.6 mm (2.83 x 2.90 in) |
| Displacement L (cu.in) | 0.599 L (36.55 cu.in) |
| Aspiration | Naturally aspirated |
| Aftertreatment | No |
| Combustion system | Indirect injection |
| Fuel system | Inline fuel pump |
| Length x width x height mm (in) *2 | 351 x 401 x 544 mm (13.8 x 15.8 x 21.4 in) |
| Dry weight kg (lbs) *3 | 57 kg (120 lbs) |
| Series | Kubota Super Mini Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
