WG3800-GL-E3 (65kW)
Warranty: 2 years or 2,000 hours
Support: by Prins Engineers

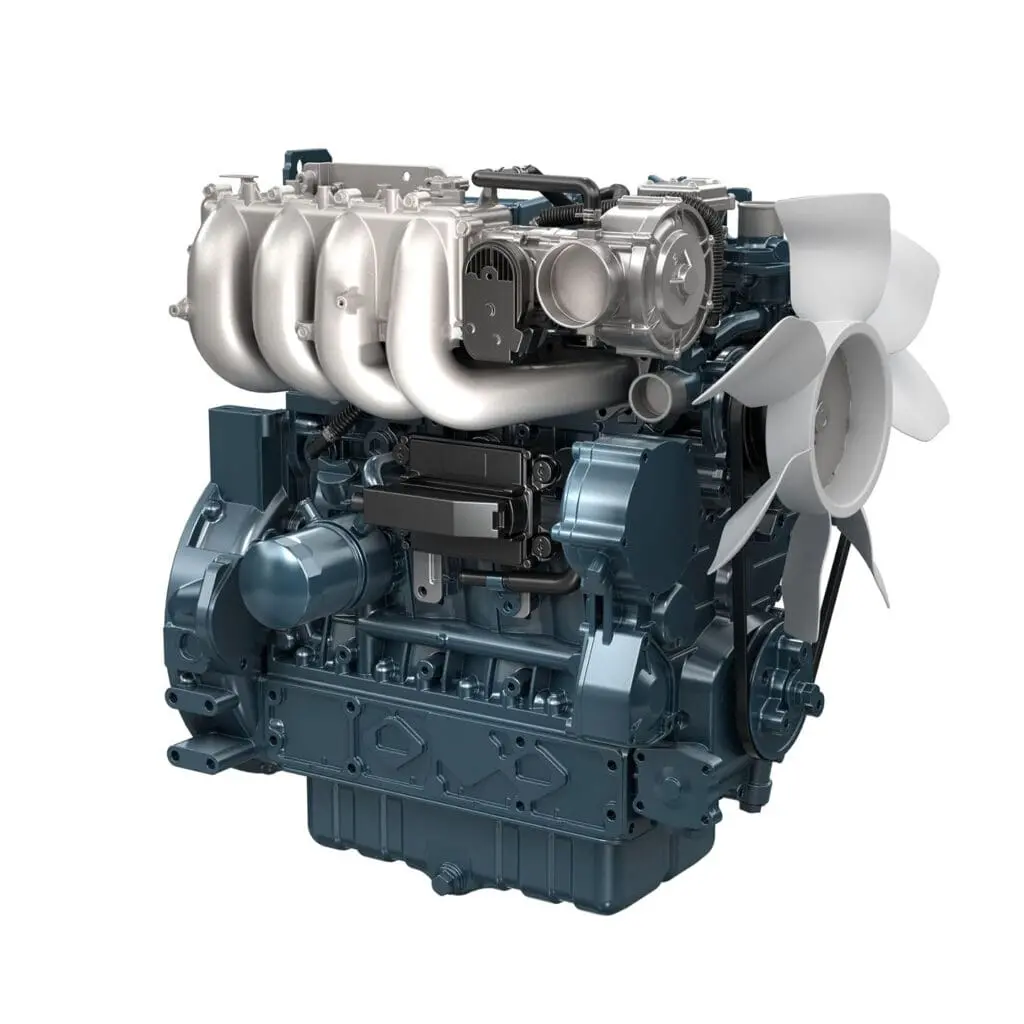

The Kubota WG3800-GL-E3 gasoline is a powerful 4-cylinder industrial gasoline engine from the Kubota WG Series. This vertical water-cooled 4-stroke spark ignited engine is designed for applications where high power, low emissions and reliable performance are important.
In this gasoline version, the WG3800-GL-E3 delivers 65.0 kW @ 2600 rpm and maximum torque of 256.0 Nm @ 1400 rpm. The engine has a displacement of 3.769 L, is naturally aspirated and features a three-way catalytic converter for emission reduction.
In this version, the Kubota WG3800-GL-E3 meets EPA Tier 2 and CARB Tier 3 emissions standards. With its rugged construction, high torque and reliable Kubota technology, this engine is suitable for heavy-duty industrial applications where gasoline is desired as fuel.
WG3800-GL-E3 (65 kW)
- Suitable for gasoline / gasoline
- Powerful 4-cylinder industrial gas engine
- Power of 65.0 kW @ 2600 rpm
- High torque of 256.0 Nm @ 1400 rpm
- Three-way catalyst for emission reduction
- Naturally aspirated engine
- Large displacement of 3,769 L
- Vertical water-cooled 4-stroke spark ignited engine
- Suitable for heavy industrial applications
- High quality Kubota build quality
| Brand | Kubota |
|---|---|
| Model | WG3800-GL-E3 |
| Application | Industrial |
| Fuel | Gasoline |
| Power *1 | 65.0 kW @ 2600 rpm |
| Maximum torque / speed *1 | 256.0 Nm @ 1400 rpm |
| Cylinders | 4 |
| Emission | EPA Tier 2 + CARB Tier 3 |
| Type | Vertical water-cooled 4-stroke spark ignited engine |
| Bore and stroke mm (in) | 100.0 x 120.0 mm (3.937 x 4.724 in) |
| Displacement L (cu.in) | 3.769 L (230.0 cu.in) |
| Aspiration | Naturally aspirated |
| Aftertreatment | Three-way catalytic converter |
| Combustion system | Spark ignited |
| Fuel system | Gasoline |
| Length x width x height mm (in) *2 | 700 x 579 x 799 mm (27.6 x 22.8 x 31.5 in) |
| Dry weight kg (lbs) *3 | 288 kg (635 lbs) |
| Series | Kubota WG Series |
Specifications are subject to change without notice.
Dimensions and dry weight are based on Kubota’s standard specifications.
Dimensions and weight are subject to final specifications.
*1: SAE J1995 gross intermittent
*2: Excludes cooling fan and aftertreatment unit
*3: Excludes cooling fan and includes aftertreatment unit on engine
